Window Channel Slide 13"

Question

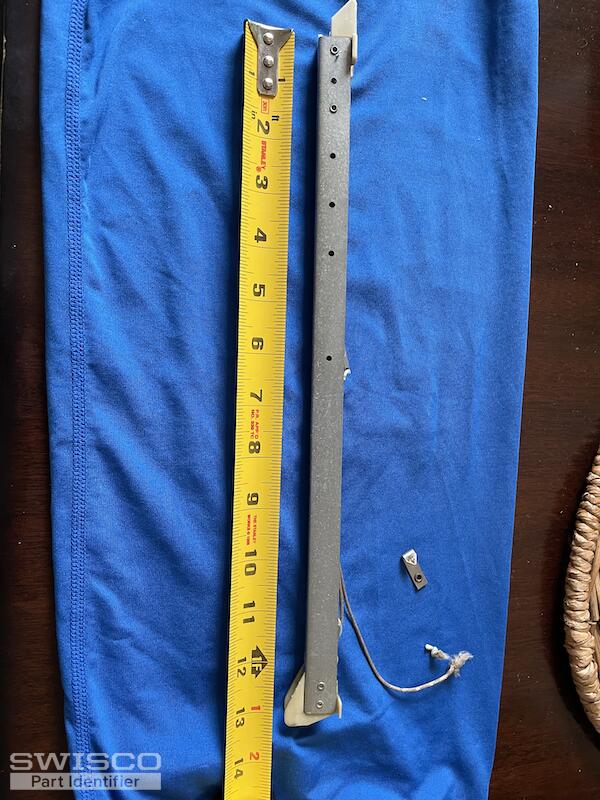

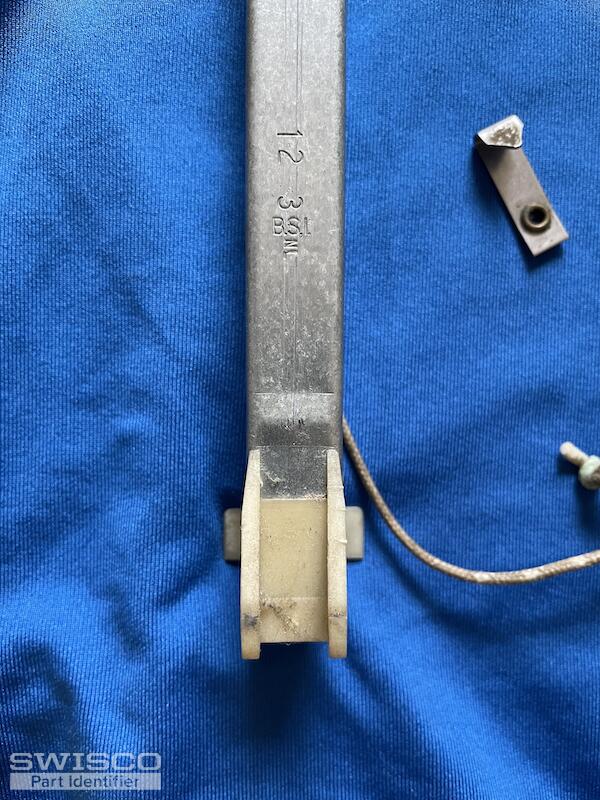

I am looking to replace a Window Channel Slide. It is 13" long and has stamped numbers 12 3 BSL NL and need help identifying the part I need.

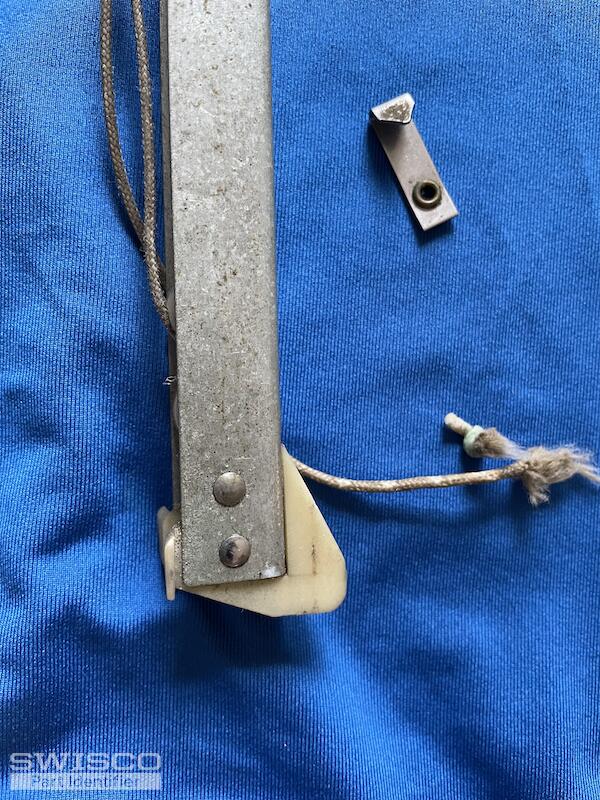

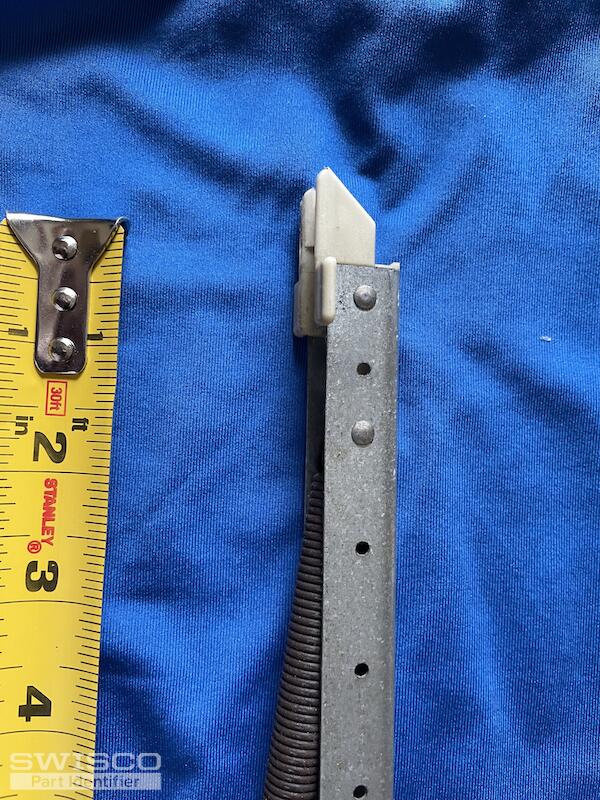

Attached are the photos.

Thanks for your time

William

Emily · Accepted Answer

Hi, William.

It looks like you could have either our S380-13 or S385-13 channel balance, depending on the depth of your bottom shoe. The Series 380 comes attached with a 1" deep shoe and the Series 385 comes attached with a 1-3/32" shoe. Take a look at the image below to determine which one matches what you have now. You will also need the 1230 spring strength option.

Comparison of the S378, S380 and S385 balance shoes.
