Window Channel balance

Question

This piece is off a PLYGem Window Single Hung....Numbers on piece are 29 5 AV CMC 2.

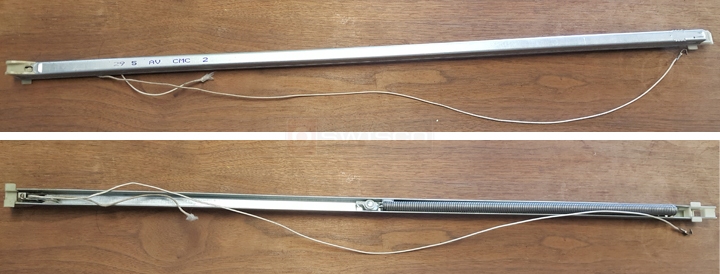

User submitted photos of a window balance.

Tom · Accepted Answer

Let's start with what we do know: you have a 30" channel balance with a 2950 stamp option. To determine if you need an S380-30 or and S385-30, you will need to measure the bottom shoe, as shown below:

Comparison of the S378, S380 and S385 balance shoes.

If you measure the shoe from "heel to toe" as shown in the picture above, that is the only difference between the two Series. If, as in the picture, your shoe measures 1-3/32", then you have the S385-30. If, instead, the shoe measures 1", you have the S380-30. Measure carefully before making a purchase.
