Window Channels

A home owner from Davie, Florida 33331 says:
March 25, 2023

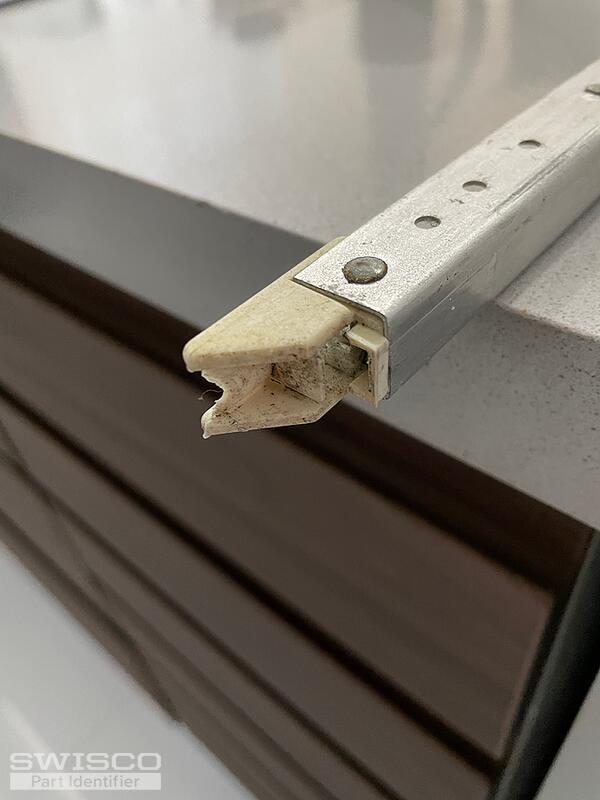

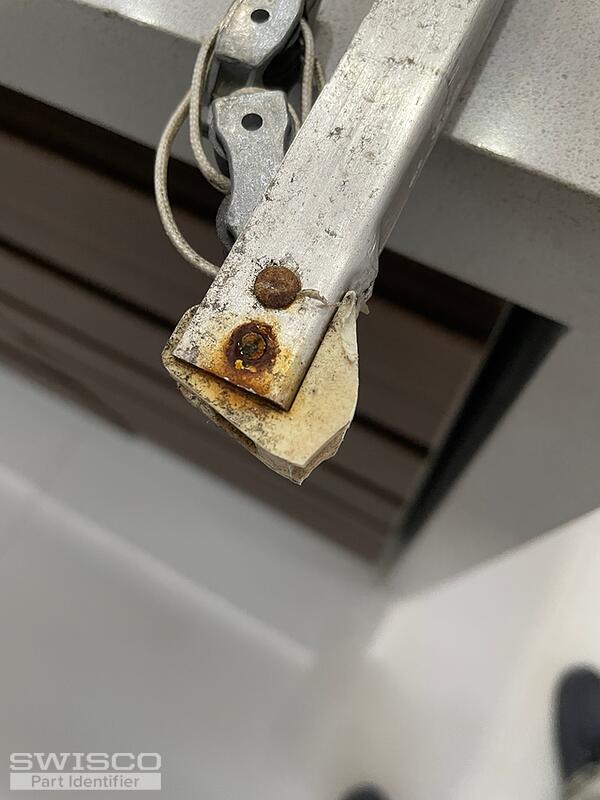

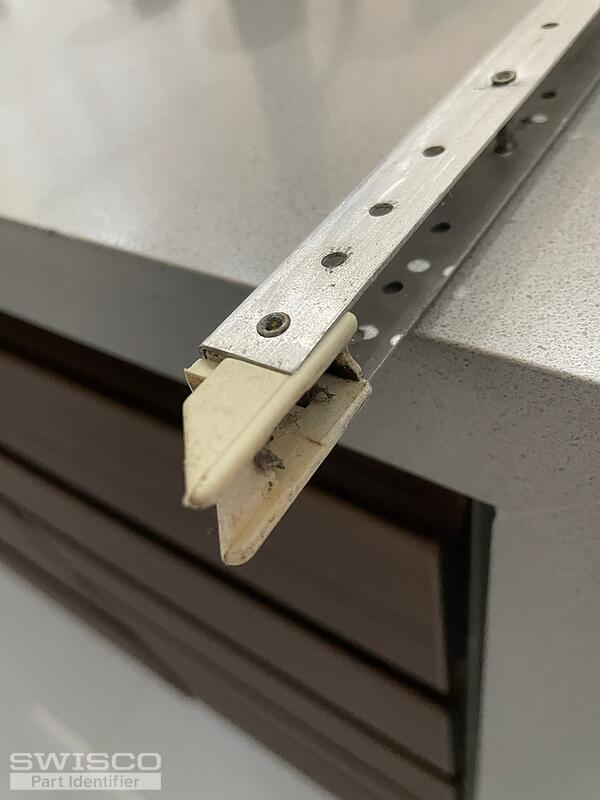

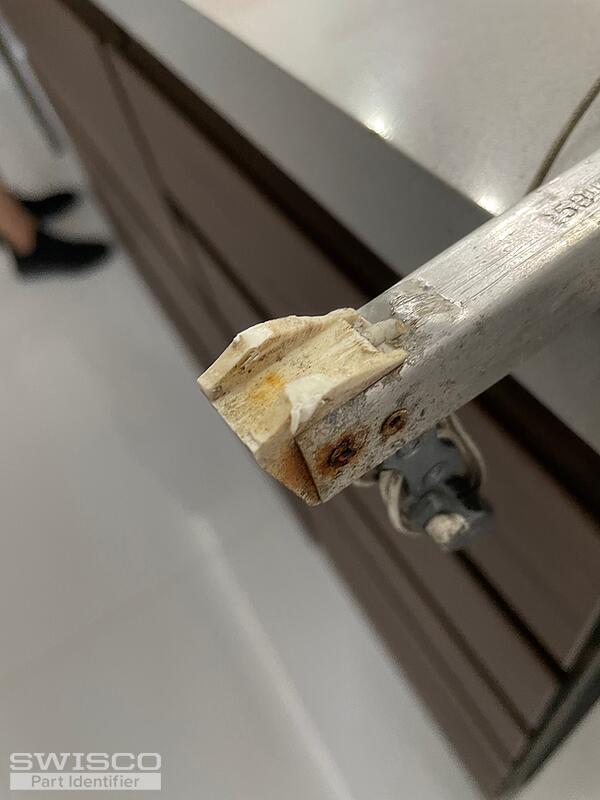

Channel is 1/2" wide and 26" in length. It are easily 27 years old. I'm not 100% sure but I think the plastic parts are 19-002 and 15-002 but I'd like confirmation before ordering a bunch of these to replace in my house.
Thumbnail of the uploaded file named IMG_7326.png
Thumbnail of the uploaded file named IMG_7325.png
Thumbnail of the uploaded file named IMG_7324.png
Thumbnail of the uploaded file named IMG_7323.png
Profile picture of Casey
Casey from SWISCO responded:
March 27, 2023

Hello,

If your bottom fitting has the same 1" depth as the 15-002, then you would need the S351-26 channel balance for your repair. It's hard to make out but it looks like the balance in your photo may be stamped with 25B. If so, you will need 2520 strength options for your replacement balances. Take a look and thanks for posting!

Detail of 15-002
Detail of 15-002
Channel Balance Top Guide
Channel Balance Top Guide
19-002
$0.74
Channel Balance Shoe, 1" Depth
Channel Balance Shoe, 1" Depth
15-002
$0.74
26" Series 351 Channel Balance
26" Series 351 Channel Balance
S351-26
$10.77
