Window Channels and Caps

Contractor from Northern Virginia
I need 3 sets (L & R) channel balances that are stamped: 30 3 CALDWELL KW and the associated vinyl corner-top caps that hold them into the side frame.
4 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to look into this for you but we'll need a bit more information to narrow down your options. If you could show us the connecting point between the spring and pulley inside the metal channel, that would help us confirm if our stock balances could work for your repair or if they would need to be special ordered.

As for the top sash guides, take a look and compare the specifications of the 18-124P to yours. Thank you!

Alternate view of 18-124p
Alternate view of 18-124p

Alternate view of 18-124p
Alternate view of 18-124p

Alternate view of 18-124p
Alternate view of 18-124p

Contractor from Northern Virginia

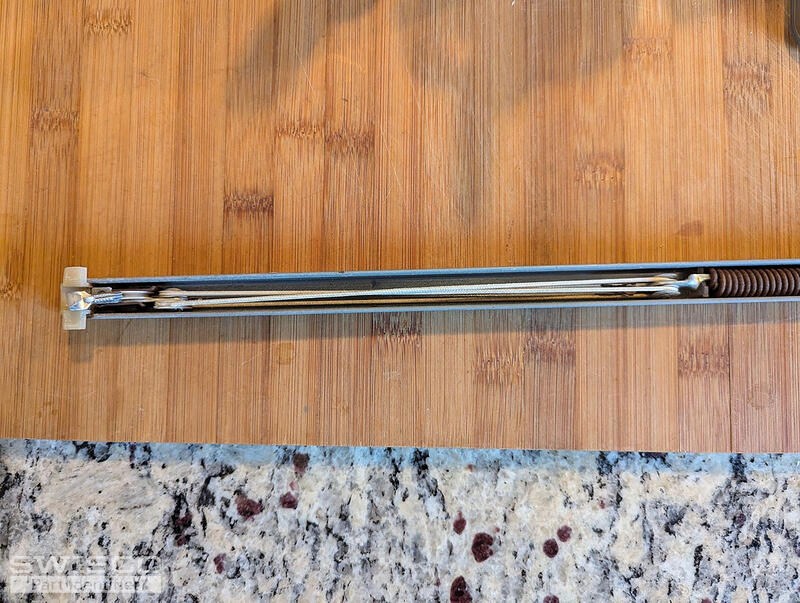

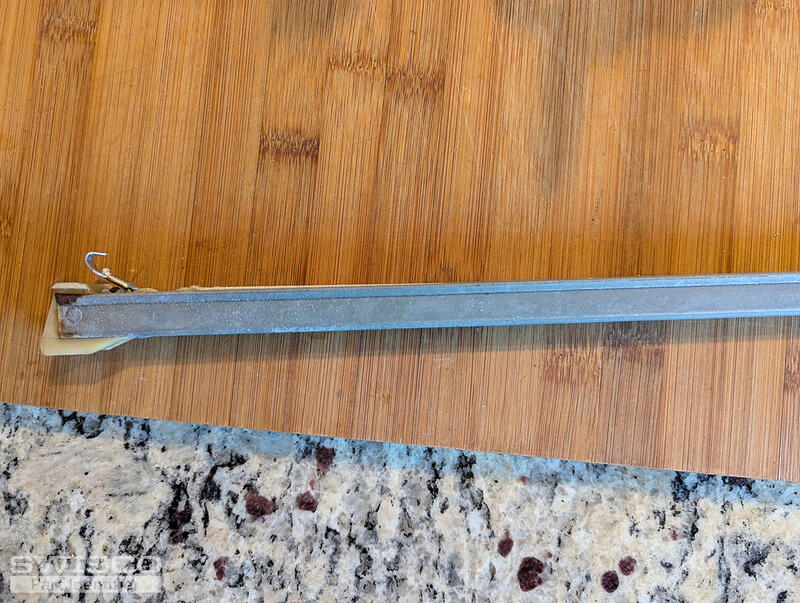

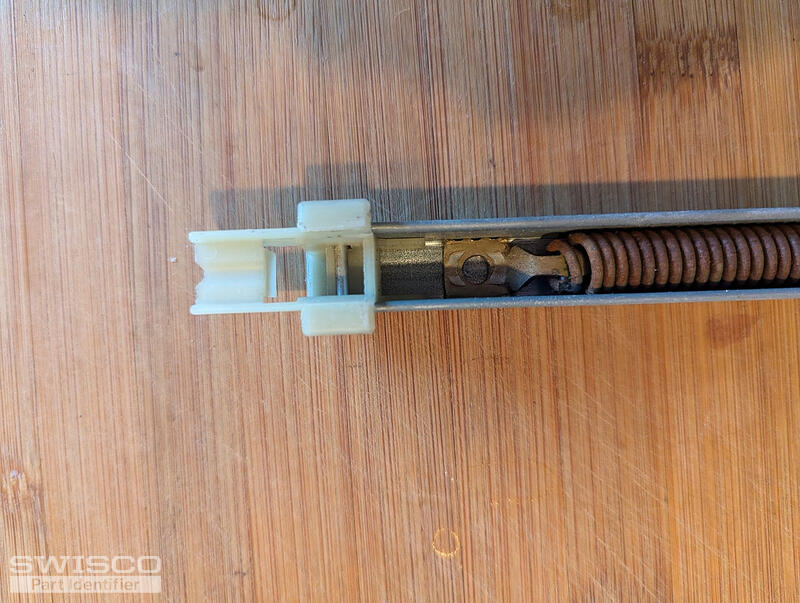

Yes, those top caps will work! Attached are the pictures you requested for the balance spring and pullies.
3 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

With this combination of attachments, you could have either the S380-31 or S385-31 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need 3030 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.

Contractor from Northern Virginia
OK, the S380 with 15-005 it is! I will order for my customer.
Thank you so very much!
Happy New Year!
Chris
Casey
Casey from SWISCO
SWISCO
Expert

Great! We'll be here if you need anything else.
