Window Coil

Question

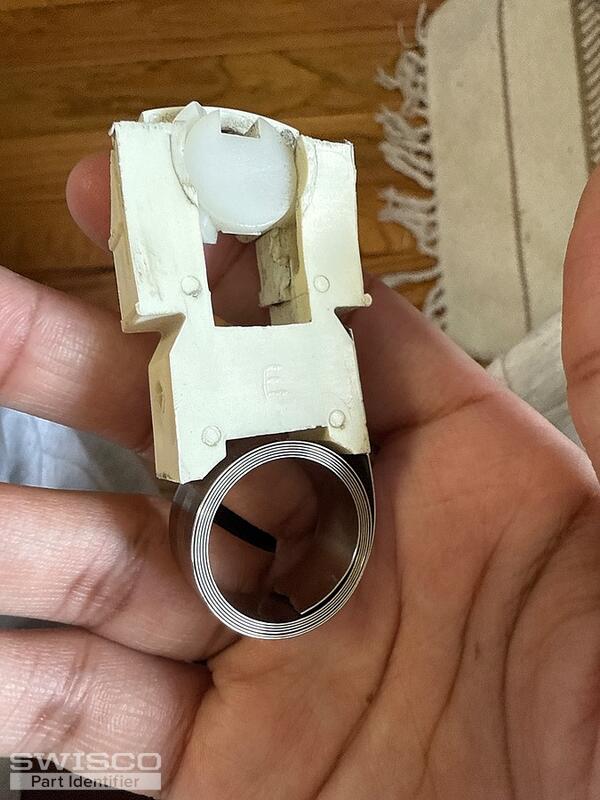

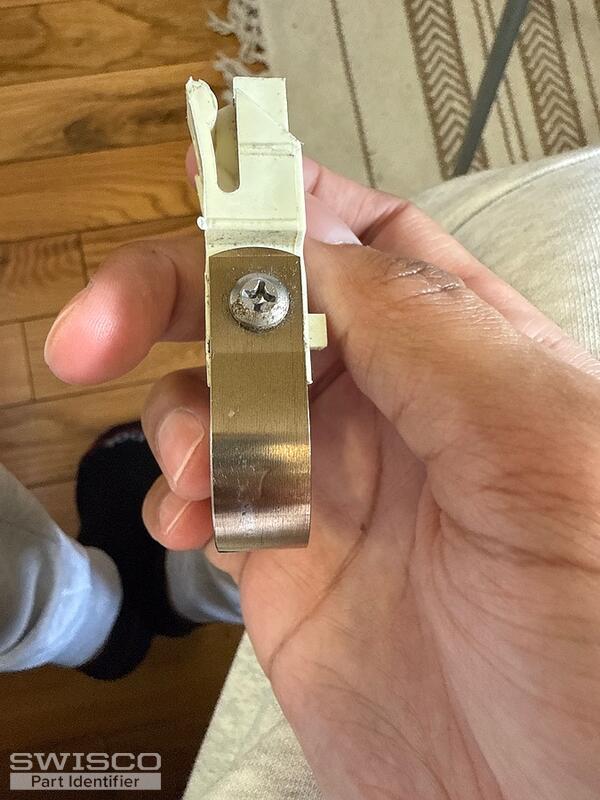

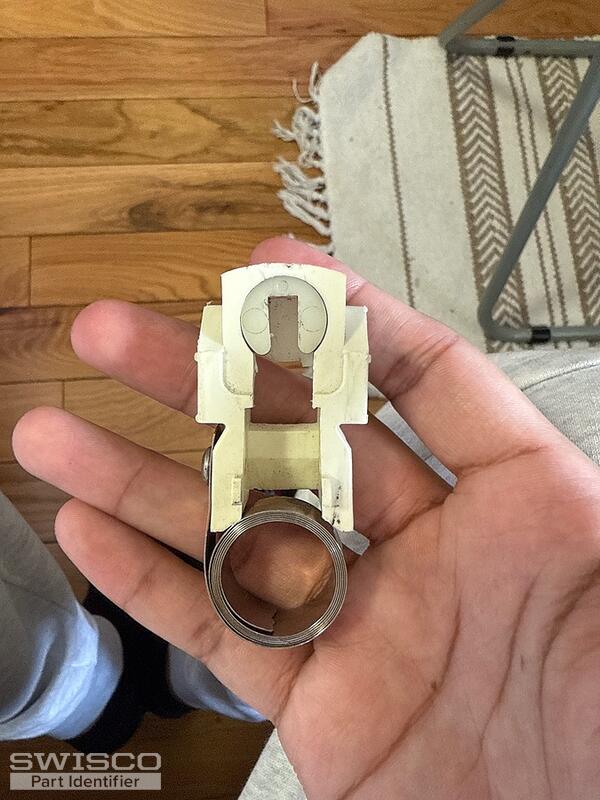

Hi im trying to identified this piece because it broke and my window wont stay up not sure what is the right coil for it and piece all i see is the letter E on the plastic part and the number 7 on the coil

Lauren · Accepted Answer

Hello, thank you for posting,

Please review the style and dimensions of the 15-180 pivot shoe that is compatible with the Series 190 coil springs. Compare to your original to confirm a good fit!

Alternate image for 15-180

Based on the 7 stamp, see the S190740 coil spring. Together with the other side, the total sash weight should be 14 pounds. Also see the 15-182 bushing and 15-186 balance clip.

Let us know if you have any additional questions!
