Window Coil Spring and Parts

Question

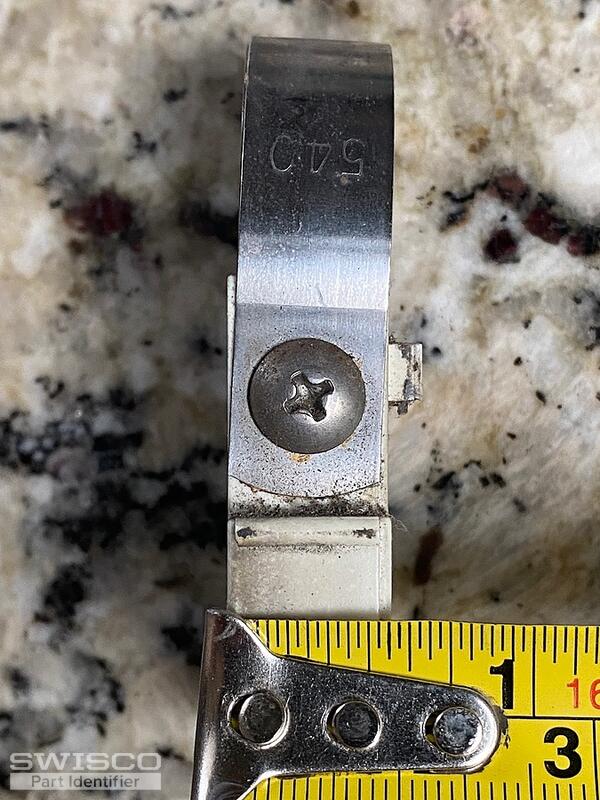

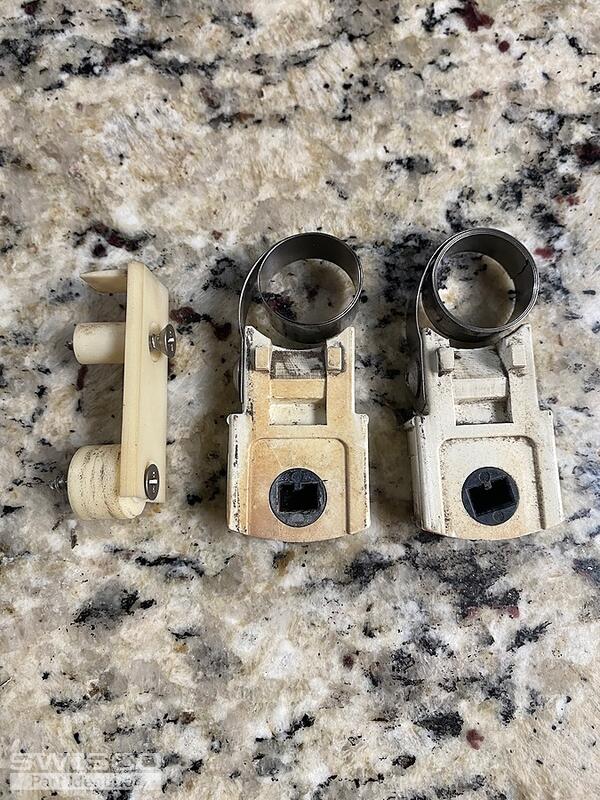

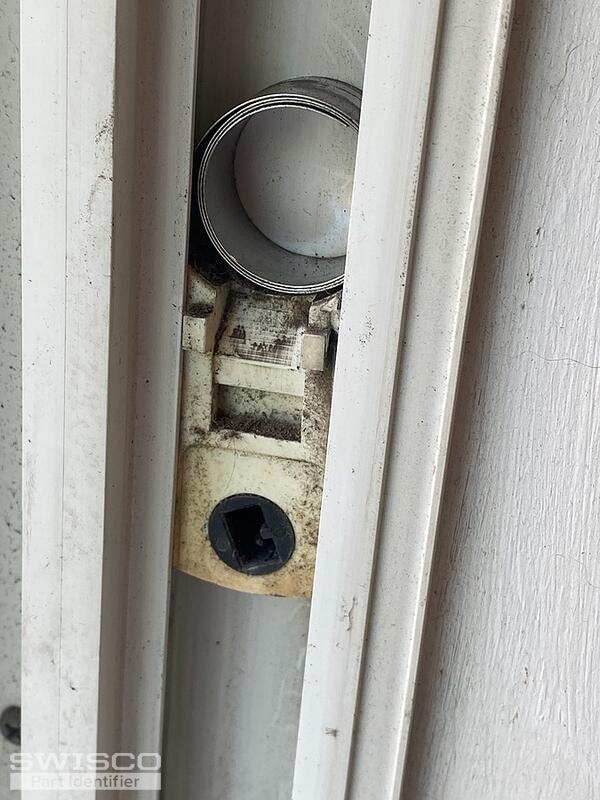

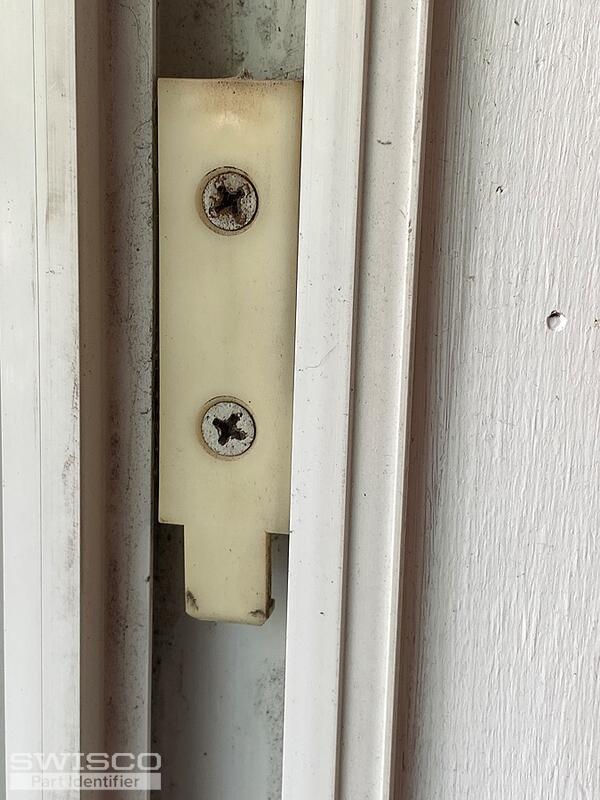

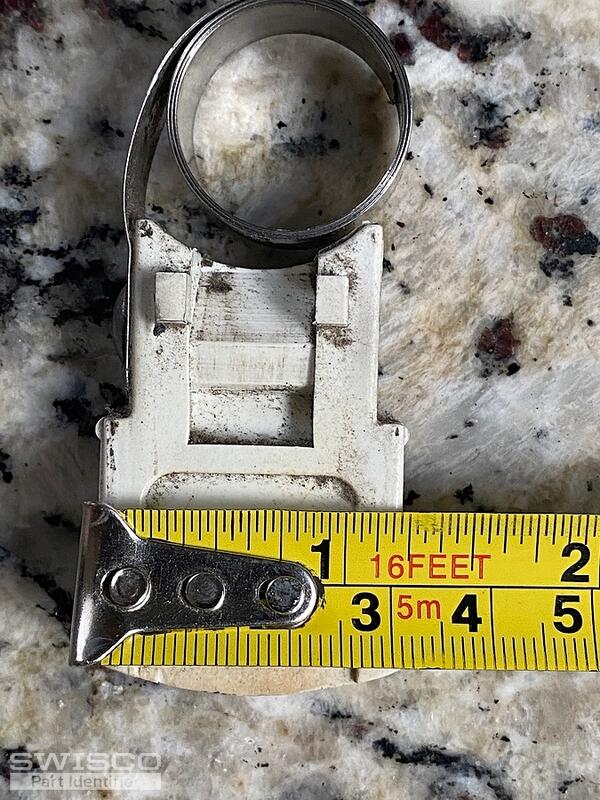

Hi. Looking to replace broken parts on an old window. Coil spring is stamped with the #540. Any help would be greatly appreciated. No other markings are visible anywhere.

Lauren · Accepted Answer

Hello, thank you for posting,

Your balance assembly resembles an older version of the 15-180 pivot shoe that is compatible with the Series 190 coil springs. Please review the overall style and dimensions to confirm a good fit!

For a coil stamped with #540, please review the S190-540 coil spring that can support 5 pounds of weight. This is added together with the other coils to support the whole weight of the sash. Let us know if you have any additional questions!

Alternate image for 15-180
