Window Coil has come off

A quick learner from Canada says:
January 4, 2020

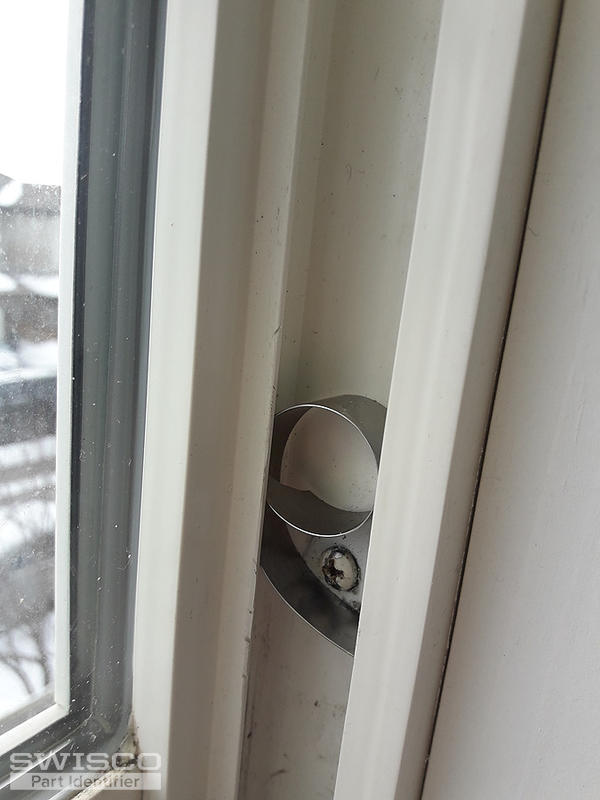

Can you tell me what part I need to buy? The window coil has come off the part and no longer slides. The Part number is 5,353,543 Please see photos

Thumbnail of the uploaded file named -536399196_20200104_133751_3462724_resized.jpg
Thumbnail of the uploaded file named -557640179_20200104_134509_5279207_resized.jpg
Thumbnail of the uploaded file named -558563700_20200104_134533_3275437_resized.jpg
Thumbnail of the uploaded file named -559487221_20200104_134538_3400805_resized.jpg
Thumbnail of the uploaded file named -561334263_20200104_134630_3564241_resized.jpg
Profile picture of Paul
Paul from SWISCO responded:
January 6, 2020

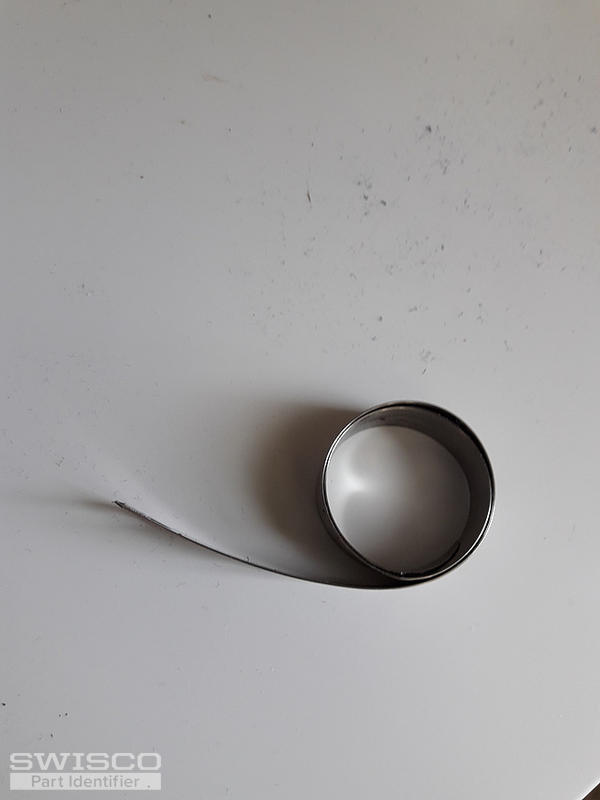

Thank you for sharing your photos with us. Our 15-087 coil housing looks like on the pieces you're showing us, along with a pivot cam on top, like our 15-086. In one of your photos where you show the coil spring, I see the number "4". Take a look at our S180-4 coil spring. I was not able to see any other numbers in any of the other coils you're showing us. You will need to see if there different numbers on them to help determine the correct coil spring. Have a look at all the parts mentioned and get back to us with any other questions you may have.
A quick learner from Canada says:
January 6, 2020
Both Coil Springs have the numbers 4 45 W on them. Both are broken so I assume I will need to buy two of those.

Also two Tandem coil housing and two coil housing pivots.

Does that sound about right? Thanks for your help.
Profile picture of Paul
Paul from SWISCO responded:
January 6, 2020

Yes, it does. Sounds like you're ready to go. Best of luck and let us know how your replacements work out for you.
