Contractor from Indianapolis

Jul 13, 2022 8:22 am

Good morning!

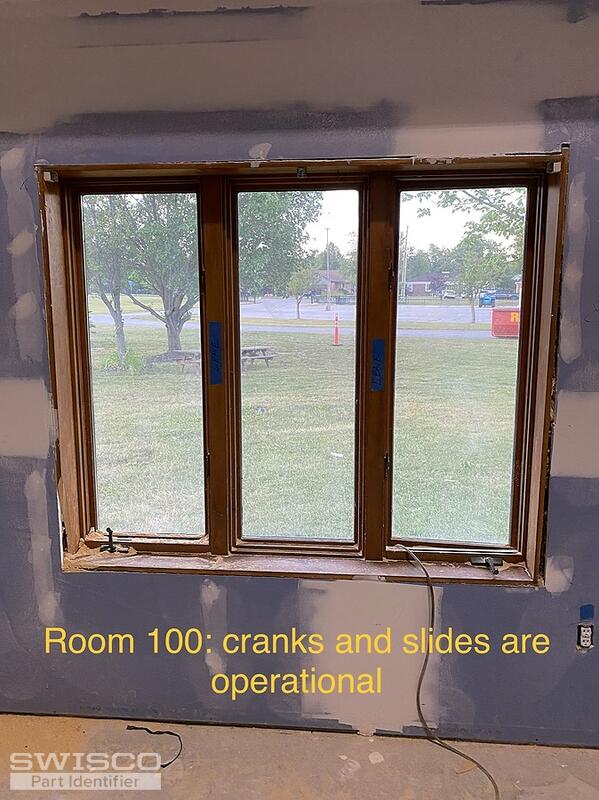

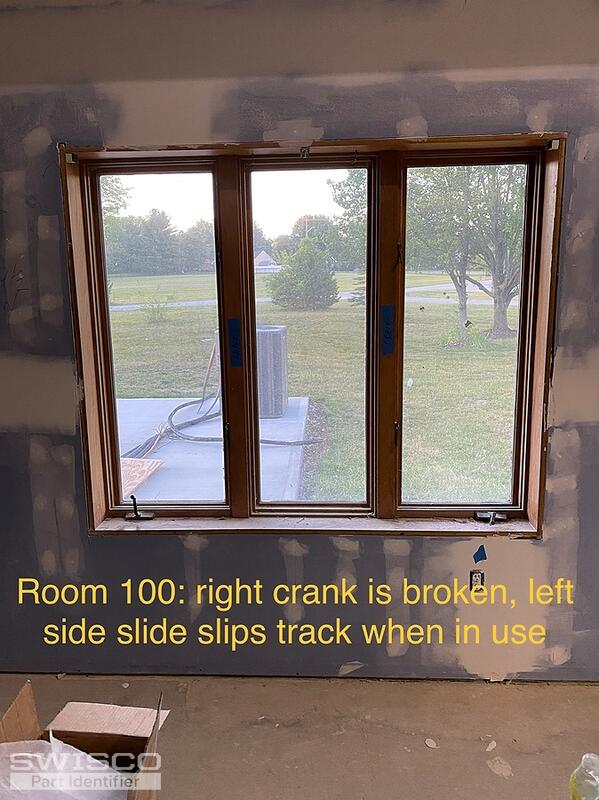

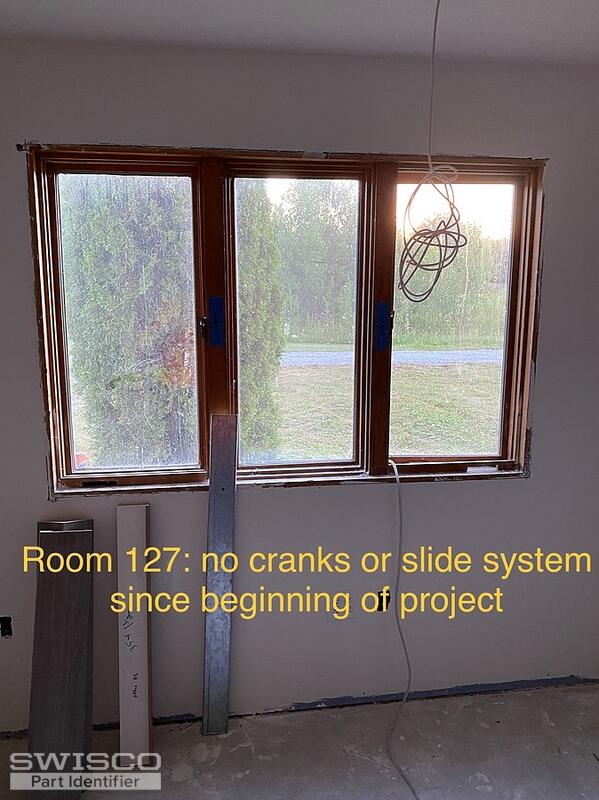

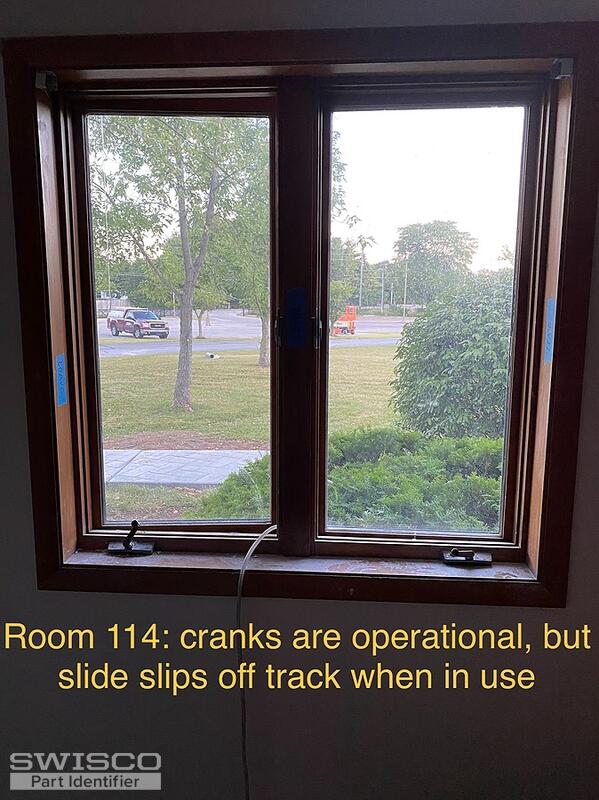

We are renovating an old church and they have Garadco parts. What do I need to do to replace this, or what items do I need?

Any help would be appreciated!

Thanks!

4 user uploaded images

6 Replies

Casey from SWISCO

Jul 18, 2022 11:41 am

Hello,

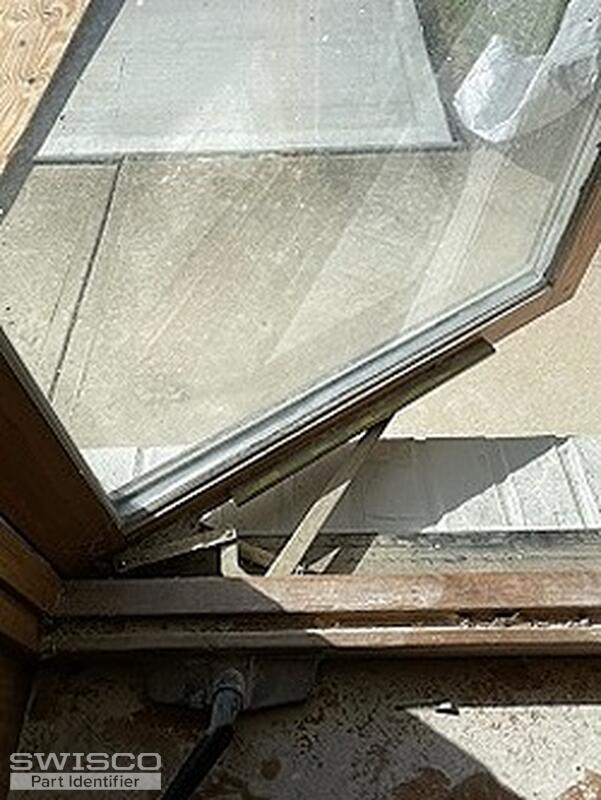

We'd be happy to look into this for you but we would need you to open one of the windows and show us the entire operator assembly, including the arms that move the sash, to compare to our inventory. Please also confirm if these windows use the same hardware. Thank you.

Contractor from Indianapolis

Jul 18, 2022 11:51 am

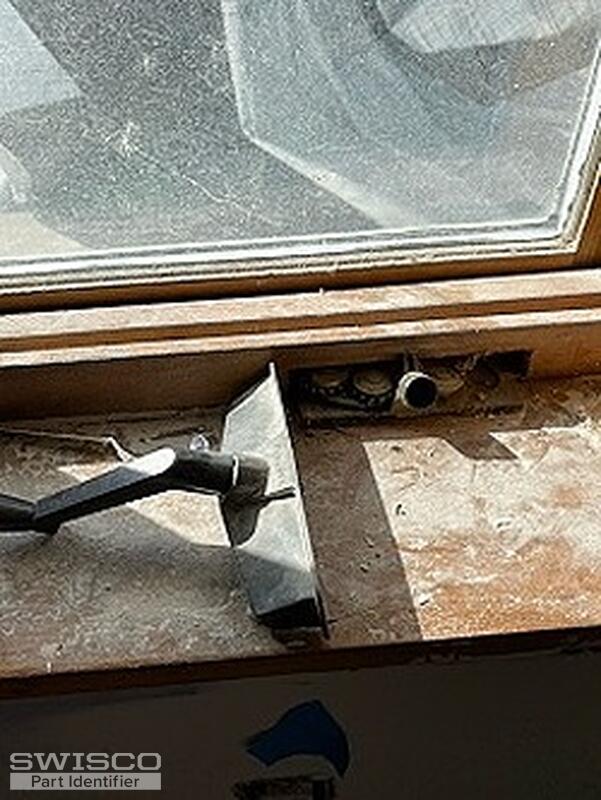

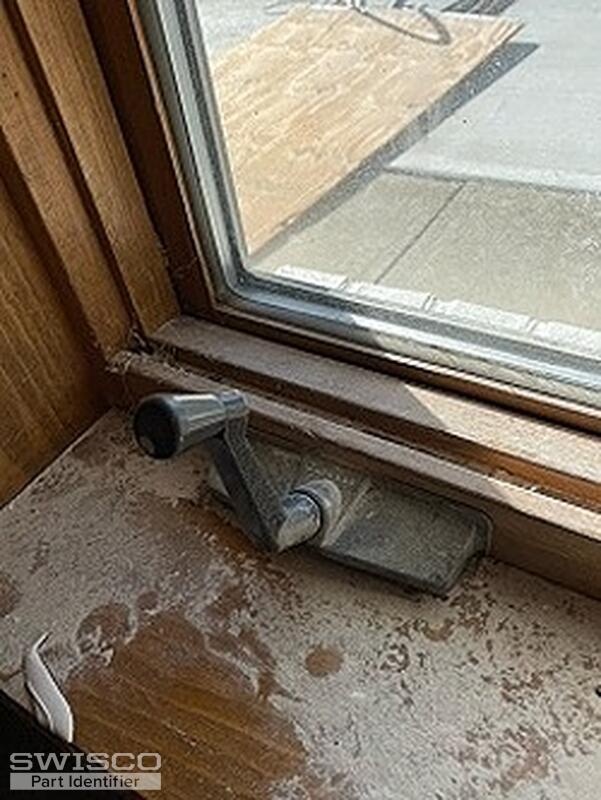

Color would be black on the cranks, cover plate base width is 5" wide with a height of 1-1/4".

The overall crank length is 3-3/4" from base to tip of handle.

Casey from SWISCO

Jul 19, 2022 8:07 am

Thank you for sending over your dimensions. We will also need to see the detailed photos that we requested before we can recommend any possible replacements. Thank you.

Quick Learner

Jul 19, 2022 9:16 am

Good morning! Below is my thread that I have on the website, I am unable to post any more pictures that you are requesting as the page is not working. If you scroll all the way down it will have the updated pictures.

Thanks!

3 user uploaded images

Casey from SWISCO

Jul 19, 2022 10:21 am

I'm sorry to hear that you were having trouble uploading your photos. Now that we have them, take a look and compare the dimensions of the EntryGard and Caradco operators that we've related for you to the assembly in your photos. The key difference between the two is the length of the shorter link arm. Note that both operator pairs are compatible with the 39-107FK handle and cover kit.

Dimensions for 39-031

Dimensions for 39-155
