Window Crank Assembly

Home Owner from MI

Oct 4, 2017 11:29 am

I have several windows with non functioning window cranks. I believe they are Eagle windows. I have attached a photo of one of them. I watched your video regarding replacement. What i need is either replacement gear or complete assembly.

7 Replies

Casey from SWISCO

Oct 9, 2017 3:11 pm

Before I can make any recommendations to you, I would need to see some photos of the part removed from the window.

Quick Learner from commerce township

Oct 9, 2017 3:36 pm

Hi Manuela, The only other part involved is the window crank. The turn gear goes into the hole in the middle of the assembly. Or perhaps i am not understanding the question.

Tom from SWISCO

Oct 11, 2017 11:27 am

The assembly consists of a gear box (shown), a spindle (shown), a handle that attaches to the spindle (not shown, but we don't need to see it), and one or more arms that attach to the gears (not shown; this is what we need to see).

We need to see the gear box and the arms in the same photo. You also have a hinge mechanism that sits beneath the arms, which is separate from the operator. You only need photos of the arms that attach to the gears.

Quick Learner from commerce township mi

Oct 11, 2017 11:51 am

ok will forward a new photograph when i get home. Thanks.
Thanks Ben.

Quick Learner from MI

Oct 12, 2017 10:01 am

I hope the new photos help

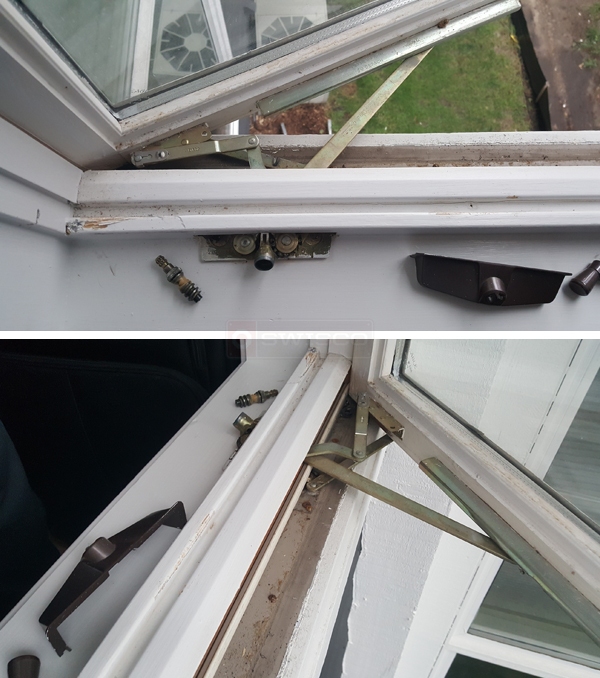

User submitted photos of a window operator.

Casey from SWISCO

Oct 19, 2017 2:58 pm

These photos sure are very helpful. Thank you for that. See if our 39-031 and 39-032 operator would make good replacements. I suggest you compare your dimensions to ours just to make sure these are a fit.
