Window Crank Assembly, Left and Right Sides

A home owner from Massachusetts says:
May 26, 2020
Looking for the correct window crank assemblies. Not sure if I need the parts shown in the photos marked #4 and
#5.

If the components in photos 4 and 5 cannot not be separated or disconnected without being damaged, then please provide part numbers for all of the components shown in the photos from the CRANK to the CONNECTION at
the WINDOW.

Thank you!
Thumbnail of the uploaded file named #1.png
Thumbnail of the uploaded file named #2.png
Thumbnail of the uploaded file named #3.png

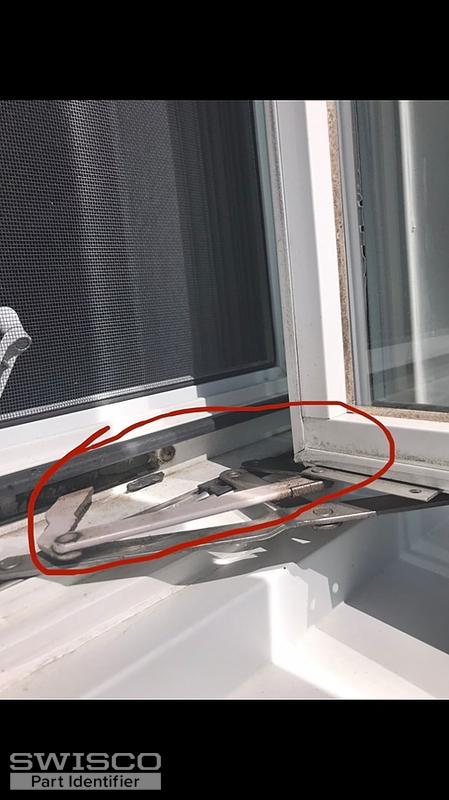

Thumbnail of the uploaded file named #4.jpeg

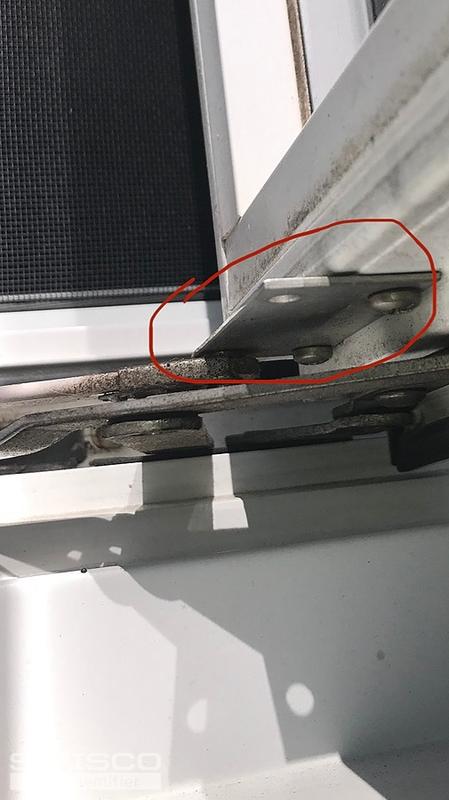

Thumbnail of the uploaded file named #5.jpeg
Profile picture of Tom
Tom from SWISCO responded:
May 29, 2020

Looks like you might need new operators. See our 39-187 and 39-188 to start out. These look very similar to yours in terms of design but look over the details on their product pages to confirm.

You can definitely reuse your old brackets as long as they aren't damaged, which they don't appear to be, but if you wanted new ones anyway then I recommend the 39-513 and 39-514.
A home owner from Massachusetts says:
May 30, 2020
Can I please have the part number for the handle used to open and close the windows?
Profile picture of Tom
Tom from SWISCO responded:
June 1, 2020

Sure! Assuming the operators I recommended match then you can use our 39-114L handle.
Sash Dyad Crank, 5"
Sash Dyad Crank, 5"
39-188
$37.10
Sash Dyad Crank, 5"
Sash Dyad Crank, 5"
39-187
$37.10
Stud Bracket
Stud Bracket
39-514
$4.35
Stud Bracket
Stud Bracket
39-513
$4.35
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
