ACAN Window Hardware

A home owner from Sycamore, Ilinois says:
October 9, 2017

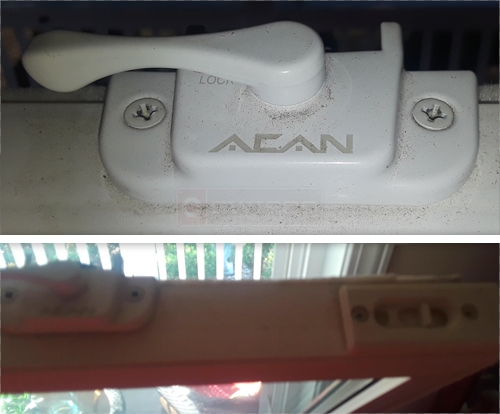

I have three windows that the locking hardware is broken. I need the window locks that have ACAN logo on them and the hardware locks that allow the window to be tilted in for cleaning. I have not been able to find any other information on the windows. Please refer to the attached photos to help identify the parts requested
Window hardware
Profile picture of Paul
Paul from SWISCO responded:
October 13, 2017
Acan has been out of business for some time now, but we do carry replacement parts that could work for your windows. You can use the 26-120 and 26-121 white top tilt latches. For the lock, the hole distance should be 2-1/16" apart. Please check that. Acan used a 7/16" setback in some of their windows, so use a 90-161 for those, or for the other windows with 11/16" setbacks, use 90-278. Measure carefully. The locks won't have the aligners like yours, but they should work.
LH Top Tilt Latch, 2-1/8"
LH Top Tilt Latch, 2-1/8"
26-120
$2.43
RH Top Tilt Latch, 2-1/8"
RH Top Tilt Latch, 2-1/8"
26-121
$2.43
Lock & Keeper, 2-1/16"
Lock & Keeper, 2-1/16"
90-278
$3.49
Window Lock & Keeper, 2-1/16"
Window Lock & Keeper, 2-1/16"
90-161
$8.92
