Window Hardware Order

A home owner from Florida says:

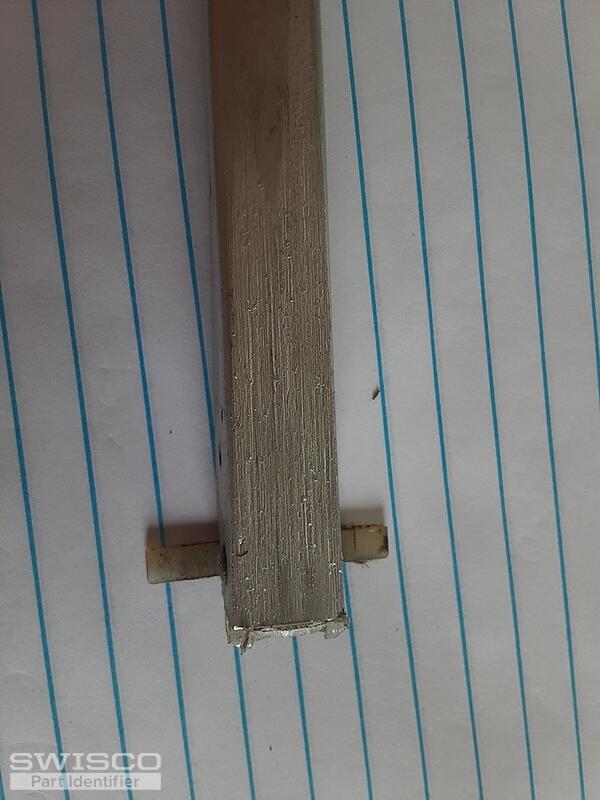

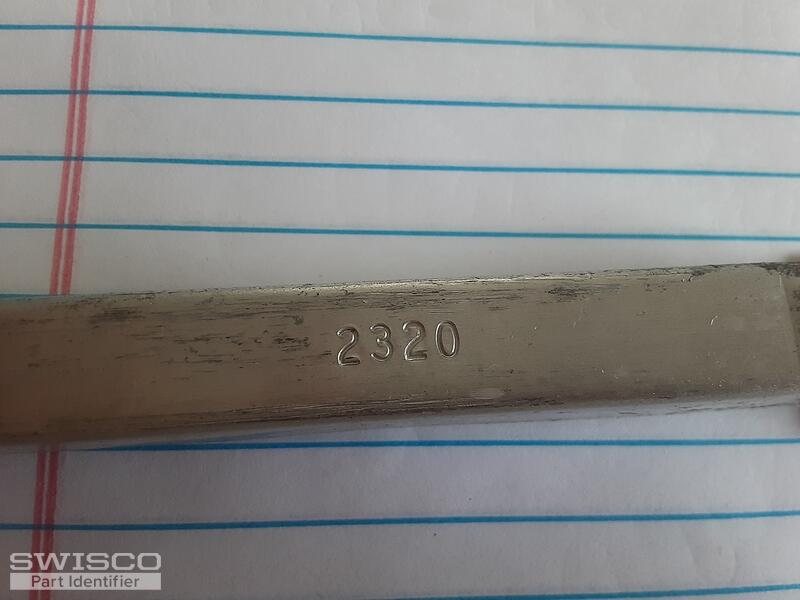

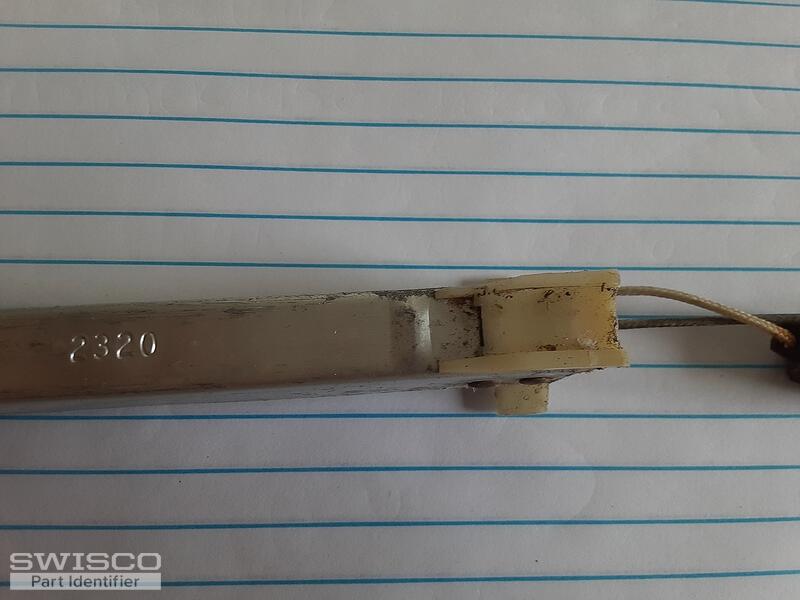

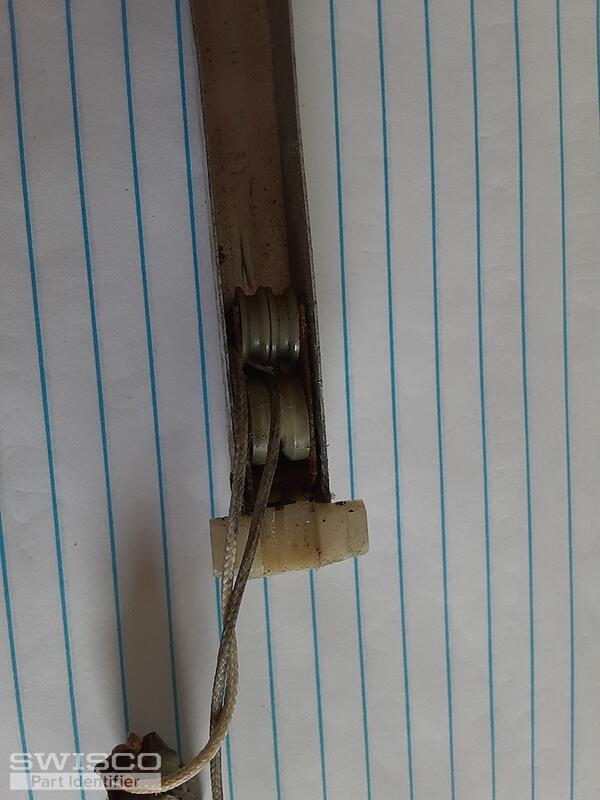

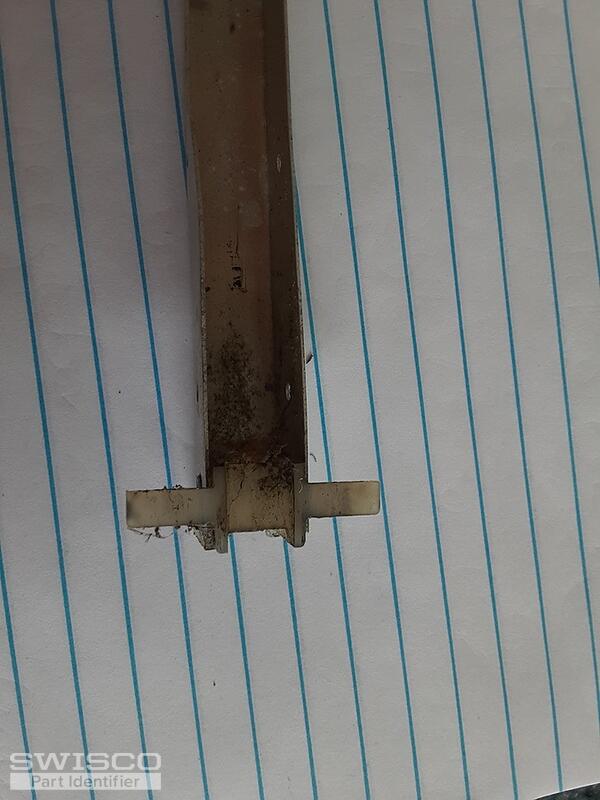

The numbers on the hardware is 2320. I am looking to order 2 of these.
Thumbnail of the uploaded file named 20211209_090524.jpg
Thumbnail of the uploaded file named 20211209_090528.jpg
Thumbnail of the uploaded file named 20211209_090535.jpg
Thumbnail of the uploaded file named 20211209_090547.jpg
Thumbnail of the uploaded file named 20211209_090553.jpg
Profile picture of Tom
Tom from SWISCO responded:

We should be able to supply this balance, but it will have to be a custom order due to its configuration. The key here is the top fitting, which matches our 19-037. This doesn't come on any of our stock balances so it will have to be custom.

Before we go any further, can you confirm the depth of the bottom fitting? The diagram below will show you what I mean.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A landlord from Florida says:
More like 7/8", but it may have been worn down from some use. But in Florida, most people don't open their windows.

I probably could fix what I got with 19-037, a new string and clip, 10 pound spring, rivet kit and upper pulley.

One of my balance has a broken spring and the other has a broken spring and missing the clip.
Profile picture of Tom
Tom from SWISCO responded:

Unfortunately it's not possible to buy the spring or pulley system. Once those break, you need an all new balance.

We do sell a 7/8" shoe, the 15-029, but you are correct when you say that your shoe may have worn down over time. It's up to you what you want to go with, but note that custom balances are non-refundable. I recommend that you triple check your measurement just to be 100% sure.

Once you've made a decision, let me know what shoe you want to go with and we can get the ball rolling.

A landlord from Florida says:
I -do believe they are the 7/8" shoe..
so i would like

2 balances 17 10 with 7/8 shoe and the 19-037 top channel balance top
2 balances 23 20 with 7/8 shoe and the 19-037 top channel balance top

5 19-037 channel balance top
1 rivet tool 75-075
10 rivets 3/32 x 5/8 62-005


How doe we place this order
Profile picture of Tom
Tom from SWISCO responded:

Perfect, thanks for confirming. I will email you two purchase link and prices quotes that will allow you to add the two balance sizes to your cart. From there, you may continue shopping as normal for everything else you need, such as the rivets, rivet tool, and extra balance tops.

Please let me know if you had any other questions.
