Hello! Looks like you need new tilt latches, a lock, and a keeper. We should be able to help with all three, but I do need some additional information in some cases.

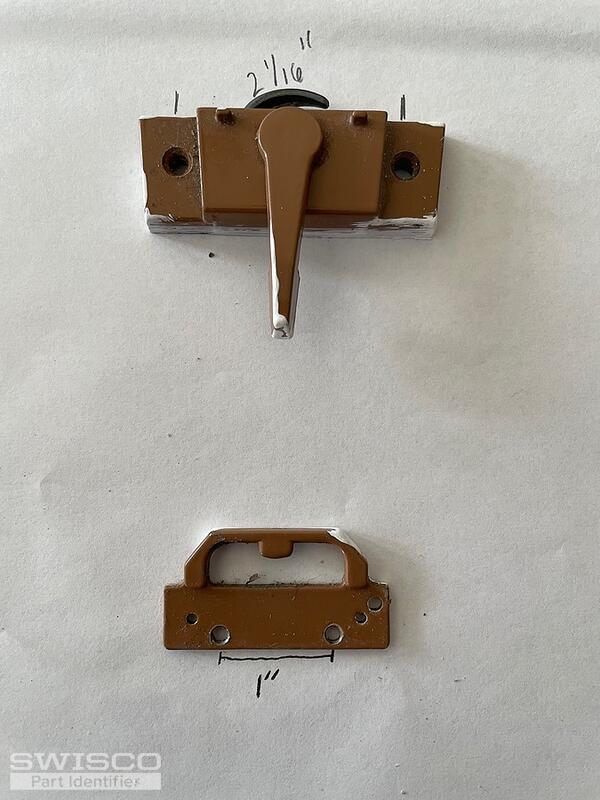

Can you tell me the distance between the two installation holes, center-to-center, for the lock and the keeper? Written measurements would be preferred. For the lock they should be either 2-1/14" or 2-1/16", while the keeper I'm thinking is going to be more like 1".

I'd also like to see a photo of the keeper removed, if possible. Much of it is obscured currently and I'll need a better idea of how it's designed.

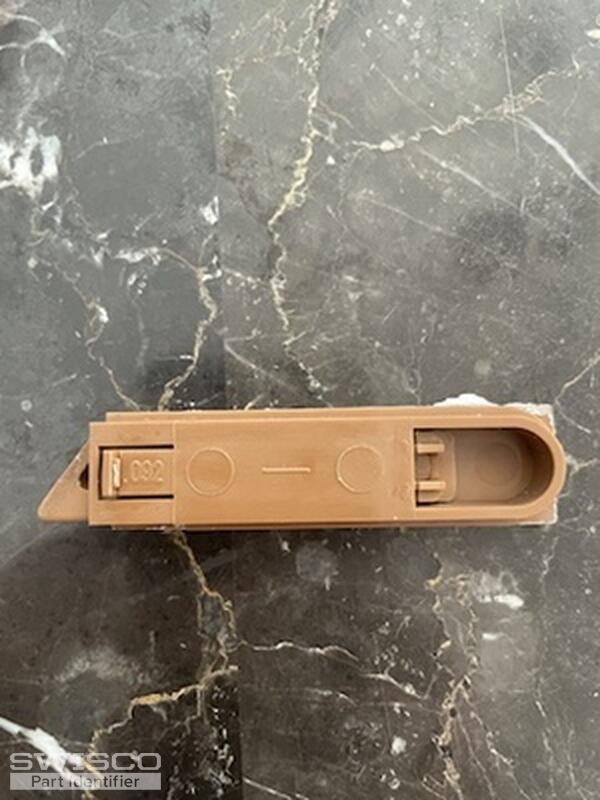

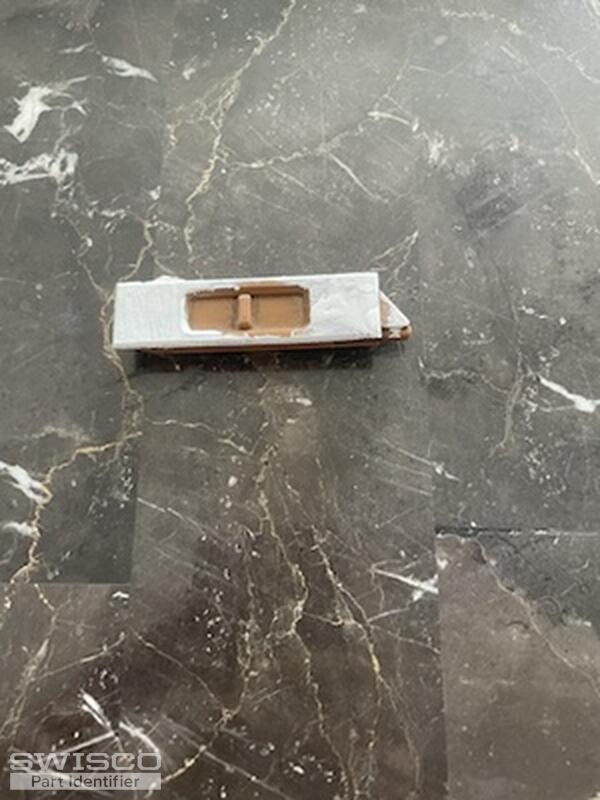

As for the tilt latches, my recommendation would be our 26-243 and 26-244. These are very similar to your originals and I think will work well. Just make sure to review our dimensions to confirm.

Alternate view of 26-243

Profile view of 26-243

That's exactly what I was hoping to see, thank you! My top recommendations for the keeper and lock are our 90-237 and 90-161, respectively. The 90-237 is a dead ringer so I'm very confident this will work.

The 90-161 is a little different in terms of style but the hole spacing is the same and it is compatible with the 90-237. I think you should just check to ensure that the backset of the holes is the same at 7/16". It does come with a keeper but this can be discarded.

Alternate image for 90-237

Detail of 90-161
