Window Hardware - casement crank-out

Landlord from Wisconsin

Mar 5, 2025 2:08 pm

Good Afternoon,
I have several windows with crank-outs that no longer work.

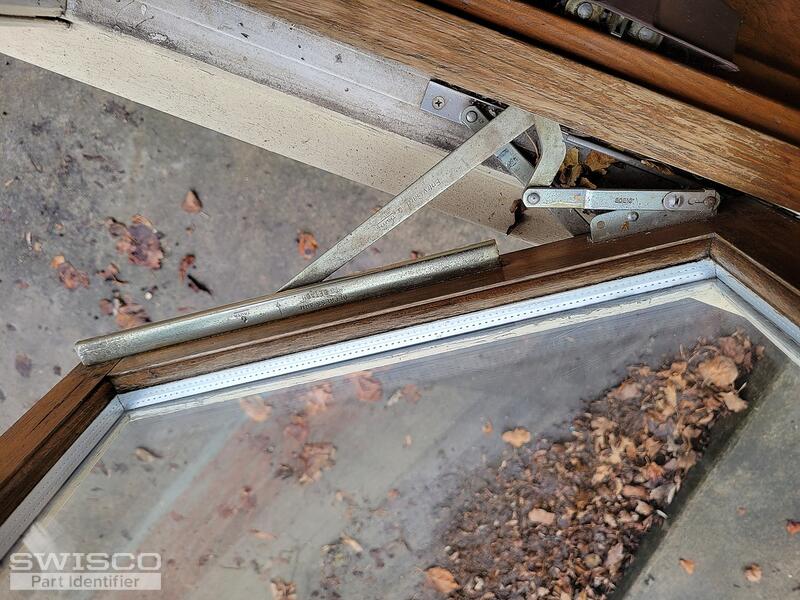

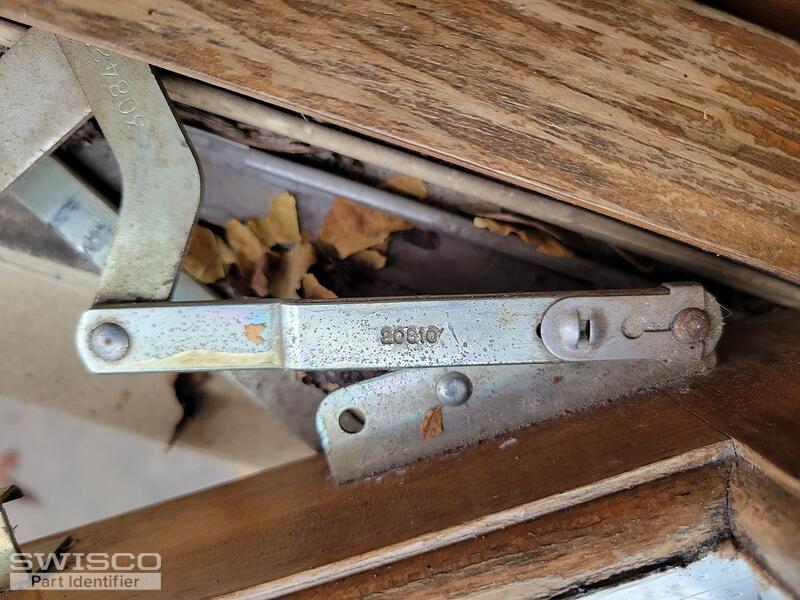

Hopefully you can help me. I have attached some pictures.

5 user uploaded images

2 Replies

Casey from SWISCO

Mar 6, 2025 12:10 pm

Hello,

Your photos resemble the Entrygard 39-032 operator. We also offer the 39-031 opposite-handed version if needed. Both sides are used with the 39-107FK handle and cover kit. Note that the shorter link arm measures 4-7/16" as shown below. Thanks for posting!

Dimensions for 39-032
