A quick learner from Wisconsin says:
November 28, 2021
The metallic portion for holding the spiral is missing on one side of the balance shoe assembly. Can you please let me know if I can just find the metallic part or do I need to change the entire balance shoe assembly. Please provide me the part nos. for the whole assembly and the metallic part if possible.

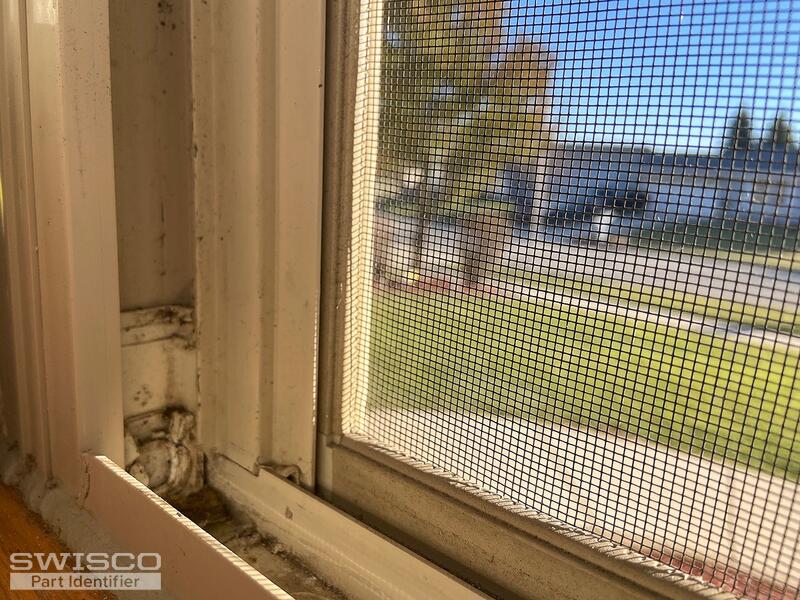

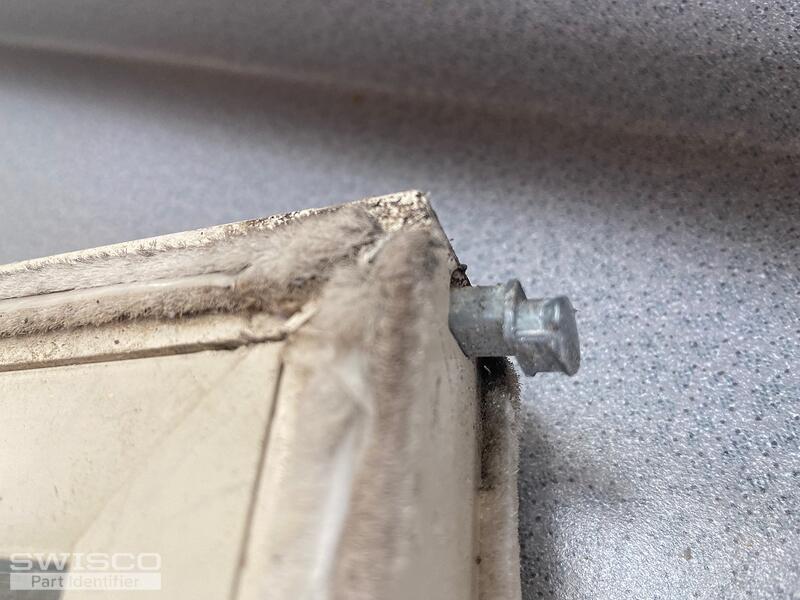

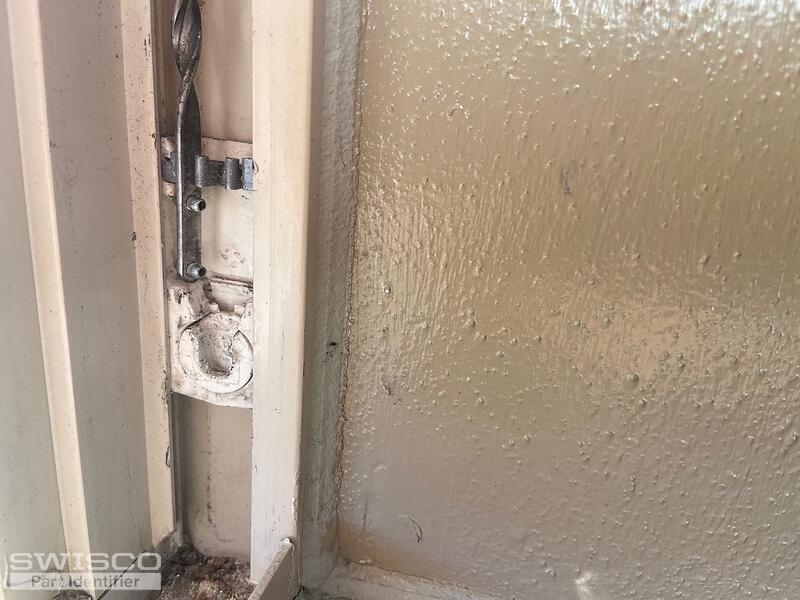

I am attaching pictures showing the one side with the metallic part and the other side missing the metallic part, as well as the pin design that goes into this assembly.
Thumbnail of the uploaded file named 1FF65F32-2BB6-4A3B-B1A6-2D237F6A196E.jpeg
Thumbnail of the uploaded file named D3BDBCAE-5436-45E8-8D5A-70EF65DEF087.jpeg
Thumbnail of the uploaded file named E6212575-9D1A-458D-BB94-470256D7A362.jpeg
Profile picture of Bob
Bob from SWISCO responded:
December 2, 2021

When the metal cam is damaged, the entire pivot shoe must be replaced. I'm certain we can help, but we'll need you to remove the old shoe. Tell us its width and thickness, and we can then find which shoe you need from our selection here.
A quick learner from Wisconsin says:
December 4, 2021
Hello,

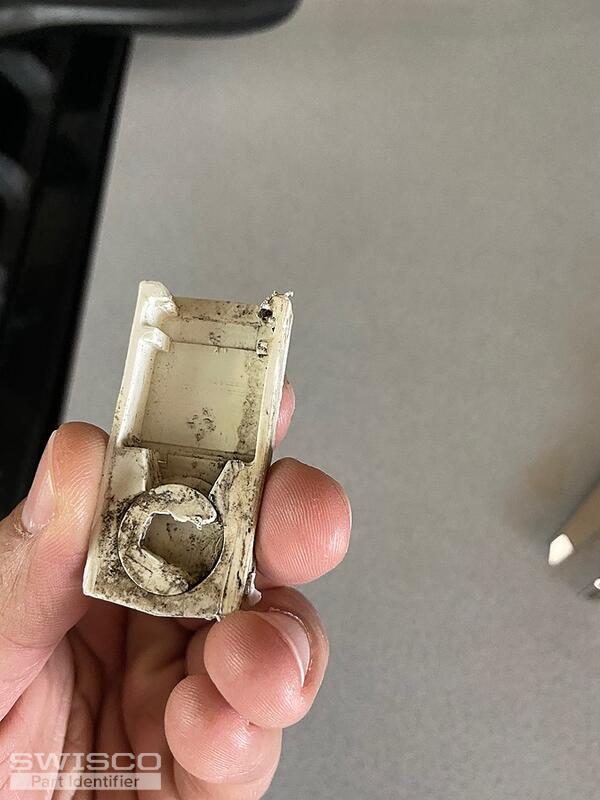

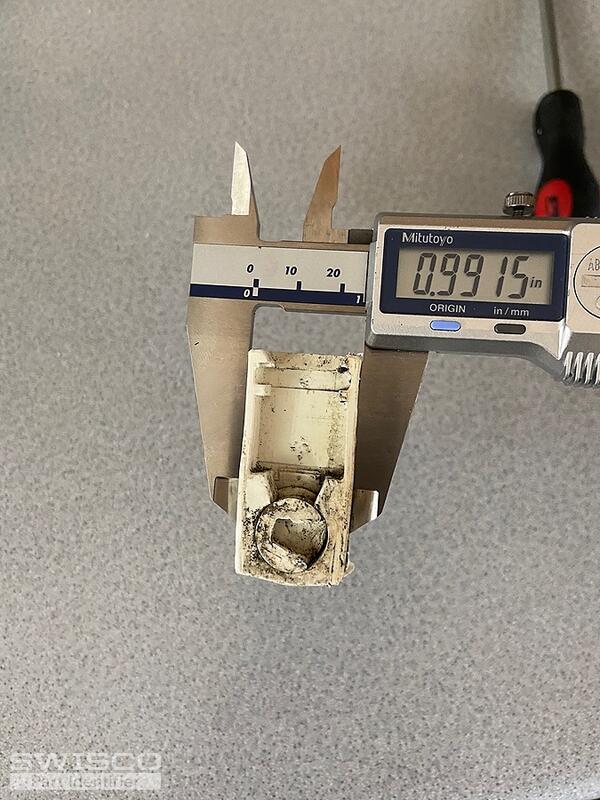

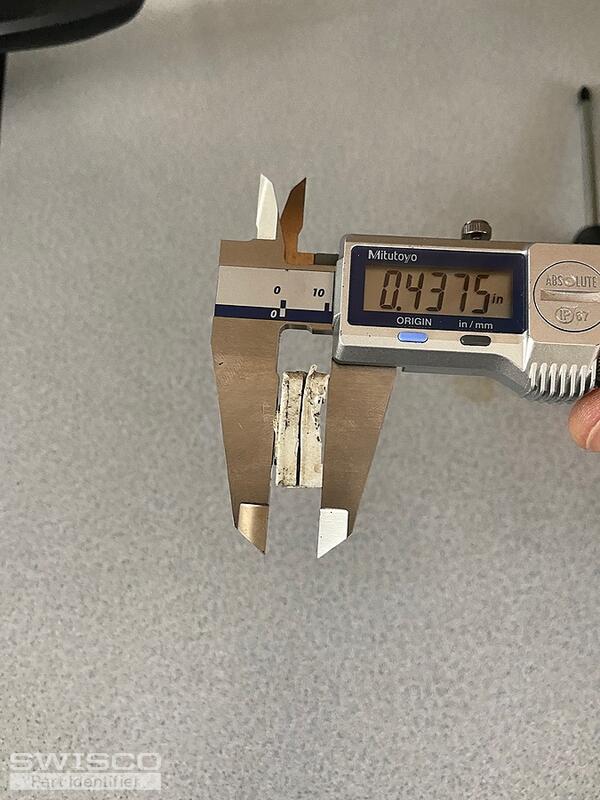

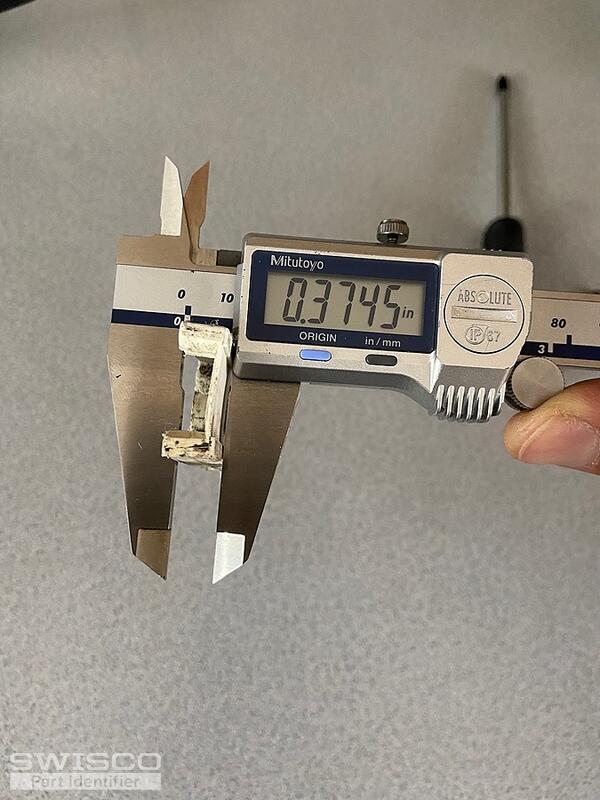

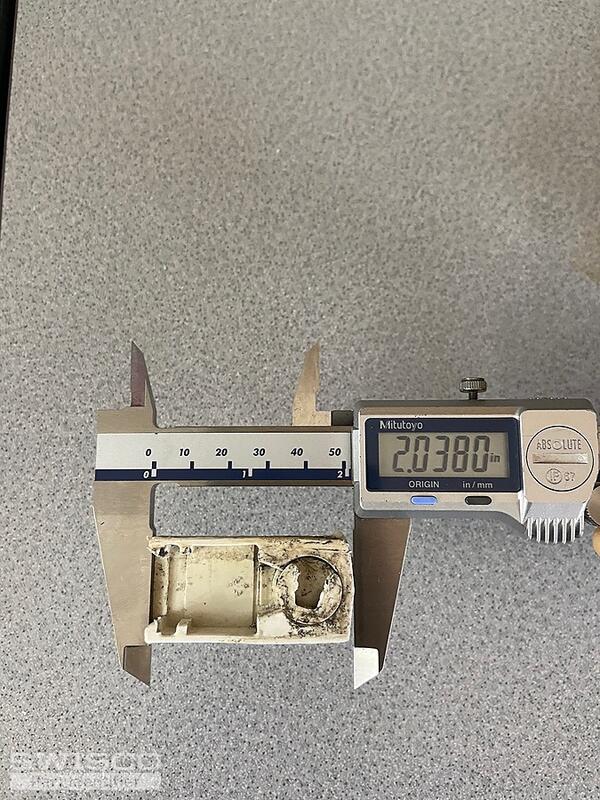

Thank you for reaching out. Length is 2", width is 1" and thickness is 0.375" at one end and 0.4375" at the shoe locking end ( could just be the defective part at this end).

Thanks for the help.
Thumbnail of the uploaded file named 98CEF625-E512-4251-94E8-48CF15AD2AED.jpeg
Thumbnail of the uploaded file named E83A2A10-4096-4BDD-A826-C600611C2FDD.jpeg
Thumbnail of the uploaded file named 9F73B7AD-1A29-4F07-BD9A-4706434CC6BC.jpeg
Thumbnail of the uploaded file named 38A0CAAD-3EAD-4F76-B0A1-B9C09F1B0441.jpeg
Thumbnail of the uploaded file named 90BB95E9-3789-4719-8C52-5B529DF252B2.jpeg
Profile picture of Bob
Bob from SWISCO responded:
December 6, 2021

Start by looking at our 15-134 or 15-173. Double check the thickness of your old pivot shoe and see if either one of these could work for you.
Pivot Lock Shoe, 3/8" Thick
Pivot Lock Shoe, 3/8" Thick
15-134
$2.79
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-173
$2.72
