Window Hinge Parts

Home Owner from Somerset Ma

Mar 9, 2020 9:02 pm

Hi,
Trying help me son with Roto window fell out. I noticed bent crank out arm and one arms will not go in hole. Pin appears to be flanged to stay in hole. Some of others are held together with screw. I like order top and bottom assembly,hope you can help

Thanks
Mike

3 user uploaded images

6 Replies

Bob from SWISCO

Mar 10, 2020 1:51 pm

Hey Mike. Take a look at our 36-004-10. Look it over and let me know if you think this is the hinge you need.

Home Owner from Somerset Ma

Mar 10, 2020 7:15 pm

Bob, thanks for getting back to me so soon. 36-004-10 looks close to being hinge. Let me have my son measure length. Let me ask can it be purchased as one pair?

Again Thanks

Casey from SWISCO

Mar 11, 2020 7:08 am

The 36-004-10 is sold only in pairs, if that helps.

Home Owner from Somerset Ma

Mar 22, 2020 7:50 pm

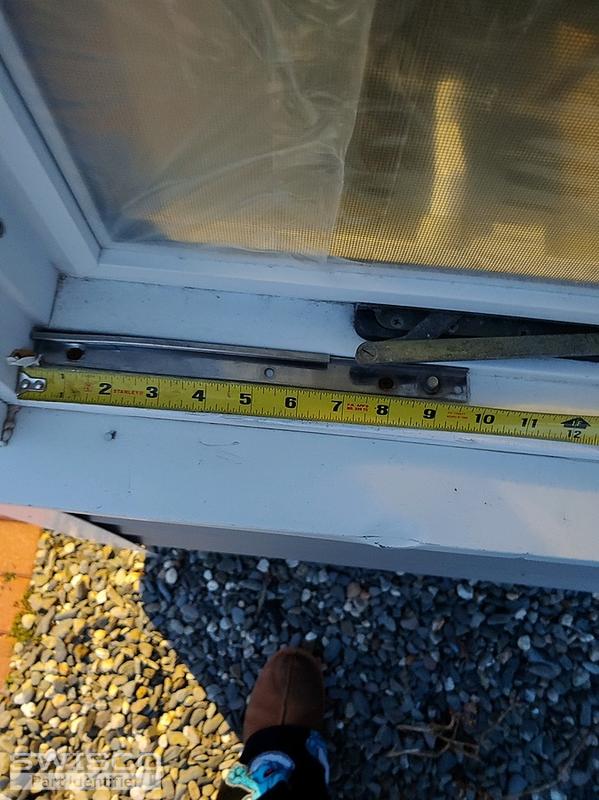

Would this be considered 10" bar?

Thank you

1 user uploaded image

Bob from SWISCO

Mar 23, 2020 7:05 am

Yours is a little short, but I think you'll be okay. As long as you replace the top and bottom hinge at the same time then your window will have an even slide.
