Window Latch

A contractor from NY says:
I have US Window factory replacement windows from 2003 they are out of business now. There are 2 possibilities for replacement latches hoping you can narrow it down for me.

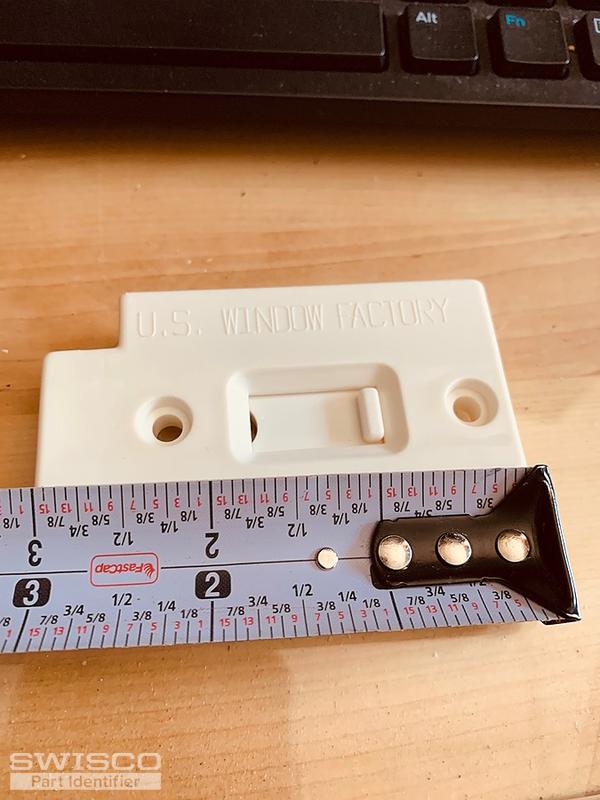

Thumbnail of the uploaded file named IMG_E5069.JPG

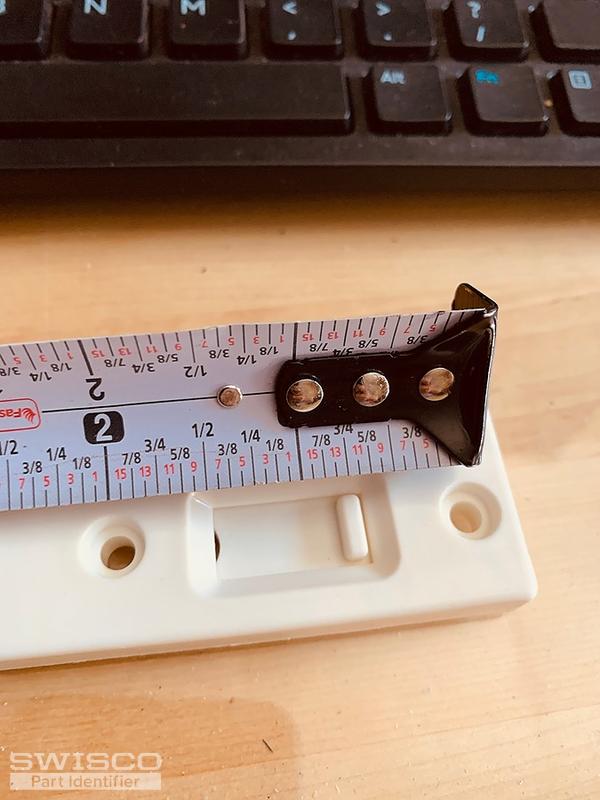

Thumbnail of the uploaded file named IMG_E5070.JPG

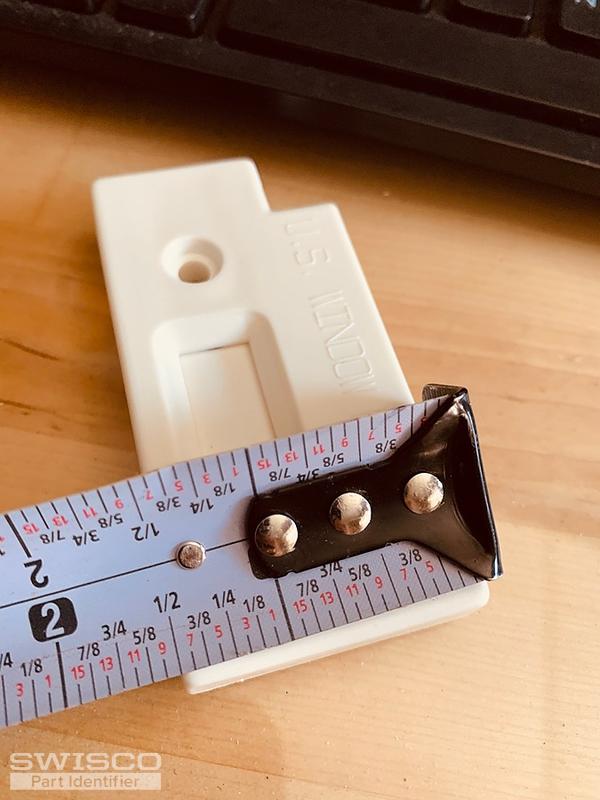

Thumbnail of the uploaded file named IMG_E5071.JPG

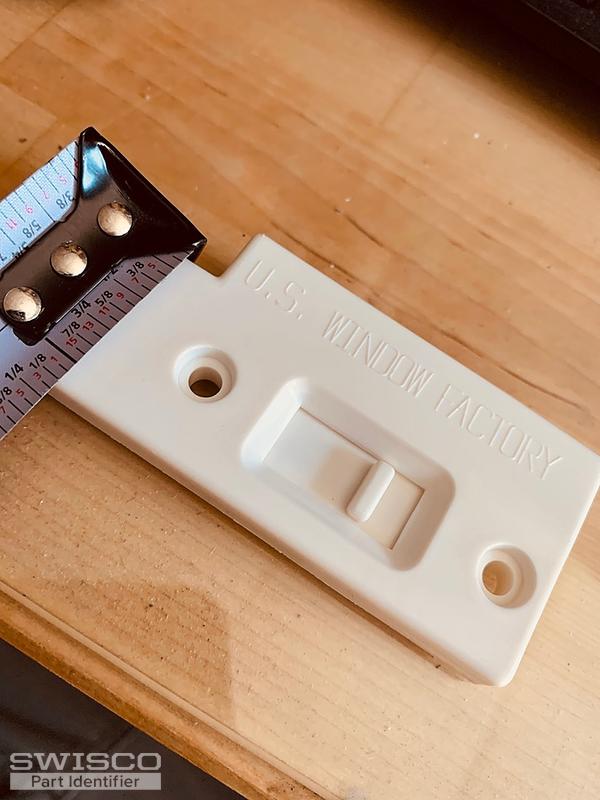

Thumbnail of the uploaded file named IMG_E5072.JPG

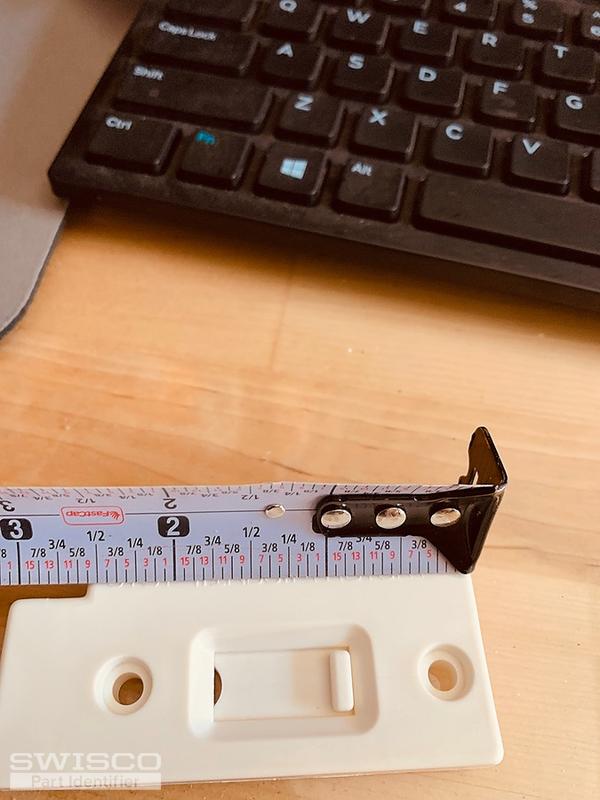

Thumbnail of the uploaded file named IMG_E5073.JPG
Profile picture of Bob
Bob from SWISCO responded:

I see you were looking at the 26-337, and I agree this is what immediately comes to mind based on the hole spacing. The only other possibility, as you may have surmised, is the 26-334. The chief difference here is that distance between the first mounting hole and the edge of the latch from which the tooth protrudes. For the 26-337, that distance is 13/16"; for the 26-344, it's 3/4". Compare both to see what matches with what you have.

Even then, we don't have any kind of tilt latch with that wide flange your old ones have, so you'll want to be sure these replacement tilt latches fit your sash frame correctly. I can't be absolutely certain either of these latch pairs will work as a replacement, but they are the best bets we have in my estimation. Let me know if you have any other questions.
