Window Latch Mechanism Broke

Home Owner from Minnesota

Nov 16, 2021 11:05 pm

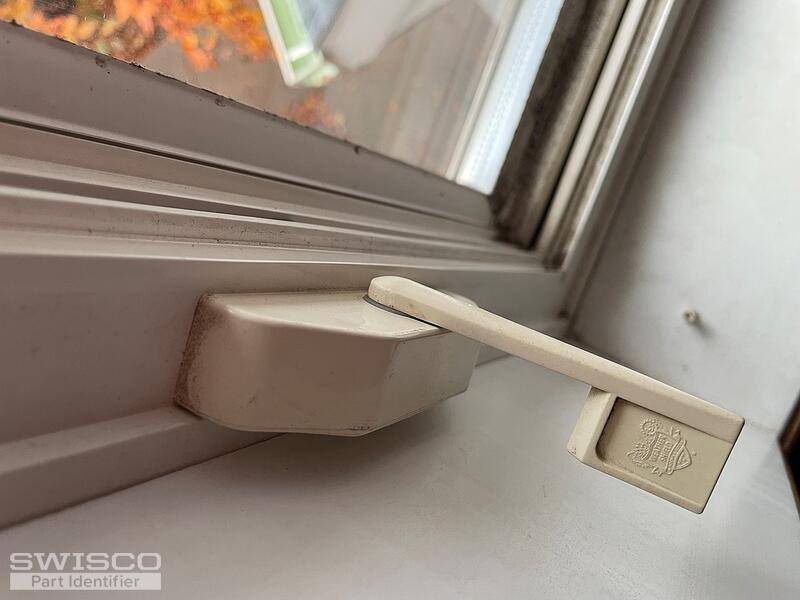

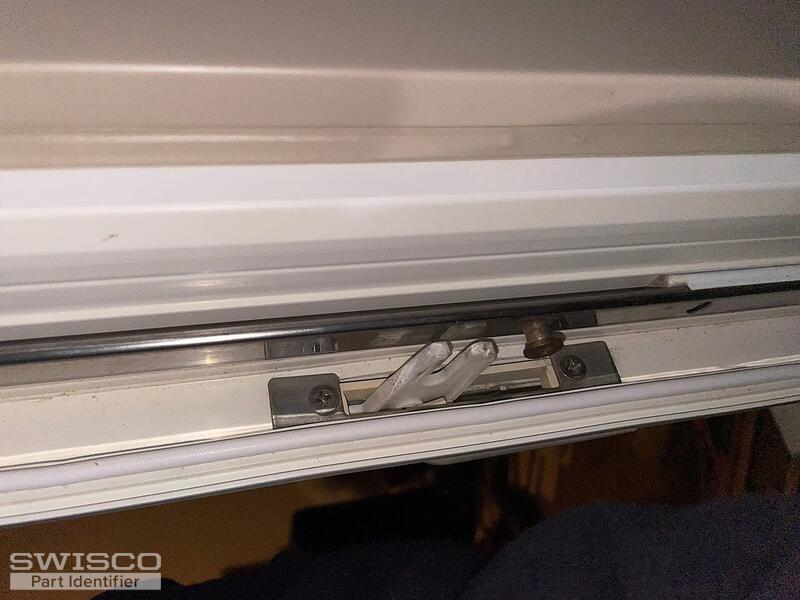

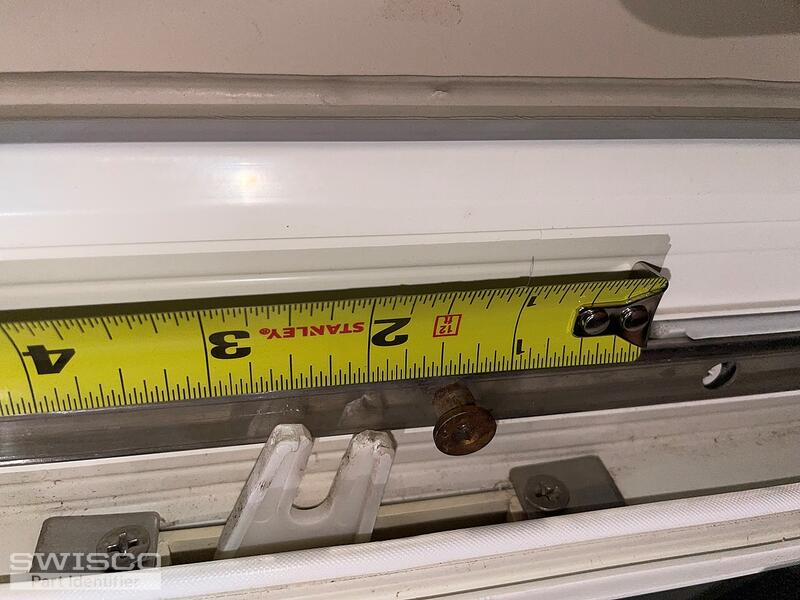

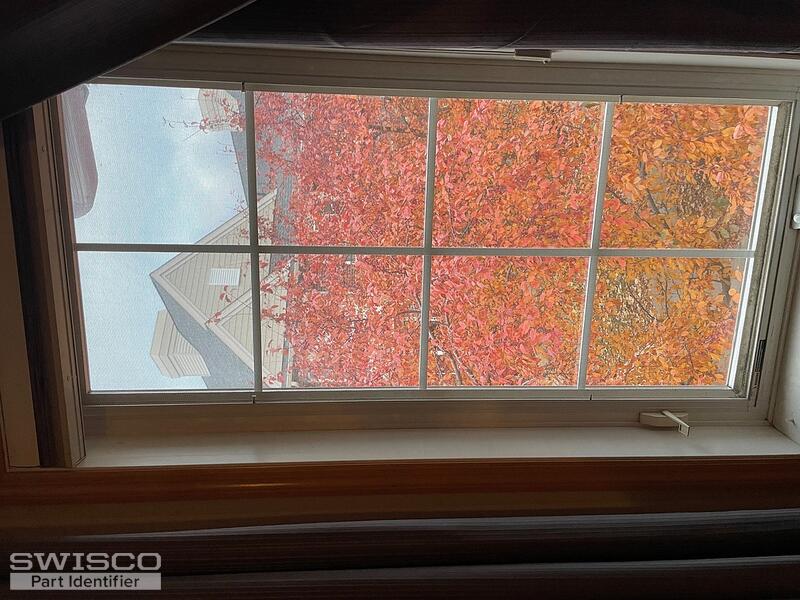

My window latch mechanism quit working and I am hoping it makes sense to just replace the part, if available. I took measurements as seen in the photo above, but can take any photo needed to help identify the specific part, thanks!

4 user uploaded images

4 Replies

Emily from SWISCO

Nov 18, 2021 3:57 pm

Hey there!

This reminds me of one of our multi-point locks such as the 38-095, 38-096, 38-138 or 38-139. Look over all the dimensions, especially the projection of the fork, to see if one of these is what you need.

Home Owner from Minnesota

Nov 20, 2021 2:02 pm

Thank you, this is helpful.

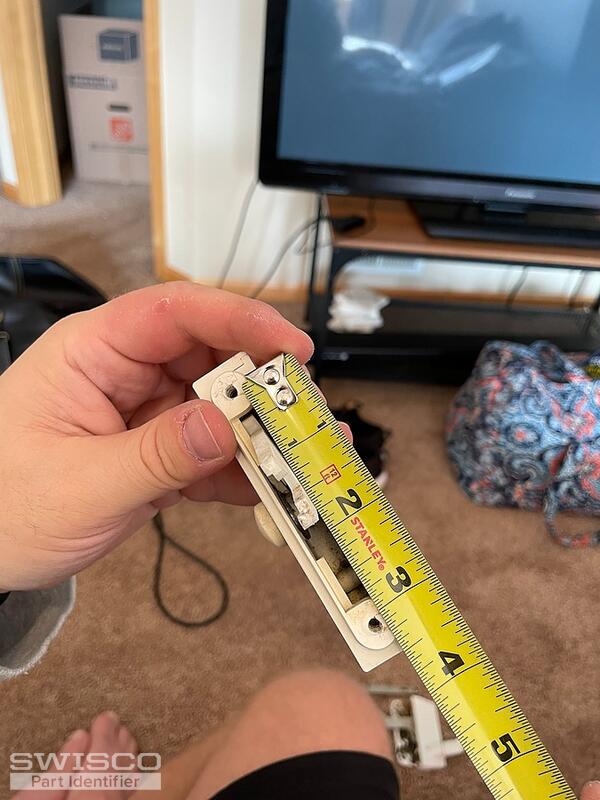

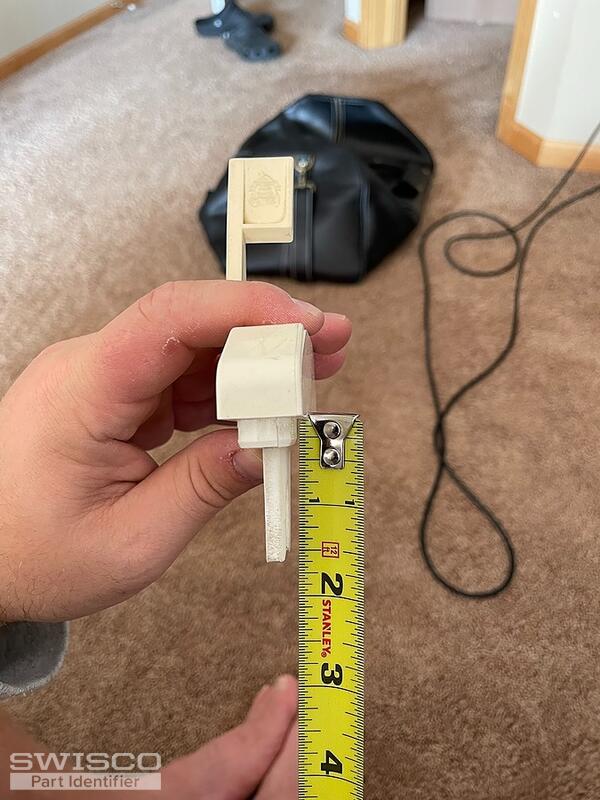

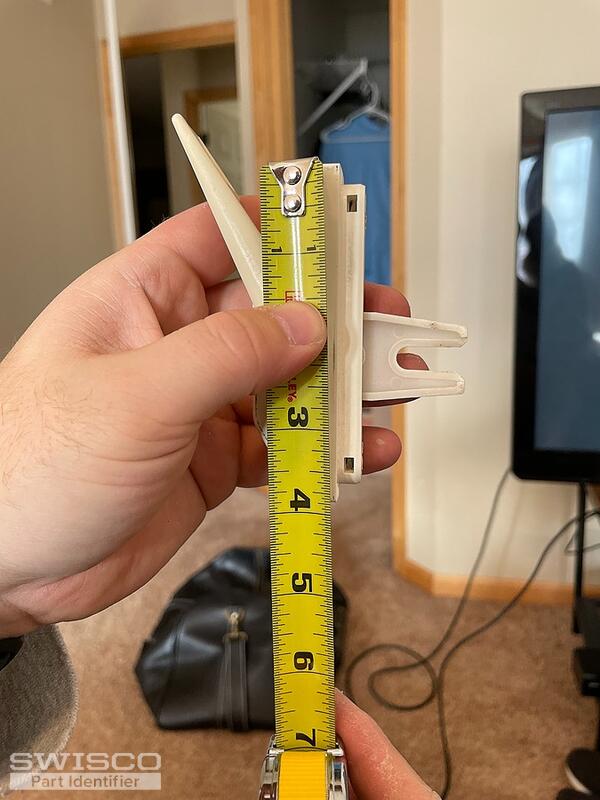

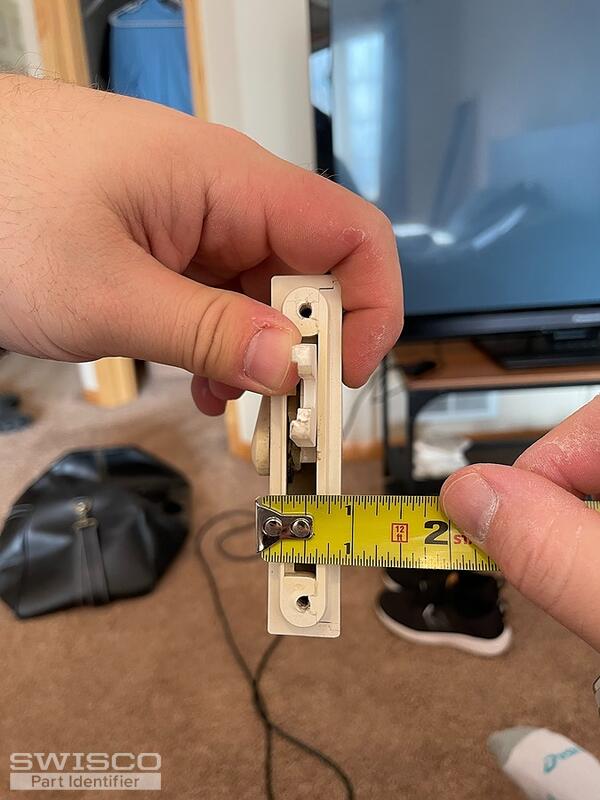

I don't believe mine lines up with the measurements of any you suggested, but I did remove the part and take a handful of measurements, as seen in the attached photos to this reply.

I would need this part for both the right and left windows.

Any further suggestions, thank you!

5 user uploaded images

Emily from SWISCO

Nov 22, 2021 9:51 am

I'm afraid it's hard for us to get accurate measurements from photos so you'll have to use your best judgement. The locks I linked you to previously are our best matches, though. How exactly do the dimensions differ? You can use the pictures on the locks' respective store pages as a reference for precisely what you need to measure.
