Window Latches

A home owner from Leland says:
November 15, 2017
11.15.17

Thank you for the balances you sent for my window repairs. Finally got everything working.

Two of the latches have broken plastic pieces on the end of the latches that hold the window in. This is a double window and one is a left and one is on the right.

The warranty number on the windows is........09342502 - single flip windows

Are these available.

Again, thank you for your help with the balances.

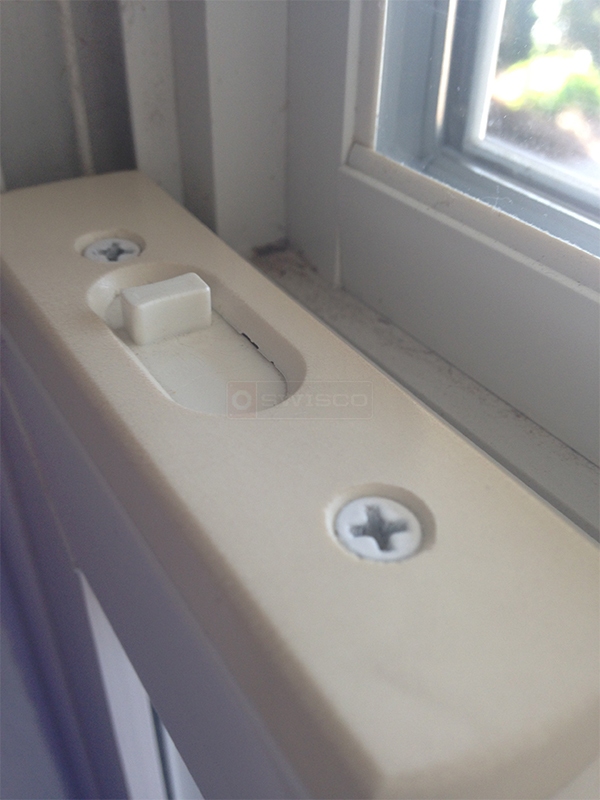

User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
November 20, 2017
Thank you for your continued interest with SWISCO. Before we begin to offer some recommendations on a replacement latch, we need some additional information from you first. Please provide us with the overall length of your latch, along with the screw hole distance from the end of the latch to the first screw, and lastly the distance between both screw holes. Once we have that information, we can proceed to search for a replacement part.
A quick learner from Leland, NC says:
November 20, 2017
Overall length of latch is 3 3/8"

Distance between screws:

Measuring from MIDDLE of first screw hole to MIDDLE of second screw hole is 1 7/8".
Measuring from EDGE of first screw hole to EDGE of second screw hole is 1 5/8".

Distance from end of latch to first screw is 5/8".
Profile picture of Paul
Paul from SWISCO responded:
November 21, 2017
From your dimensions, the closest top tilt latch we can find is 26-344. Please compare and see if you can use this.
Top Tilt Latch Pair, 2", 3/4"
Top Tilt Latch Pair, 2", 3/4"
26-344
$5.22
