Window Lawson channel balance

Quick Learner from Pembroke Pines , Florida

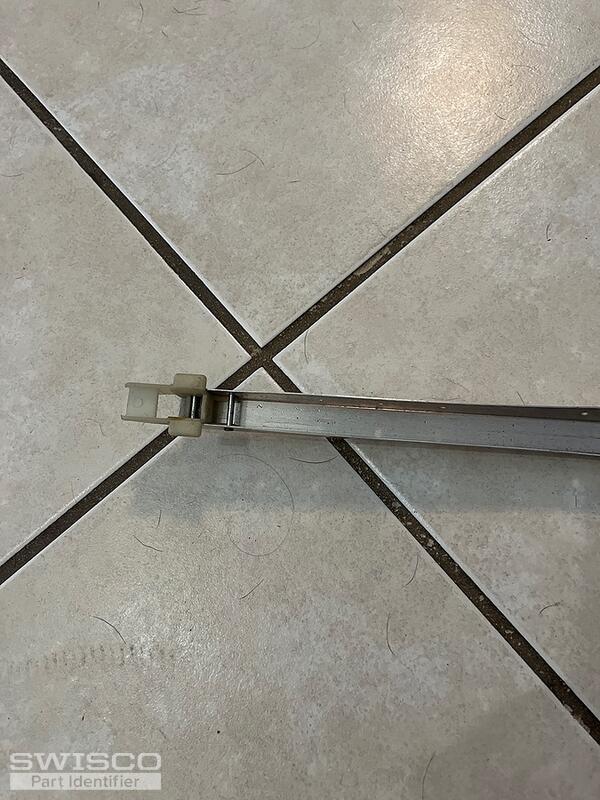

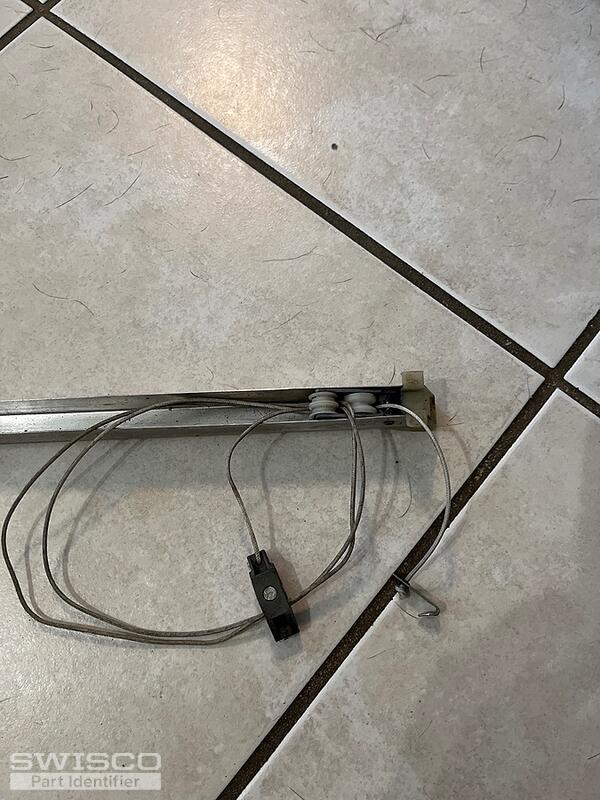

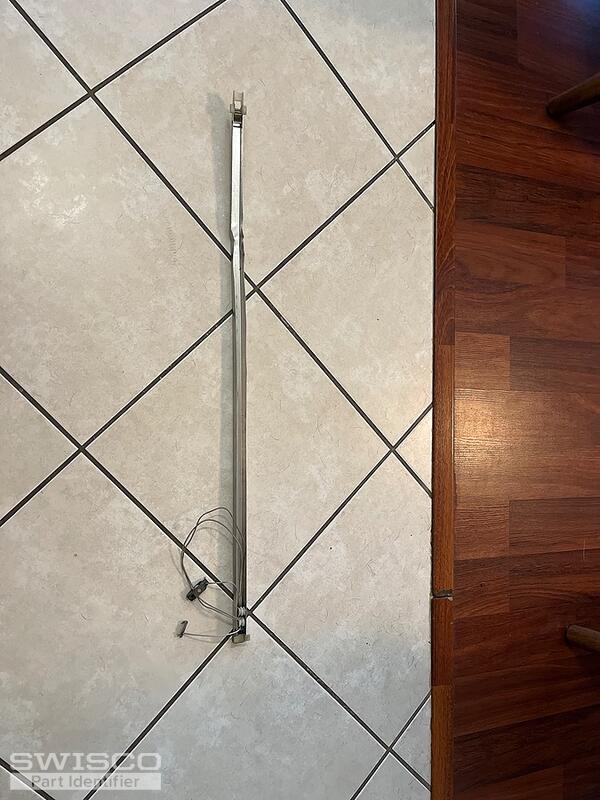

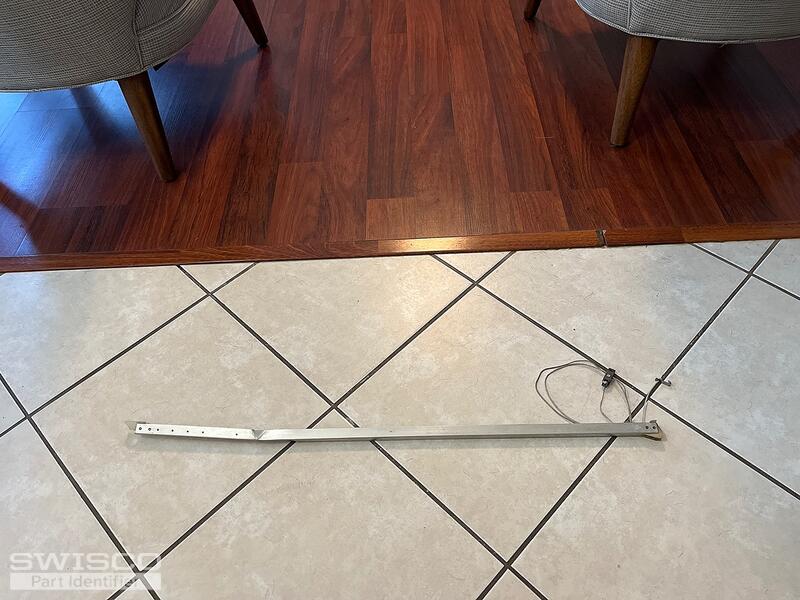

Good afternoon. I need a window channel balance. The number in the broken one is 2029. Could you please tell me the right part?
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

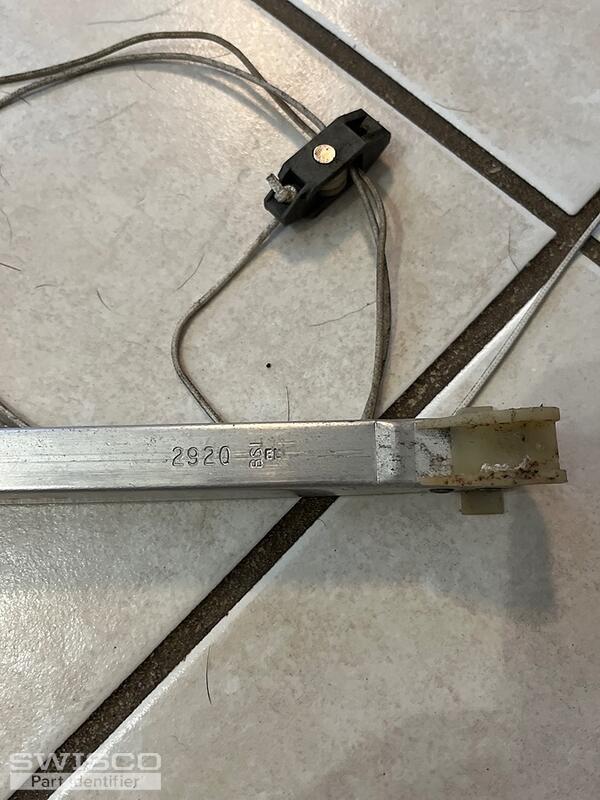

Hello there. Is the metal channel, not including the nylon attachments at both ends, 30" long? If so this is either an S380-30 or S385-30. The only difference between these two channel balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Compare both with your old balance to see what matches best. The stamp in your photo reads 2920; this is what you will choose as a new stamp option, which designates the calibration of the balance. Let me know if you have further questions.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
