Window Lock

Home Owner from florida

Jun 13, 2023 2:26 pm

hi

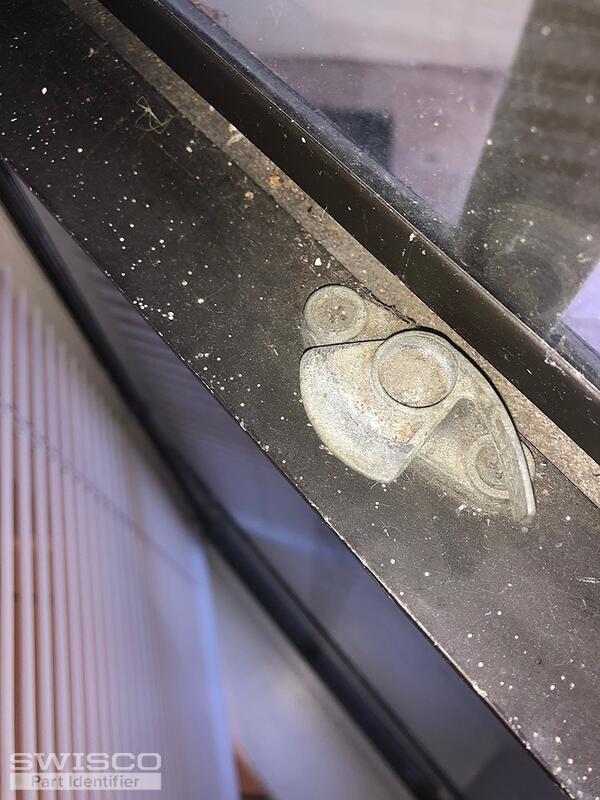

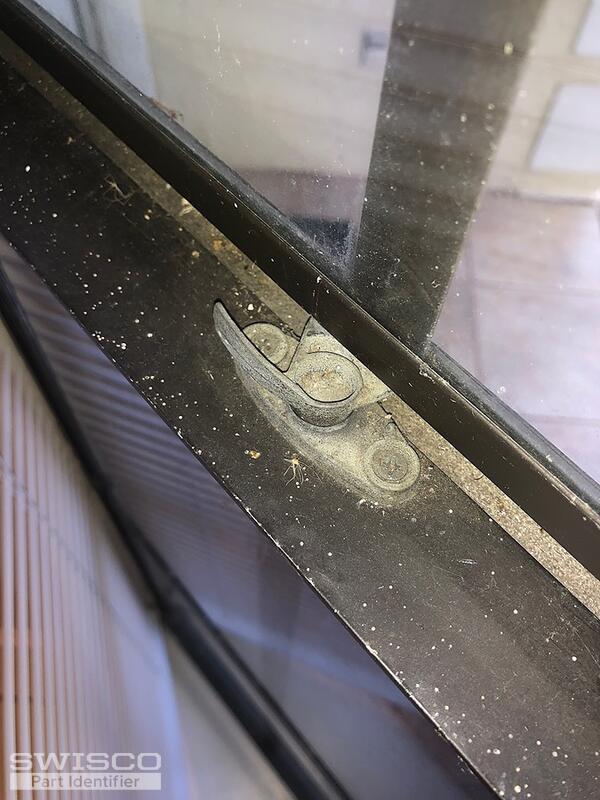

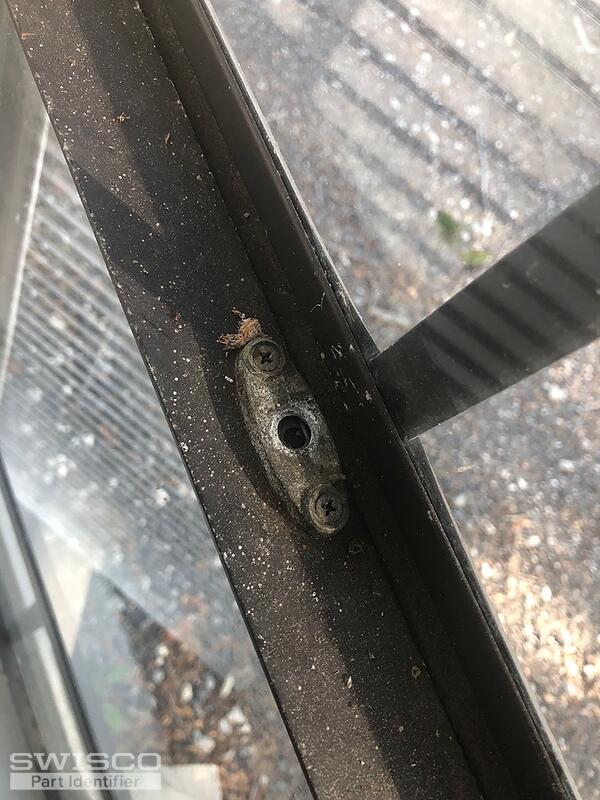

i lost a window latch/lock. looks like rusco window lock on your list can work for this case (see pictures). i don't have the original screw for the lock. do you sell the screw or know where can i get it? i searched your website but it didn't come up
thank you so much for your help
Mary

3 user uploaded images

4 Replies

+ Add a Comment

Emily from SWISCO

Jun 14, 2023 11:13 am

EXPERT

Hi there, Mary.

Your lock looks like the 90-028 to me. This part measures 1-1/2" on the installation hole centers. Take a look at the specifications and see how they compare with yours. As for the screws, a local hardware store should be able to match up the appropriate one for you.

Detail of 90-028

Home Owner from florida

Jun 14, 2023 12:03 pm

thank you so much Emily
can you tell me the screw size so i can ask at my local hardware store

Dave Sr. from SWISCO

Jun 14, 2023 1:08 pm

EXPERT

The 90-028 lock uses a flat head screw like the 33-011. However, it would be best to take one of your original screws to the hardware store with you. That way you can get the proper diameter (#6 or #8 size) and the length of the screw. The length is especially important. You don't want to be screwing into the glass at the top of the sash frame.
