Window Lock is Broken

Home Owner from MN

Hello, I have a crank out window with apparently broken locking mechanisms on both windows in my bedroom. I made a final move from the locked to unlocked position but had to force it. I could tell something broke/wasn't right. The window must have not actually unlocked because when the crank is turned the window will not open and behaves as if it is locked.

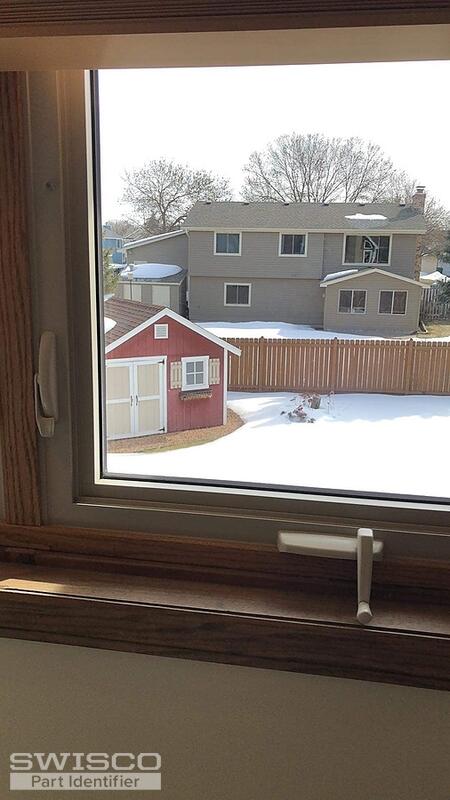

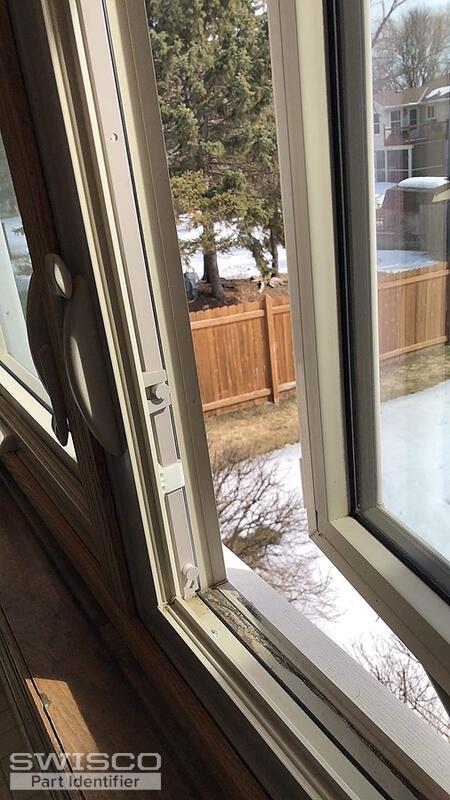

The up and down locking lever will no longer move into the locked position. I can feel that it is disconnected from the internal locking parts. Pictures are attached of the window type and locking bar.

 With all handle and levers in place, I don't see that there is anything I can do to unlock the window....? Suggestions on how I find someone that can replace the lock? Thank you.

2 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Unfortunately, there is no easy solution when a lock like yours gets stuck. We have a video shown below that offers a few suggestions, one of which would require breaking off the handle to access the internal locking mechanism.

We've also had some luck sliding a credit card between the lock-based and window frame to release the latch. I'd recommend using an old gift card or rewards card if you have one to avoid damaging a more important card.

Worse comes to worst, you may need to have a local professional come out and cut the lock off. We do not have any contacts near you but a local pro should be able to at least point you in the right direction.

Home Owner from MN
Right, so regarding the credit card suggestion, I'm unlcear on exactly where it is suggested to insert it when you say between the lock-base and window frame. Also, when you say a local pro, what do you all someone that can do this job...like what kind of expert do I need to search for? Sorry if these are silly questions :).
Casey
Casey from SWISCO
SWISCO
Expert

No problem, we'd be happy to clarify. You would need to see if you are able to slide a credit card behind the base of the lock to push the locking fork that engages with the tie bar shown in your first photo into the unlocked position. As for what we mean by contacting a local professional, you would need to search for a handyman in your area that has experience with casement windows like yours. Unfortunately, we do not know of anyone in your area since we are based in New Jersey. With that being said, someone with experience in the industry should be able to help or point you in the direction of someone who is local and able to assist you.
