Window Master vinyl Awning window hardware

Quick Learner from bonita, CA

Mar 26, 2019 11:26 am

These windows are about 20 years old and all hardware on most are failing
What is availability and cost to replace?

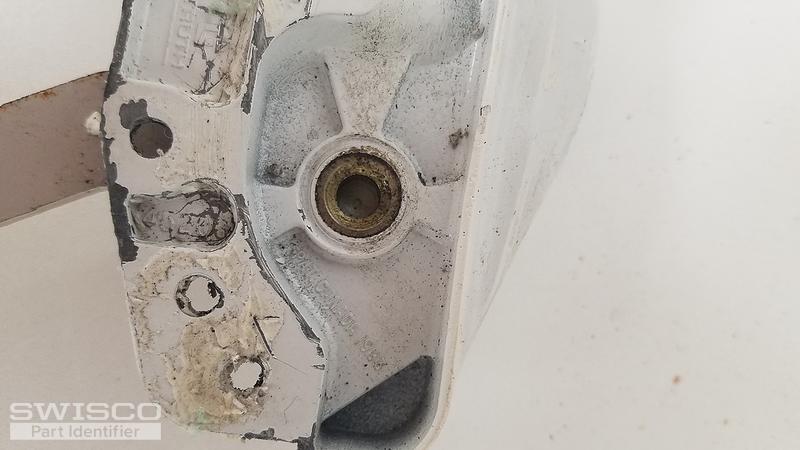

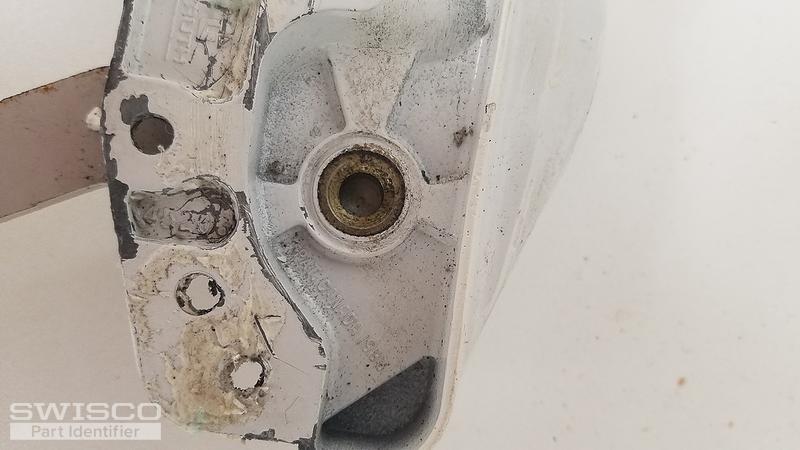

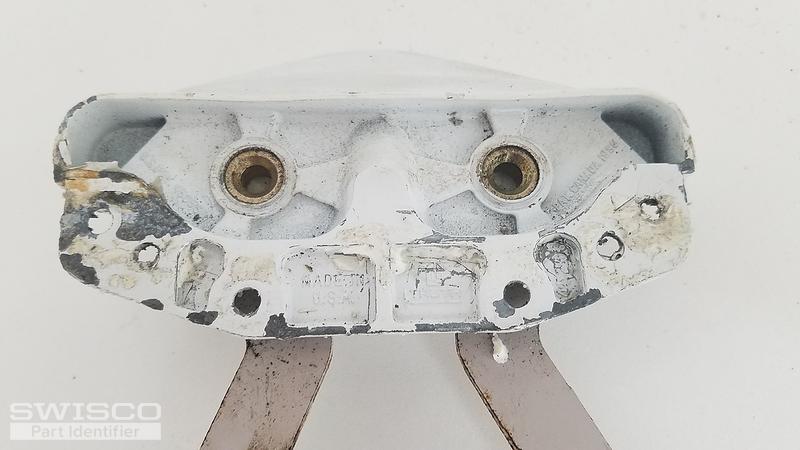

Only number I could locate was on bottom of mechanism 45206

5 user uploaded images

11 Replies

Bob from SWISCO

Mar 27, 2019 8:12 am

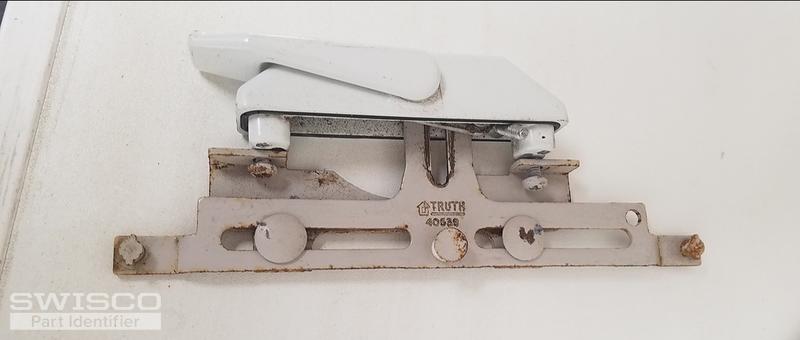

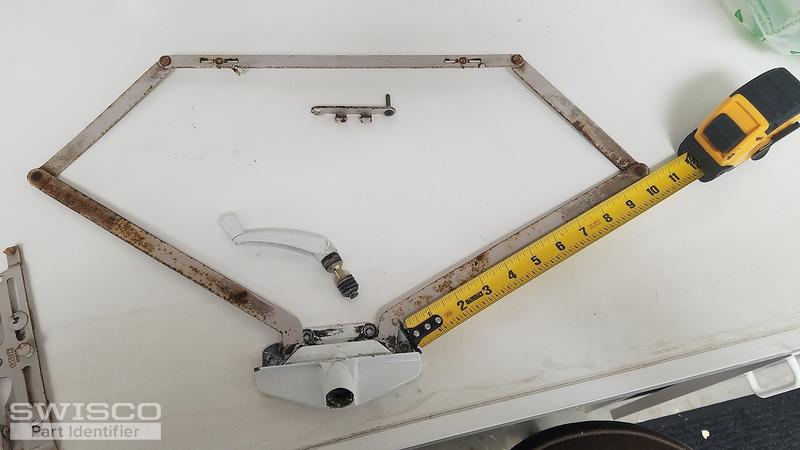

Thanks for posting. For your operator, see our 39-015. Compare the dimensions to your old part and see if you think it could work for you. For your lock assemblies, take a look at our 38-099 and 38-100. See what you think.

Bob from SWISCO

Mar 27, 2019 11:53 am

I'm afraid I can't really say what else you have. We would need a photo of each part you're looking to replace so that we can identify them. These parts have been known to work on more than one kind of window.

Quick Learner from bonita, CA

Mar 27, 2019 12:09 pm

Hi Bob, these look like needed parts, would also need to see the remaining cleats or hinges available for this window to replace all at same time. I know there are 2 hinges at top of window to connect it to frame that are needed plus the cleats the lock assembly connects to.
Can you please forward those additional links so we can order all?

Thank you

Quick Learner from bonita, CA

Mar 27, 2019 4:07 pm

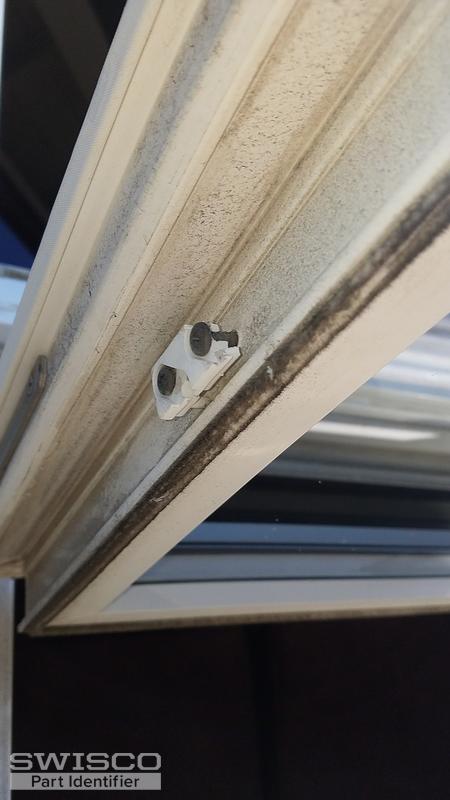

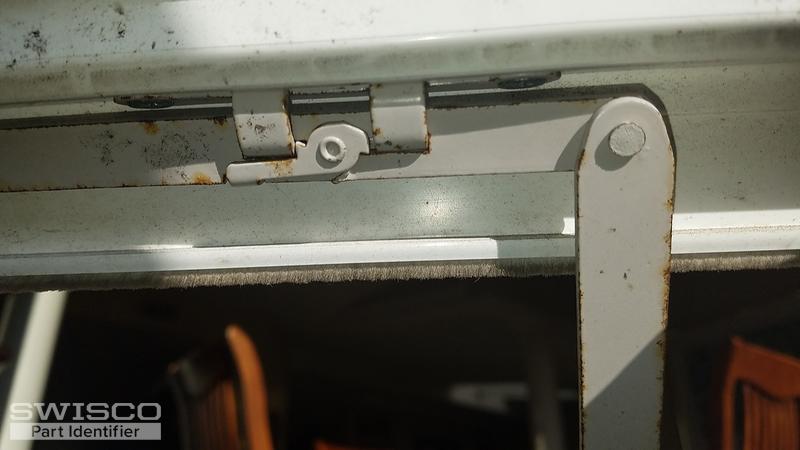

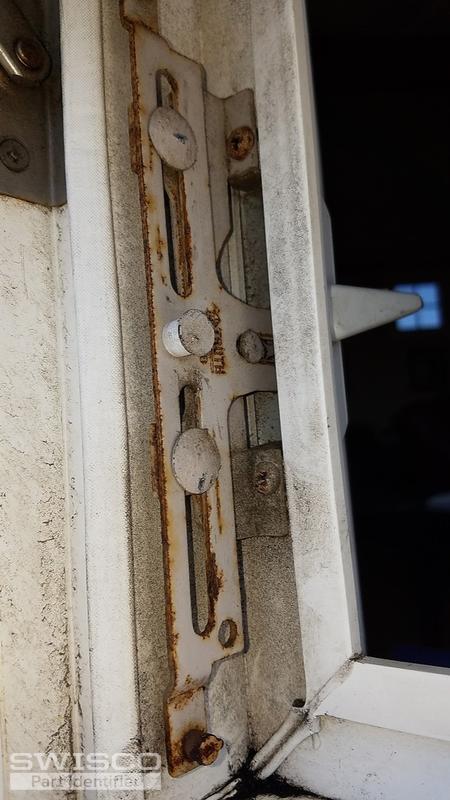

Hi Bob, new photos show the hinge which is a dark metal hinge about 1.5 ix 3"?? it is at top of window above the silver arm you see on side of window.
Also, the plastic cleat for locking mechanism to connect to is in picture.

Thank you

4 user uploaded images

Quick Learner from bonita, CA

Mar 28, 2019 9:13 pm

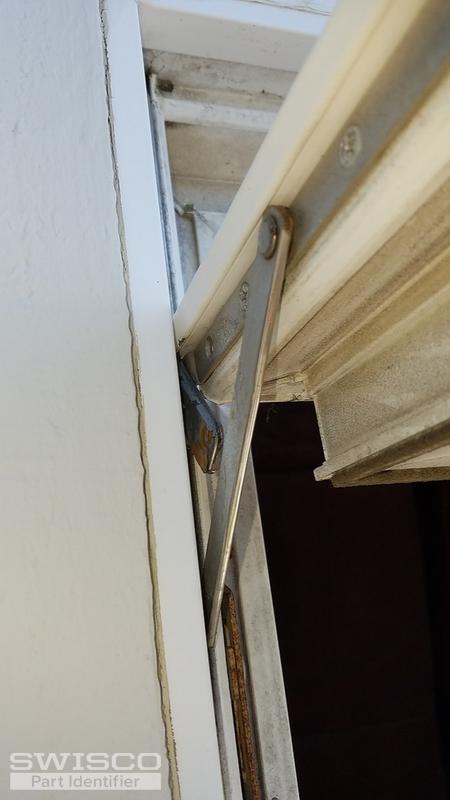

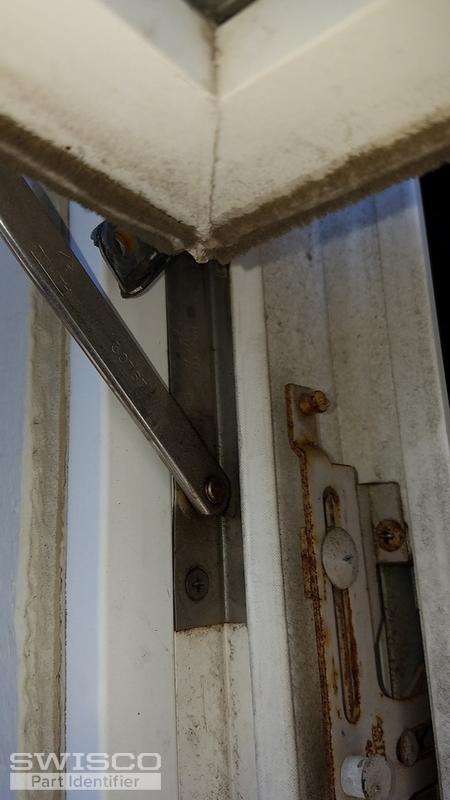

Hi Bob, about ready to order, just need to find these plastic cleats for side of window for locking mechanism. and the cleat/bracket the folding arms attach to.

Thanks

2 user uploaded images

Bob from SWISCO

Mar 29, 2019 9:23 am

Thanks for getting back to us. Your hinge looks like our 36-048, see what you think. As for that white cleat, I'm less sure. I couldn't find anything similar to this. What is its function? Could there be more to it, perhaps broken off or disconnected, or is this all there is?

Bob from SWISCO

Mar 29, 2019 11:03 am

Ahhhhh, I see. They work with the locks. Okay, how about our 38-130 and 38-131? These aren't exactly the same but they look like they search the same function. Let me know what you think.

Quick Learner from bonita, CA

Mar 29, 2019 11:05 am

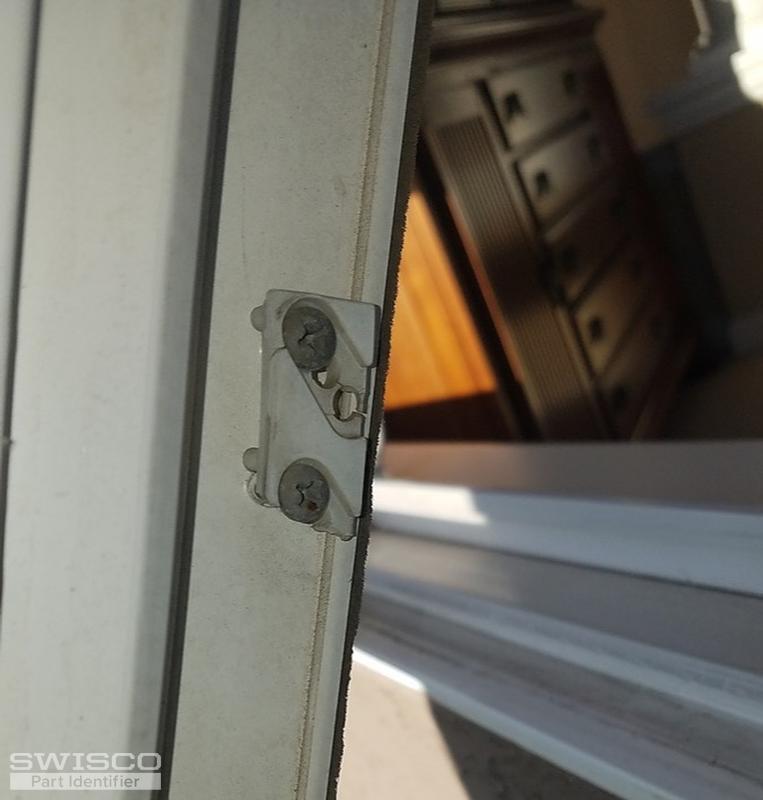

Bob, it looks like the white plastic cleat is just missing a corner and all mine seem to be broken off the same. This cleat is what the looking tablet engages behind to lock window. there is one on each side of the movable awning window.

Bob from SWISCO

Mar 29, 2019 2:37 pm

Yes! Just click the product codes from the message above and they will take you directly to the product pages for each of them. From there you can click through the pictures and dimensions.

Quick Learner from bonita, CA

Mar 29, 2019 3:24 pm

Hi Bob, is there a picture or link to see these?
Thanks
