Home Owner from Massachusetts

Aug 14, 2023 2:45 pm

Window mechanism no longer functioning, I am looking for replacements. I need 3 left and 3 right side window mechanisms. I would like the replacement parts for the window sash and the frame.

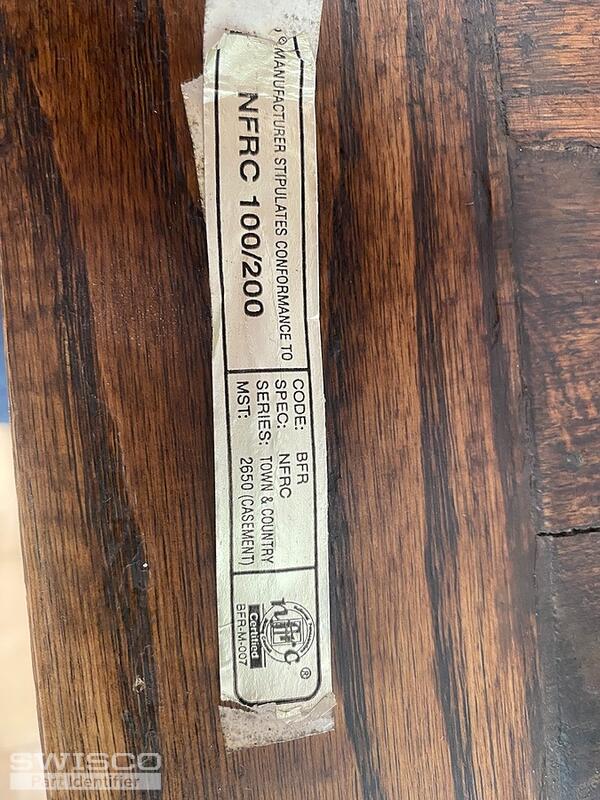

2 user uploaded images

6 Replies

Lauren from SWISCO

Aug 16, 2023 11:29 am

Hello, thank you for posting,

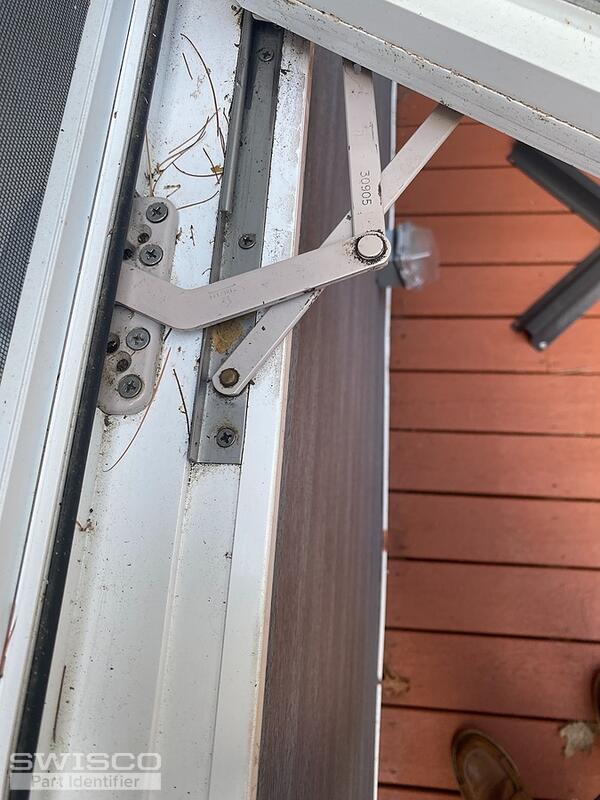

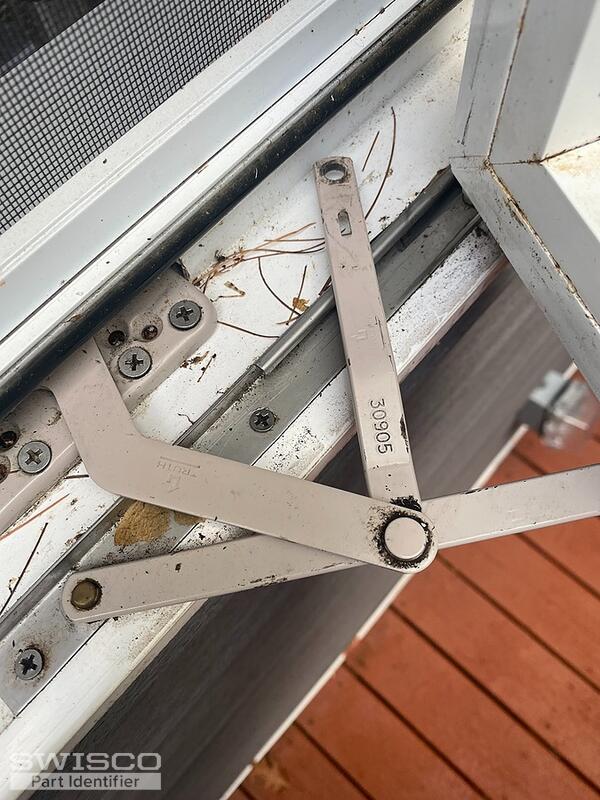

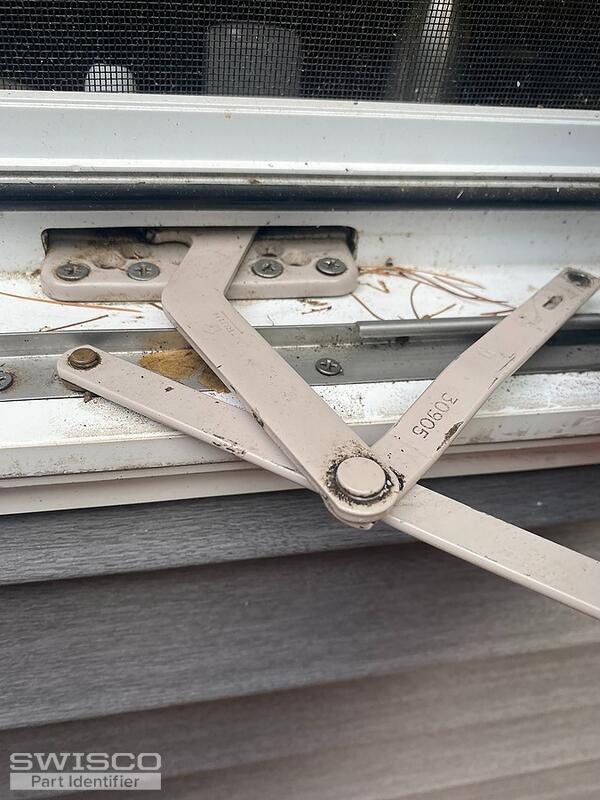

We should be able to provide a replacement option, but before I can make a recommendation, are you able to confirm if the link arm marked with #30905 has an offset or bend in the arm? I cannot confirm from the angle of the picture. Thank you!

Home Owner from Massachusetts

Aug 16, 2023 11:48 am

Is your question referencing the section of the arm that is under the sash or the section that is at the window crank end mechanism? I will need to take additional photos based off of your answer.

Home Owner from Massachusetts

Aug 17, 2023 7:55 am

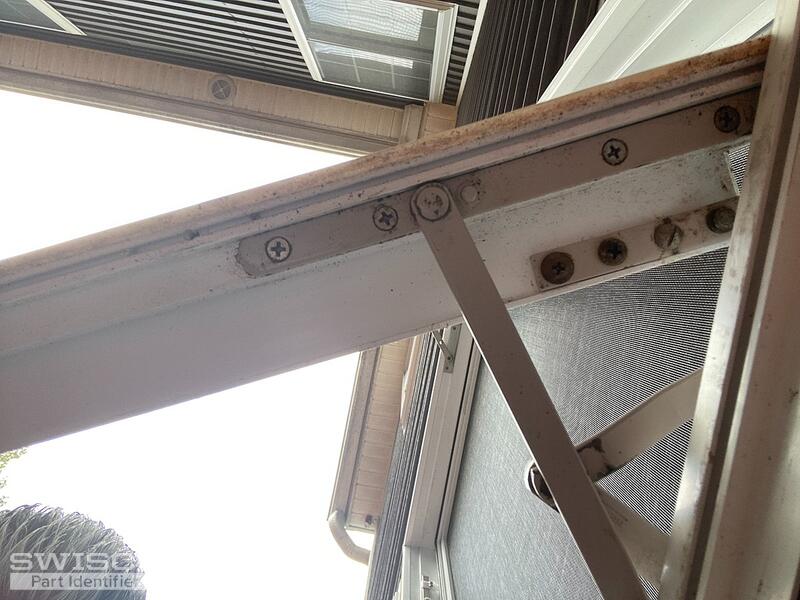

Additional photos added, please let me know if they answer your questions?
Thanks

5 user uploaded images

Lauren from SWISCO

Aug 17, 2023 8:08 am

Thank you,

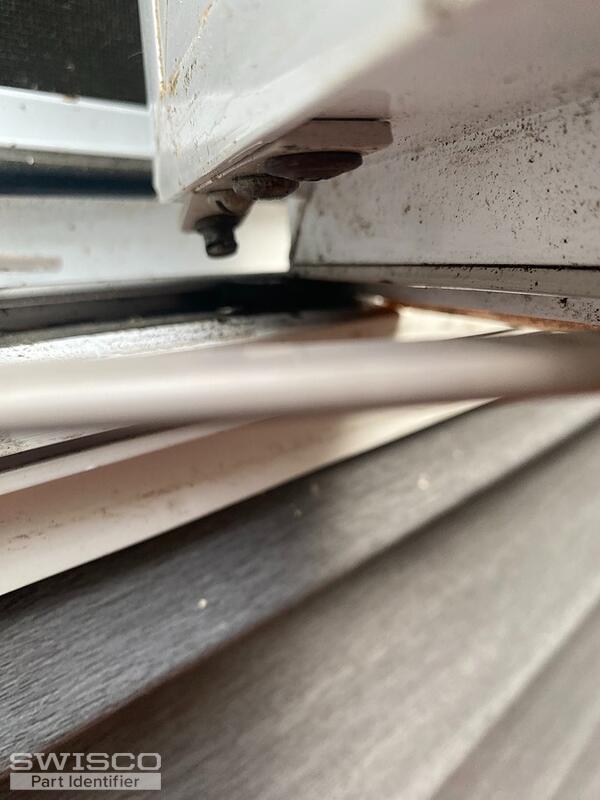

I can now see the offset in the operator arm. Please start by reviewing the overall style and dimensions of the 39-171 and 39-172 operators to see how they compare to your original. Let us know what you think and if you have any additional questions!

Dimensions for 39-171

Home Owner from Massachusetts

Aug 17, 2023 8:56 am

The measurements depicted in the photo are correct for what I have at each window.
