Window Operator Replacement

Start a new Discussion

Handy Person from FL

Dec 19, 2018 11:34 am

Good morning,

I need this window crank system overnight if possible

(2) left and (2) right in white.

Thank you,

John

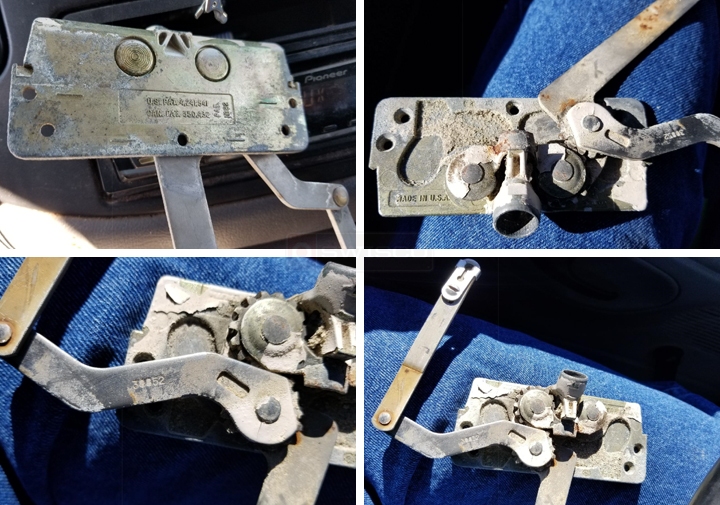

User submitted photos of a window operator.

4 Replies

Bob from SWISCO

Dec 19, 2018 11:58 am

Thanks for contacting SWISCO. Double check the length of your link arm. If it is 4-7/16", I recommend you look at our 39-031 and 39-032 EntryGard Dual Arm Operators (for left and right handed orientations). The covers and handles are sold separately. I recommend you look at the 39-107 Operator cover and the 39-205 Folding Crank Handle. Take a look and see what you think.

Handy Person from FL

Dec 19, 2018 1:50 pm

Which arm are we measuring??

1 user uploaded image

Bob from SWISCO

Dec 19, 2018 2:09 pm

The link arm is the lower part of the folding arm that connects with your window. In the example diagram below, it is the portion that has a length of 4-7/16". Just measure that span alone, and not the part of the folding arm that connects to the operator.

Dimensions for 39-032
