Window Part - Manitsas

Quick Learner from Florida
Good Morning.

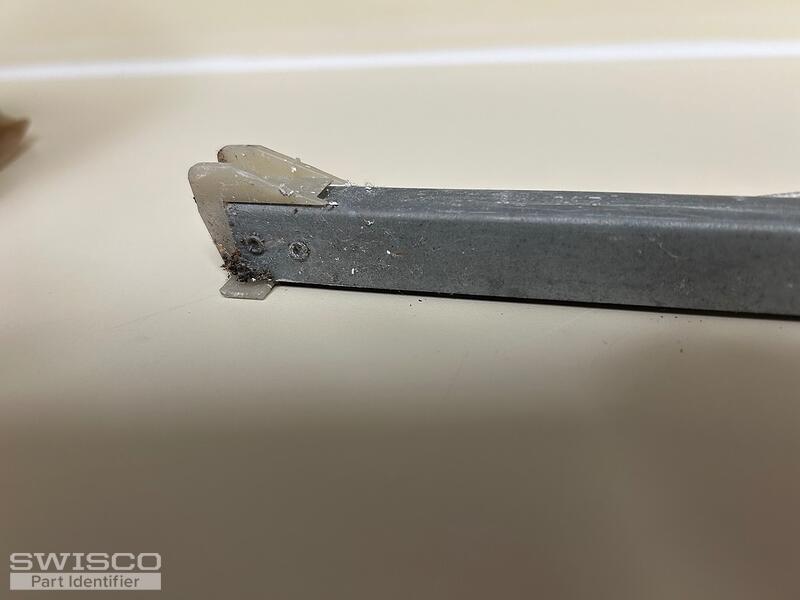

Just purchased a condo with single plane single hung HARCAR aluminum windows. The balances were removed from two of the windows. Marking on the balances is 230 T. Look to purchase 4 replacement balances. The length of the metal channel is 24".
4 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

With this combination of attachments, you could have either the S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need to weigh your sash to determine which option you'll need since your stamp code doesn't not correspond to any of our strength options. There is a chart on the product page that explains how to choose your option based on the sash weight. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
