Window Part Order

A home owner from San Marcos, CA says:

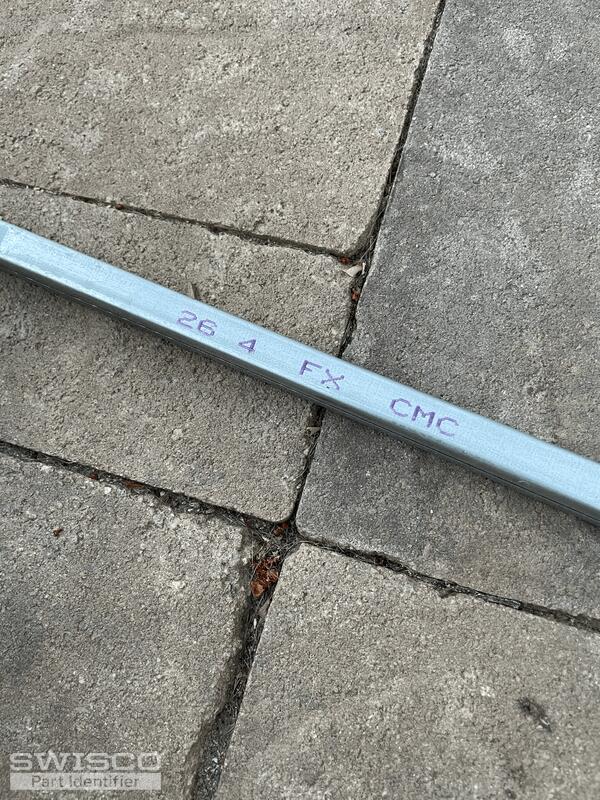

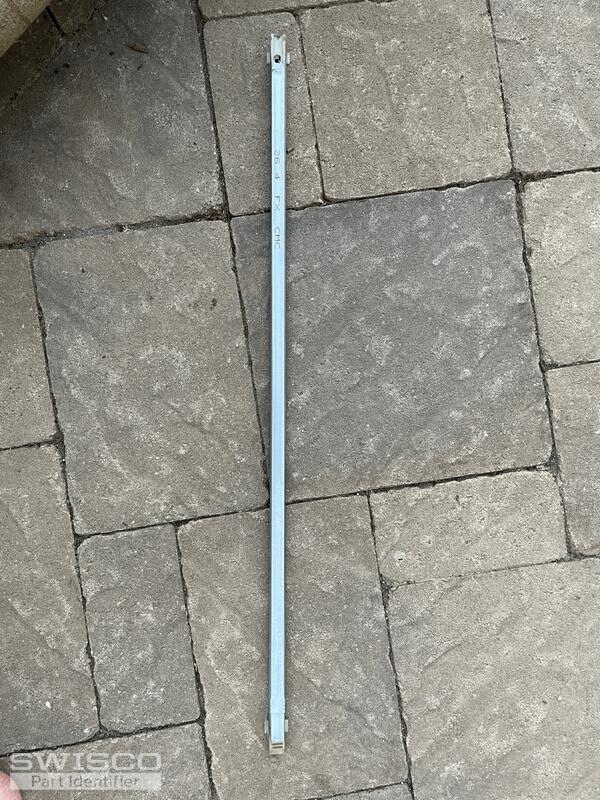

Hello, please advise what part I need to order to replace the one in the pictures. The piece is 28 inches long and is stamped with 26 4 FX CMC.

Thank you
Thumbnail of the uploaded file named tempImagehsS3hs.gif
Thumbnail of the uploaded file named tempImage2bUpvv.gif
Thumbnail of the uploaded file named tempImageLHil1s.gif
Thumbnail of the uploaded file named tempImageYKvBbz.gif
Thumbnail of the uploaded file named tempImageH7UWtT.gif
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2640.

If you have any further questions just let us know!
