Window Parts

Home Owner from USA

Please advise the availability of the pivot bar described hereunder.

Thank you.

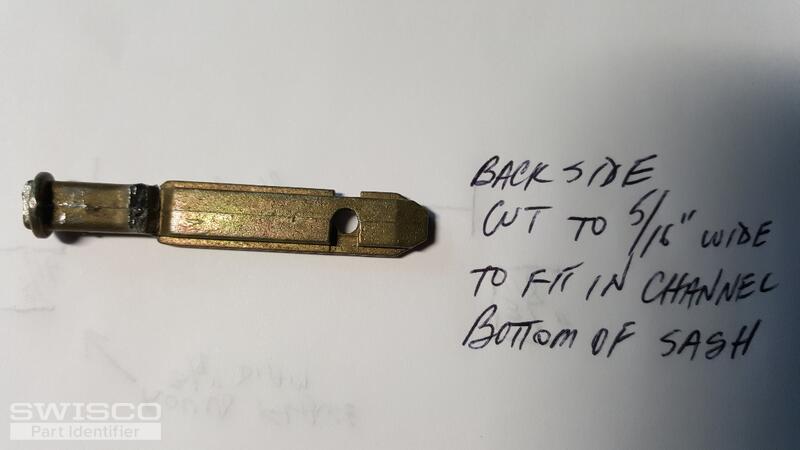

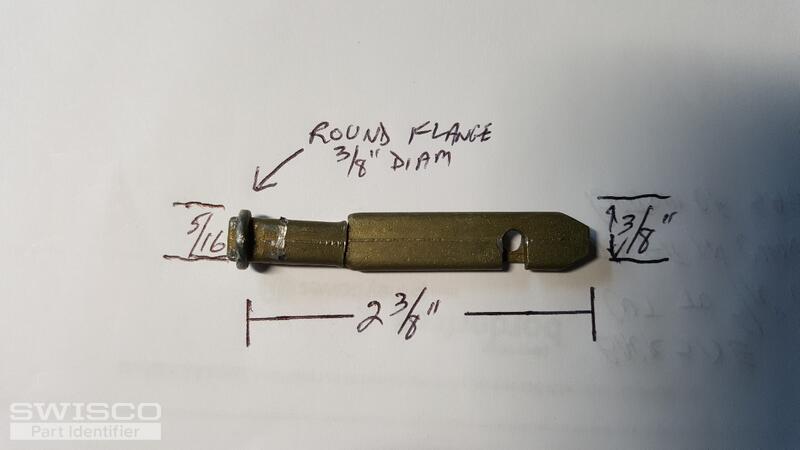

Hello. I'm sending you a picture of a small bar that is fastened to the bottom of a single-hung, tilt-to-clean window. It has snapped in two slightly before where the nylon base is flush with the jamb. It is about 2" long from the jamb insert to the end fastened to the bottom of the window sash. The bar is @ 3/8" wide on the exposed side but 1/4" wide where it inserts slightly into the bottom of the sash. It appears to have a round-end flange where it connects with the nylon insert in the jamb. The windows are Donat Flamand product#47103. I don't know if the bar I need is separate or is part of the "swivel" jamb insert. Please advise availability. Thank you.

Ross

5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your pivot bar reminds me of our 26-446 but you should compare the style and dimensions to an undamaged part to confirm it's a match. Thank you!

Reply to Thread
Current Photos:
