Window Parts

A home owner from Freeport, FL says:

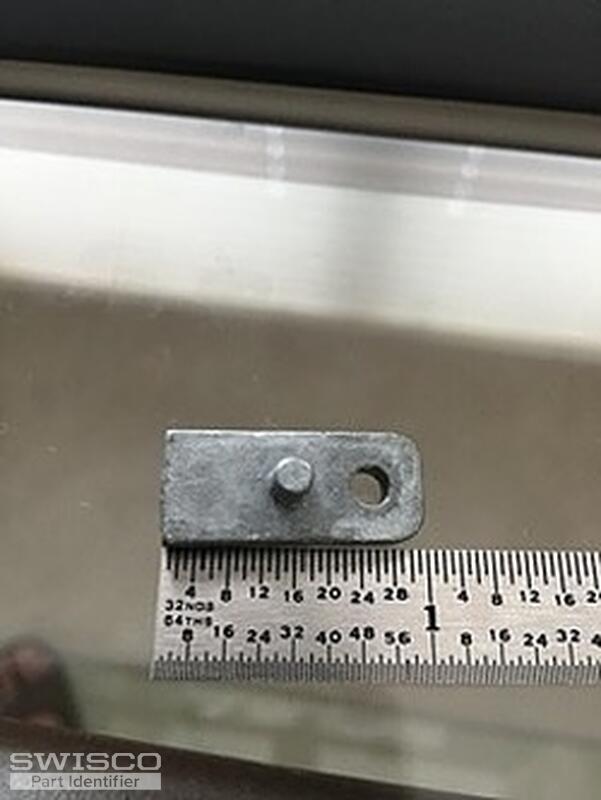

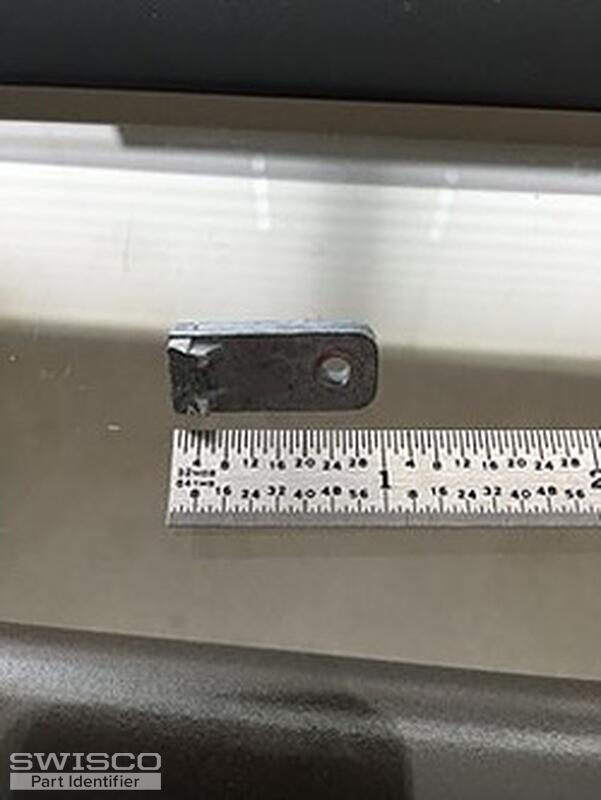

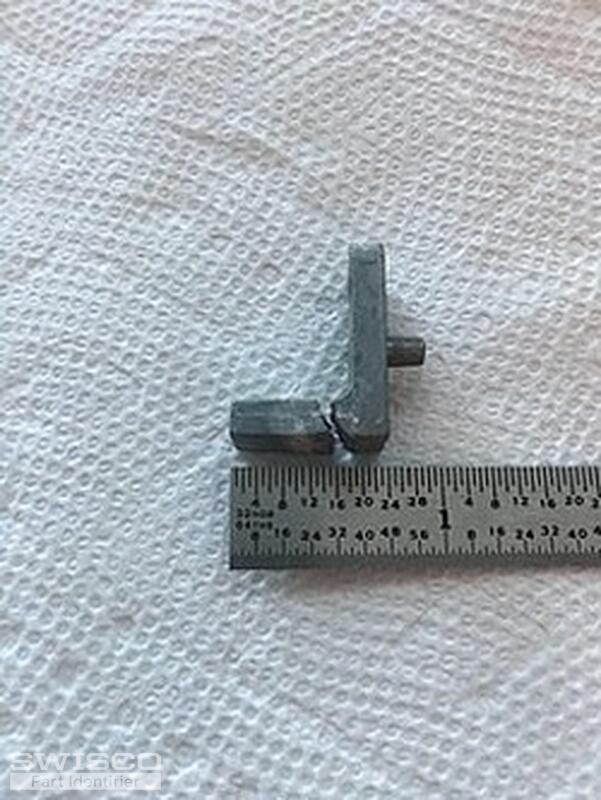

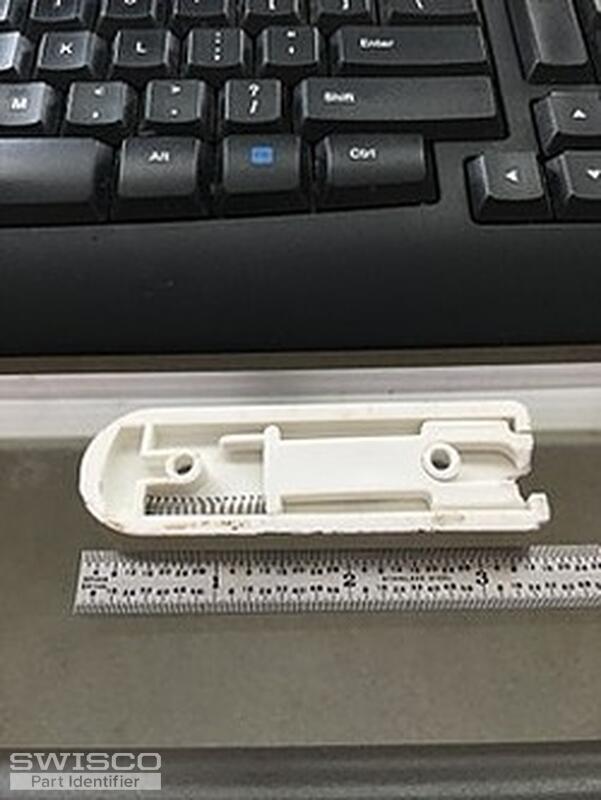

I believe the window brand is General Aluminum based on the "GA" marking on the window. One part is the pivot bar and the other one is the tilt latch. I can't find any place that has any stock of those parts.
Thumbnail of the uploaded file named 1F2AD4C8-B9E1-4FA1-B523-CD731C2023B2.jpeg
Thumbnail of the uploaded file named 273B65BC-2125-4094-B52B-D61A7F5AB0D4.jpeg
Thumbnail of the uploaded file named 00620E06-FA93-4867-9BC4-38A0531DA9D7.jpeg
Thumbnail of the uploaded file named 03479E4E-9910-4BE1-933E-680D58FCF37C.jpeg
Thumbnail of the uploaded file named A8623B7E-D4EC-40FB-9783-B7E76FD820DB.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. For the pivot bar, see our similar 26-361. Look over the dimensions and see if it matches what you need. For the tilt latches, see if the 26-344 could work for you. The style is a little different, but it's fairly close to your specifications. The screw hole center distance is 2" and the total width is 1-1/16". See if that could fit on your sash.

A home owner from Freeport, FL says:
Thanks very much for your reply. Both of your suggestions look very similar except on the pivot bar, the locating pin on my part is in the center of the part and on yours it is further down toward the end of the part. I'm not sure if I would be able to drill a new hole in the window for the different location of the pin or not. Do you have anything else that might match more closely? Thanks again!
Profile picture of Paul
Paul from SWISCO responded:

Bob and I did a little digging on this. We have learned that General Aluminum discontinued your model window. The closest parts we can find for your window are the 26-195 and 26-196 top tilt latches, as well as the 26-361 tilt pivot. Please compare.

26-195 : General Aluminum LH Tilt Latch, 2-3/16
General Aluminum LH Tilt Latch, 2-3/16"
26-195
$2.55
VIEW >
26-196 : General Aluminum RH Tilt Latch, 2-3/16
General Aluminum RH Tilt Latch, 2-3/16"
26-196
$2.55
VIEW >
26-344 : Top Tilt Latch Pair, 2
Top Tilt Latch Pair, 2", 3/4"
26-344
$4.20
VIEW >
26-361 : Tilt Pivot
Tilt Pivot
26-361
$1.95
VIEW >
