Tom from SWISCO responded:
February 1, 2022

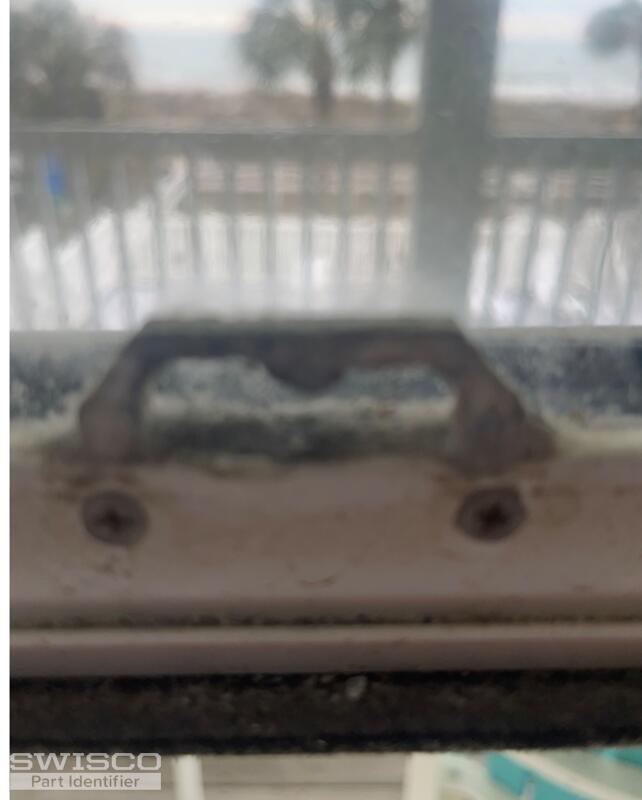

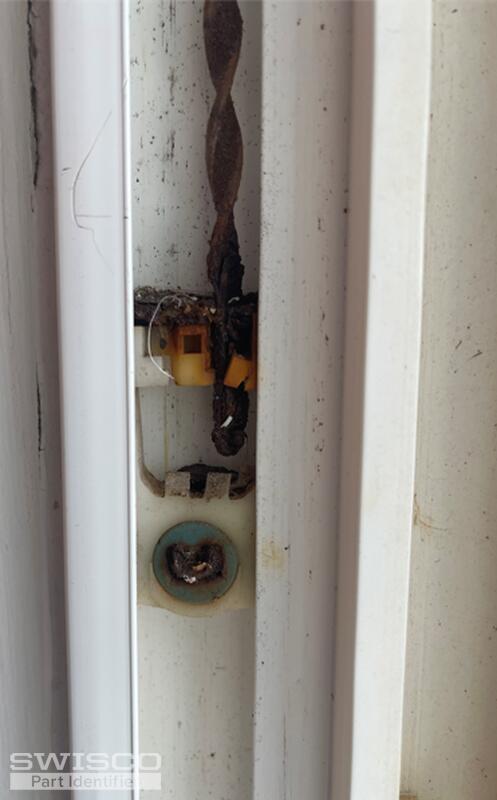

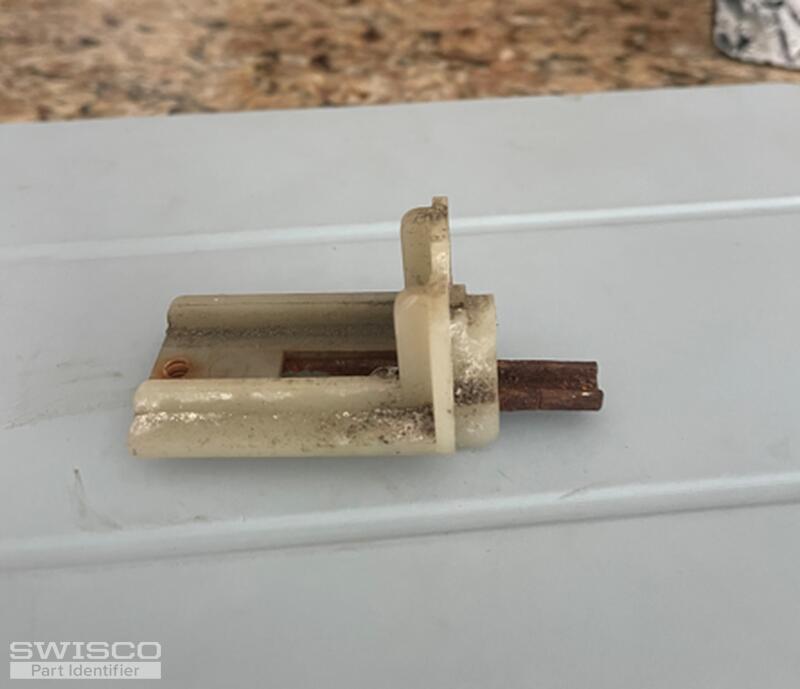

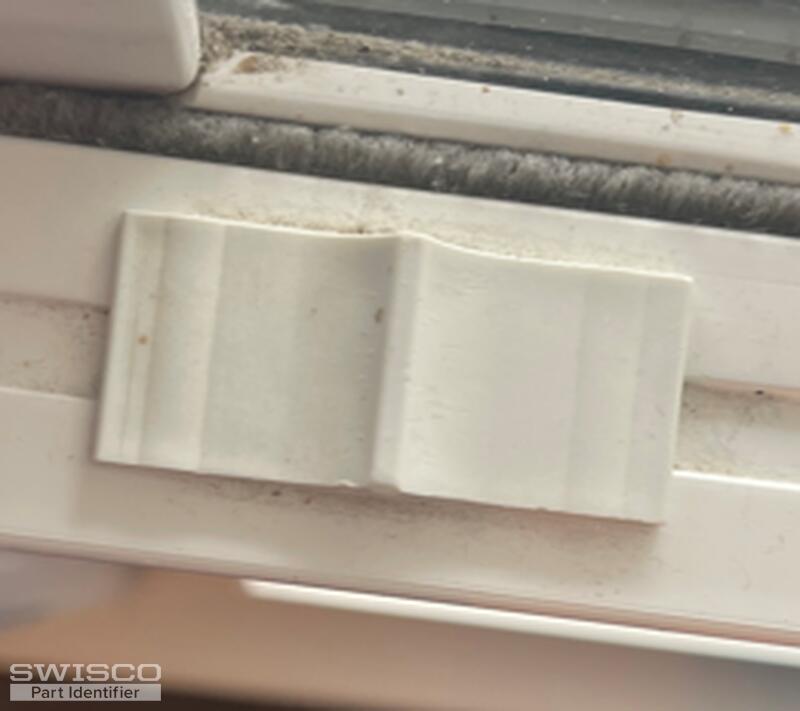

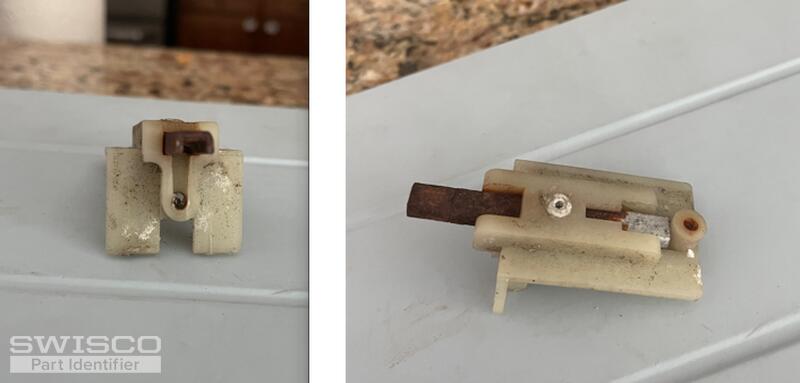

Thanks for reaching out to us. Looks like you need a new tilt latch lever, pivot shoe, lock keeper, and pivot bar, in order of your photos. We should be able to help with each one but I will require more information to get started. Beginning with the tilt latch lever, please remove an undamaged version from the window and measure the distance between the two "prongs" sticking out of the bottom. That is the most important dimension since we need to find you something that plugs into the same holes. For the pivot shoe, you will also need to remove this and get measurements. This time I will need the thickness and width. You can ignore height, that's not as important as the other two dimensions. Same story for the keeper, except this time we will need a photo of it removed. I would also like to know the distance between the two screw holes, center-to-center. Finally, for the pivot bar, see our 26-117 (left) and 26-118 (right) pivot housings and the 26-083 bar itself, which can work in either side housing. Make sure to compare the dimensions we show for each of these three products to your original part to ensure that everything lines up. If you haven't guessed by now, dimensions are extremely important. |
