Window Parts

A landlord from Murray, KY says:
May 11, 2022

Good morning,

I've attached several pictures for windows that I'm refurbishing.

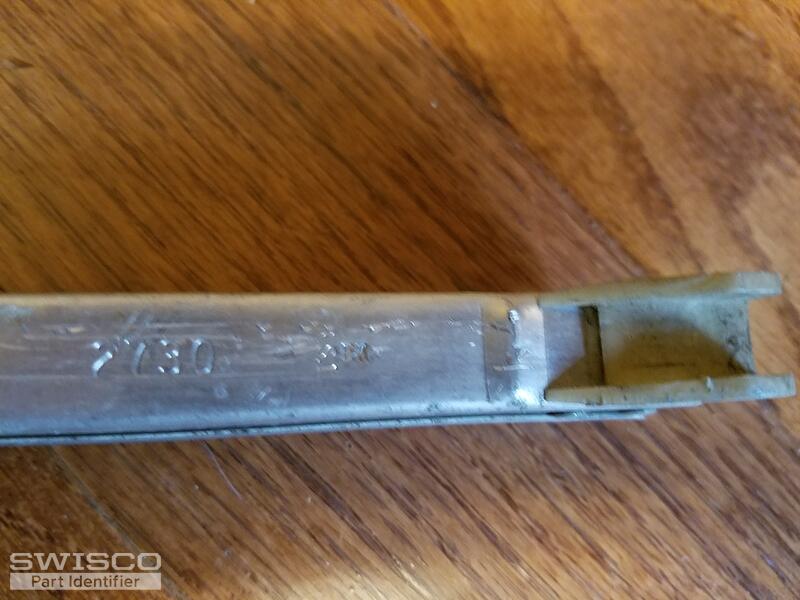

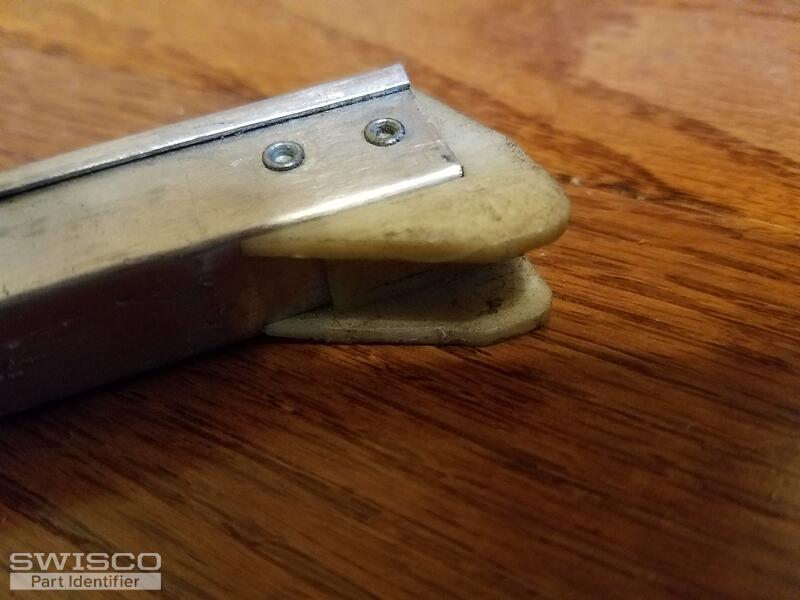

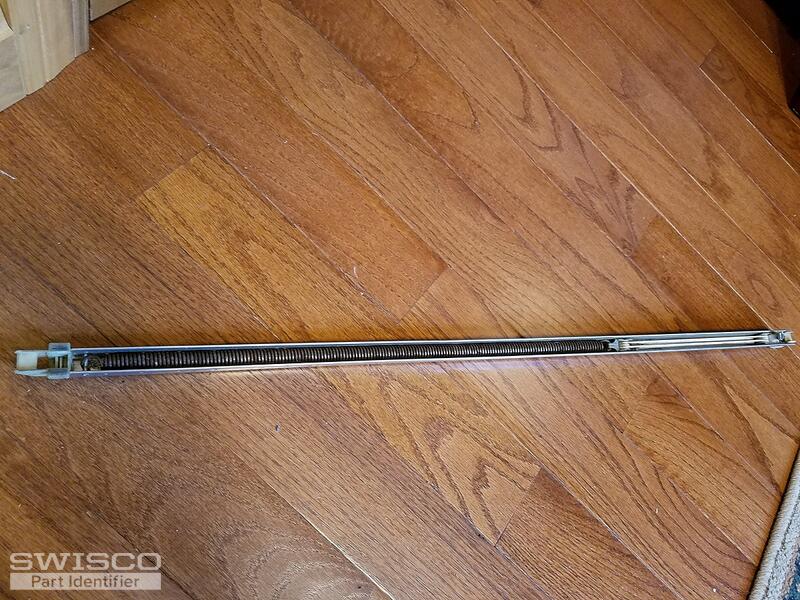

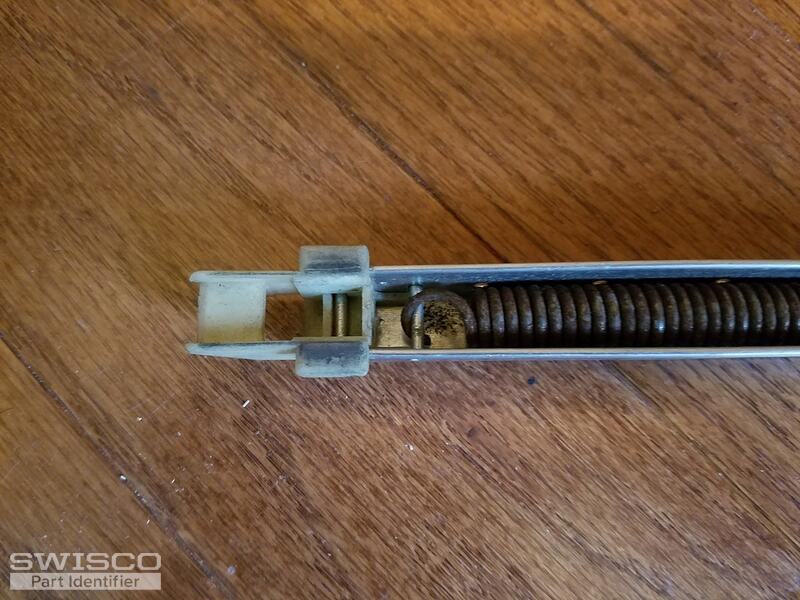

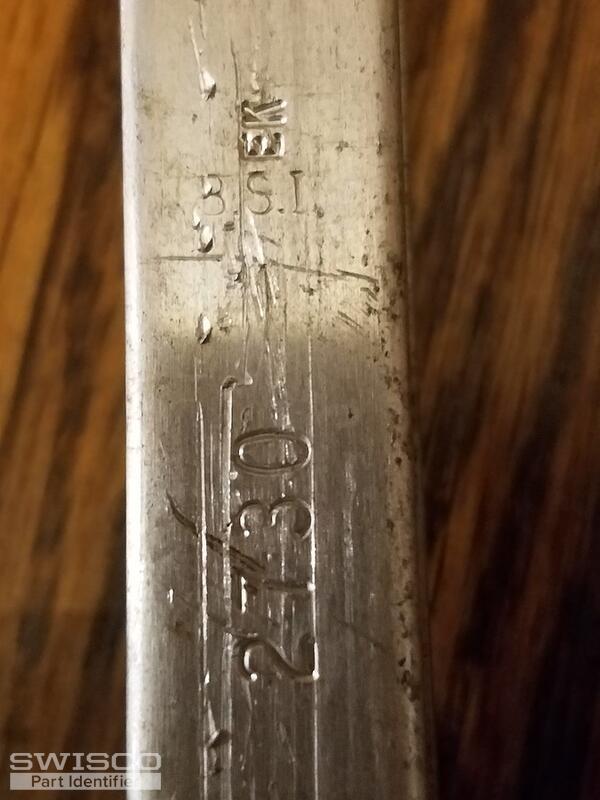

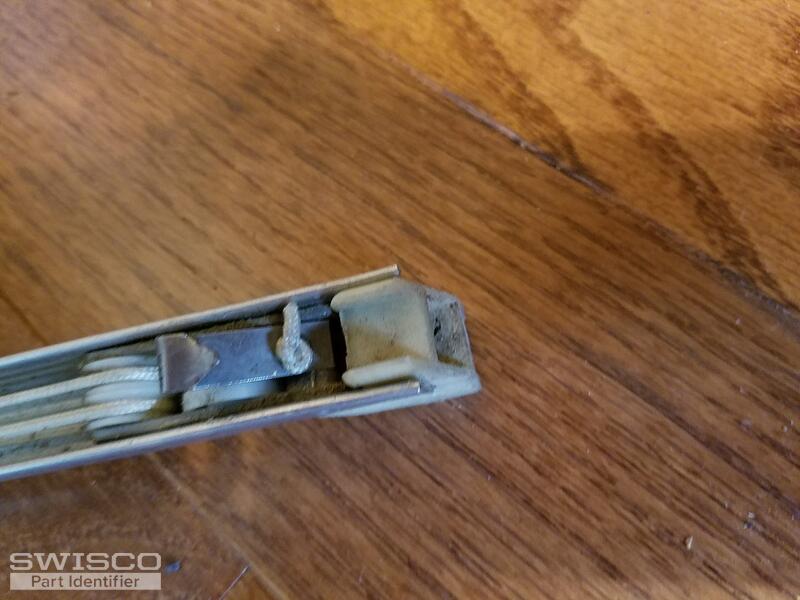

I have 2 sizes of channel balances I need. The one from the pictures are 28 inches long and have 2730 stamped into them.

I didn't take pictures of the other ones, but the components are identical and they are 17 inches long. The only number stamped into them is 1640.

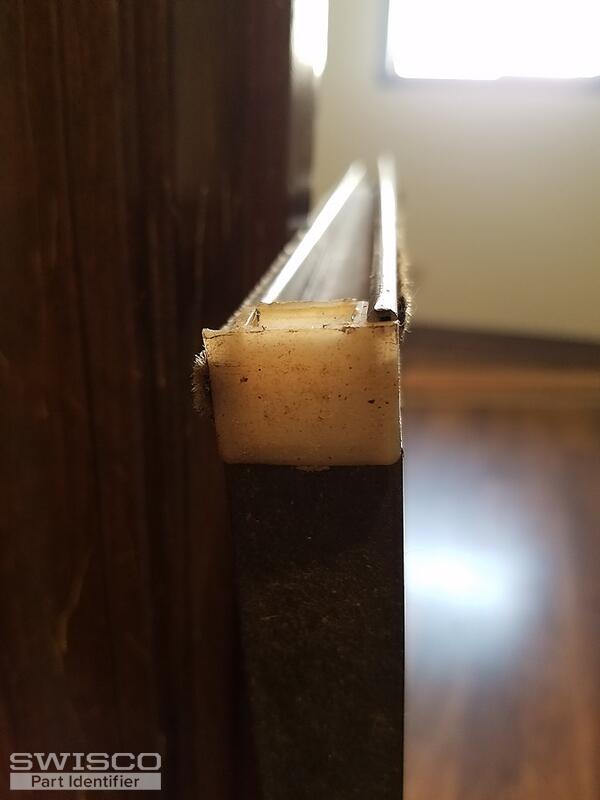

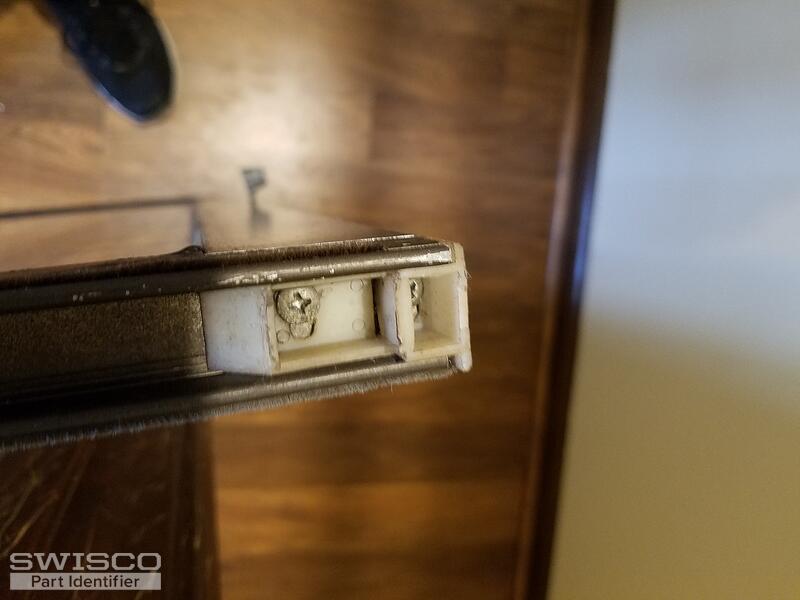

Finally, I need some sash guides and I've attached a couple of images.

Thank you for your help. I didn't know this kind of service was available and am totally pumped! Thank you, Ryan

Thumbnail of the uploaded file named sashguide1.jpg
Thumbnail of the uploaded file named sashguide2.jpg
Thumbnail of the uploaded file named 20220510_205723.jpg
Thumbnail of the uploaded file named 20220511_080928.jpg
Thumbnail of the uploaded file named 20220511_080954.jpg
A landlord from Murray, KY says:
May 11, 2022
A few other pictures of the channel guides
Thumbnail of the uploaded file named 20220511_080924.jpg
Thumbnail of the uploaded file named 20220511_080945.jpg
Thumbnail of the uploaded file named 20220511_081003.jpg
Profile picture of Casey
Casey from SWISCO responded:
May 11, 2022

Hello,

Take a look and compare the specifications of the S395-28 channel balance to yours. You'll need 2730 strength options for the 27" balances and 1640 for the 17" balances.

We'll need to see photos of your top sash guide fully removed from the sash from multiple angles, along with written-out dimensions, to narrow down your replacement options. Thank you!
