A home owner from Ft. Myers, FL says:
I have Florida Extruded windows in Bellini of Miromar Lakes. Balance stamp is 22E. Length 23". I confirmed top is 19-005 and believe bottom is 15-005 but the actual measurement is 7/8ths, not 1". No photos for this question.



1. Do you sell these screen spacers Approx large leg 3/8", next measurement 1/4", 1/8", 1/2" other leg 1/4"?
1. Is the 2250 the correct balance?
2. Photo 011 - Do you sell this trim - Leg approx 1/2", top 1/4"?
3. Photo 009 - Do you sell the spline/"T" weather striping approx.1/4" felt and inner T is approx 3/16"
4. Photo 834 do you sell bottom sash weather striping approx 1/2" curled under sash 1/8"
5. Photo ...746 - Do you sell the screen springs that push against frame?


Thumbnail of the uploaded file named 20230116_122746.jpg
Thumbnail of the uploaded file named 20230116_122834.jpg
Thumbnail of the uploaded file named 20230116_122909.jpg

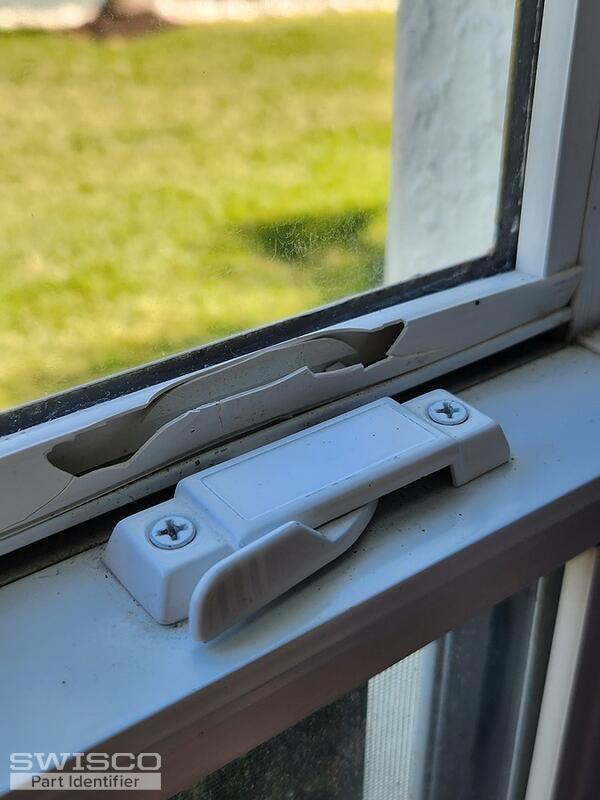

Thumbnail of the uploaded file named 20230116_123011.jpg

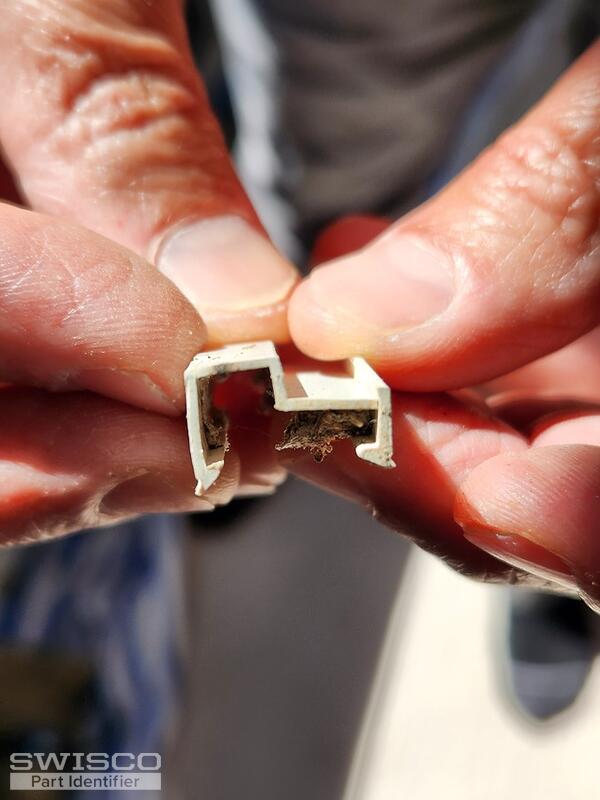

Thumbnail of the uploaded file named 20230116_125215.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We can supply the balances you need with the 19-005 top and 7/8" deep 15-029 bottom fittings but it will need to be a custom order. We'll need you to confirm the number of balances that you need, with the minimum order being two, to send you an order link and price quote.

As for the screen spacer that you mentioned, a photo of the part installed would help us confirm if we could supply a suitable replacement.

We would also need to see an end profile photo of your window glazing uninstalled to compare to our inventory here.

Take a look at the 58-127 wool pile, which has the 3/16" backing and 1/4" height that you need.

We would need to see your black sweep seal fully removed from the sash to determine how it installs and if we carry anything similar.

You can also view our selection of screen tension springs here to compare to your original part. Thank you!
