Window Parts

Quick Learner from California

Jun 18, 2024 3:04 pm

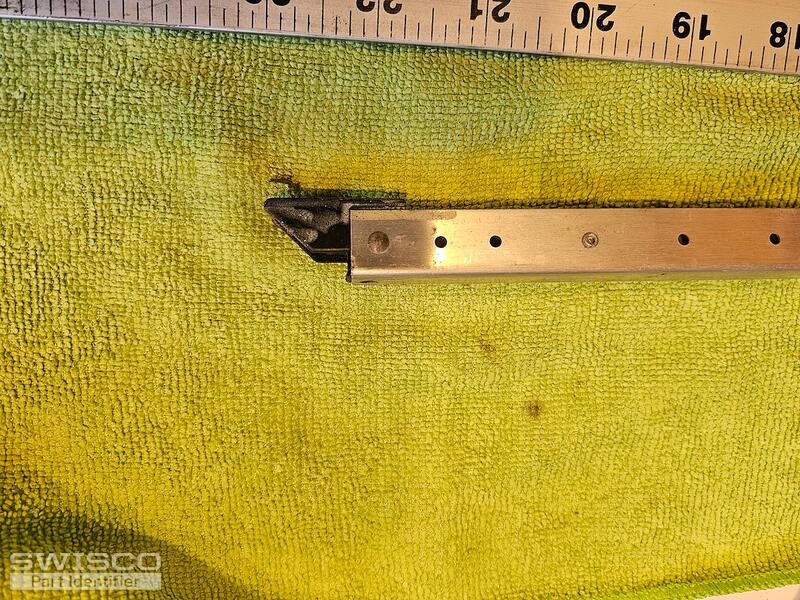

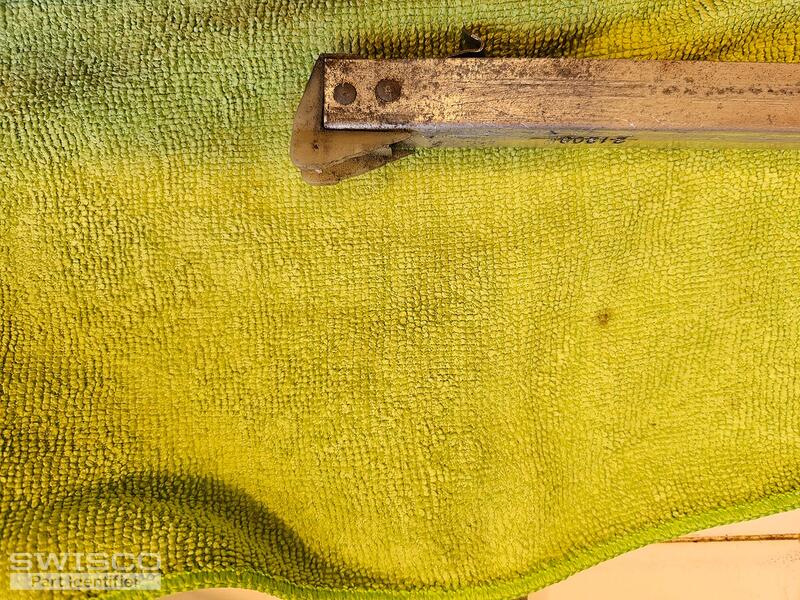

I need four of these channel balances. I also need the part that attaches to the top corner of the window, I will send a photo separately.

5 user uploaded images

4 Replies

+ Add a Comment

Quick Learner from California

Jun 18, 2024 3:06 pm

I need four of these corner pieces

1 user uploaded images

Emily from SWISCO

Jun 20, 2024 2:20 pm

EXPERT

Hey there!

Thanks for reaching out to us. It looks like your top and bottom fitting lack wings. With that in mind, I suggest the Series 351 or Series 390 depending on the depth of the bottom shoe. You'll also want to select the 2120 stamp option for your replacements.

Comparison of the S351 and S390 balance shoes.

I don't immediately recognize the top sash guide. Can we see photos of it removed from the window along with written-out dimensions?

Quick Learner from California

Jun 21, 2024 8:43 pm

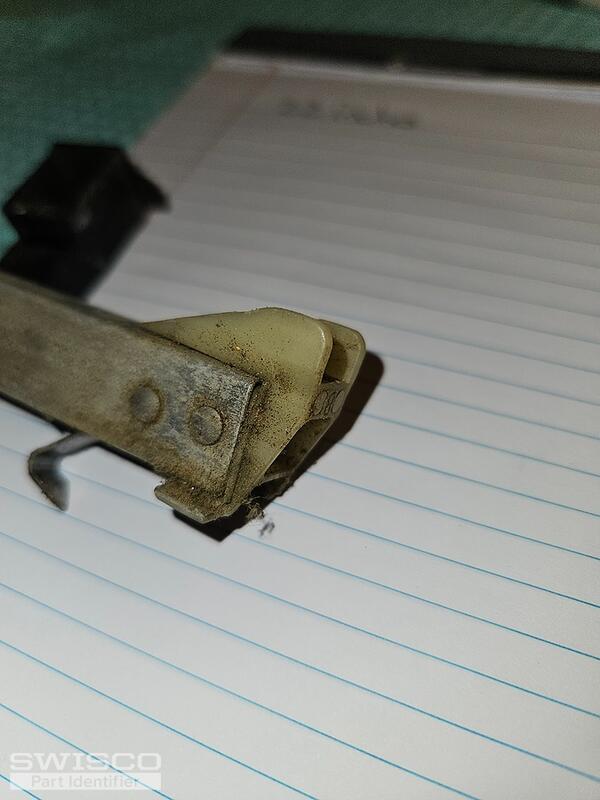

Here are more photos. The channel is 22"x1/2".

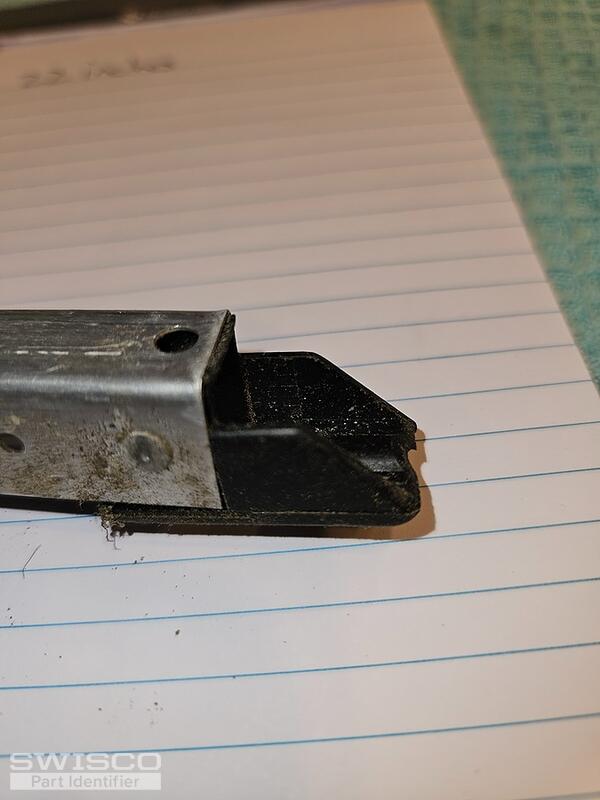

The bottom fitting does have wings. From front to back measures 1 1/16".

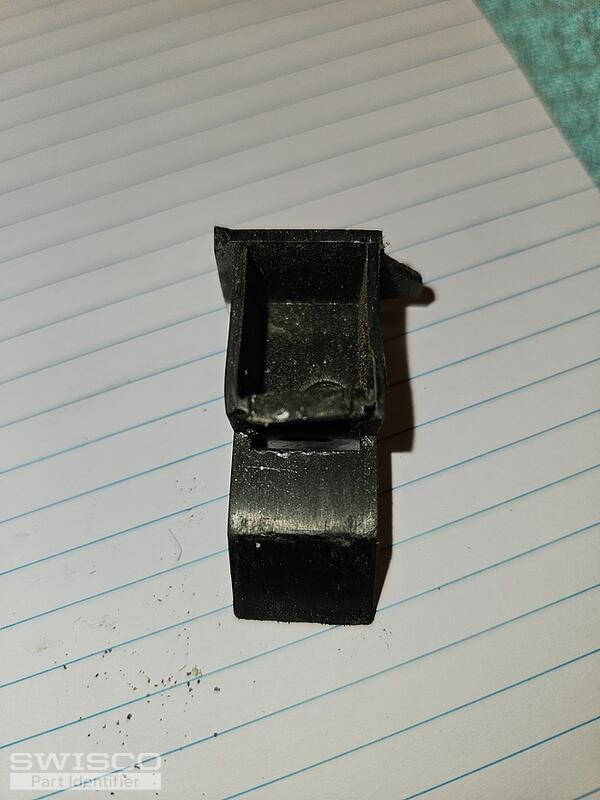

The top sash guide is 5/8"x5/8"x1 5/8".
Hope this helps!

3 user uploaded images

Emily from SWISCO

Jun 24, 2024 10:46 am

EXPERT

Thanks for getting back to us. If the top is non-winged and the bottom fitting has wings, our best match would be the S350-22 (2120) channel balance. Note that the bottom fitting measures 1-3/32" as shown below. Unfortunately, we do not carry a winged bottom fitting that measures exactly 1-1/16" deep.

Close up view of the S350 balance top.

Close up view of the S350 balance shoe.

As for the top sash guide, we do not carry an exact match but the 18-203 may be worth considering. Review the dimensions below to see if you could adapt this to work for your repair. Please note that you may need to drill a new hole through the guide to install it.
