Channel Balance Needed

A quick learner from Port St Lucie, FL says:

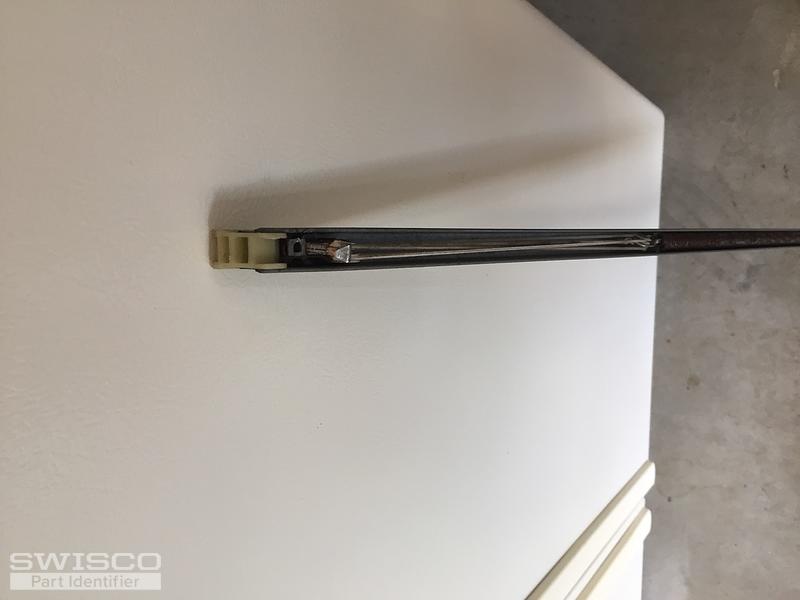

I am sending you photos of the channel balance I need. I will need a quantity of 4 with all plastic parts connected plus an additional 4 channel balance top winged and 1 balance clip attachment.
Thumbnail of the uploaded file named 893FBB9B-0B22-4694-815D-35804073876E.jpeg
Thumbnail of the uploaded file named 3ABC3535-EF94-4E72-8FB0-A8B1834ECBBF.jpeg
Thumbnail of the uploaded file named 5C63387C-4DD4-47AC-AEA6-FD87E754F850.jpeg
Thumbnail of the uploaded file named BDDB49EE-968B-4693-9C0C-040CBFCE1C40.jpeg
Thumbnail of the uploaded file named 6249159C-6C28-425A-ACA7-013CDB39D5C0.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Can you tell me the length of the metal channel, not including the nylon fittings on either end? Can you also show me a clearer picture of the other nylon fitting? Finally, that stamp code is a bit hard to read. Can you give me the exact weight of the window sash? That exact weight will tell us what new stamp option you need.

A quick learner from Port St Lucie, FL says:
Length of metal channel, not including the nylon fittings = 37 inches

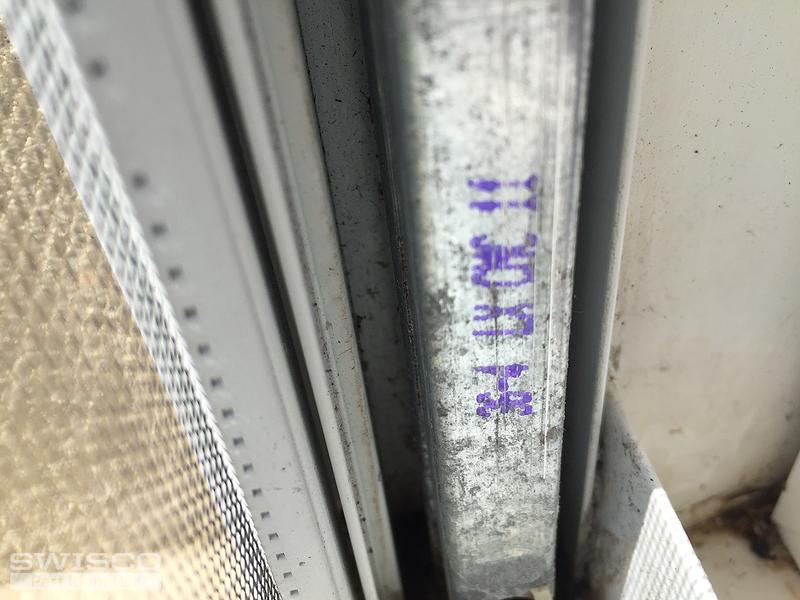

Stamp code = 36-4 LX CMC 11
Profile picture of Bob
Bob from SWISCO responded:

Thanks for the response. I still can't see the top nylon fitting, but this is enough to narrow it down to three different balances. If the top nylon fitting has wings, or side tabs like the 19-005, then you likely need our S395-37, with a stamp option of 3640. Look it over to confirm.

If the top fitting lacks wings, such as our 19-002, then you have either our S351-37 or S390-37. The only difference between these two balances is the depth of the bottom nylon shoe, or 'heel-to-toe' measurement. See the image below to compare. In either case, choose a stamp option of 3640.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
A quick learner from Port St Lucie, FL says:

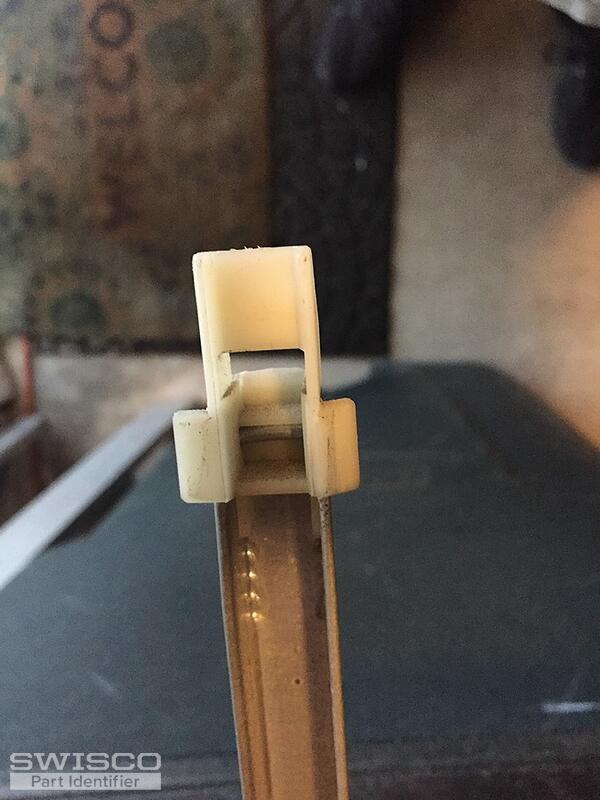

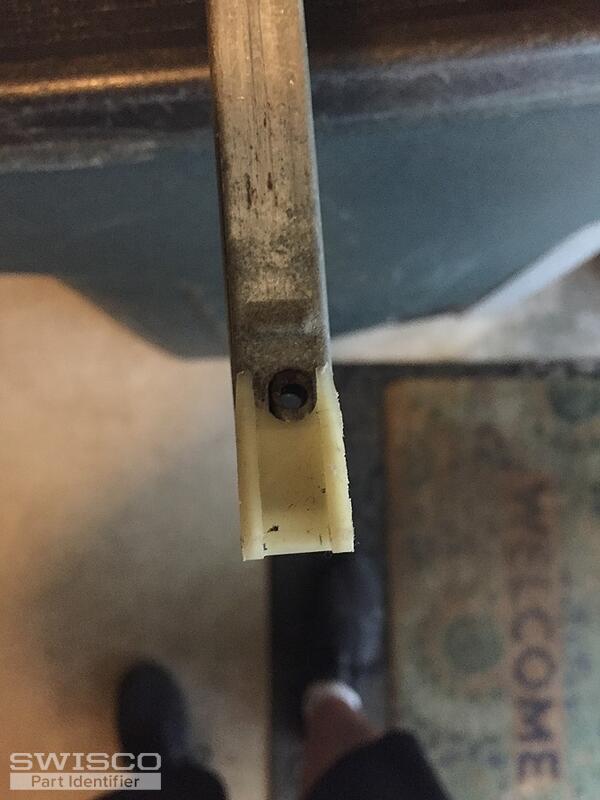

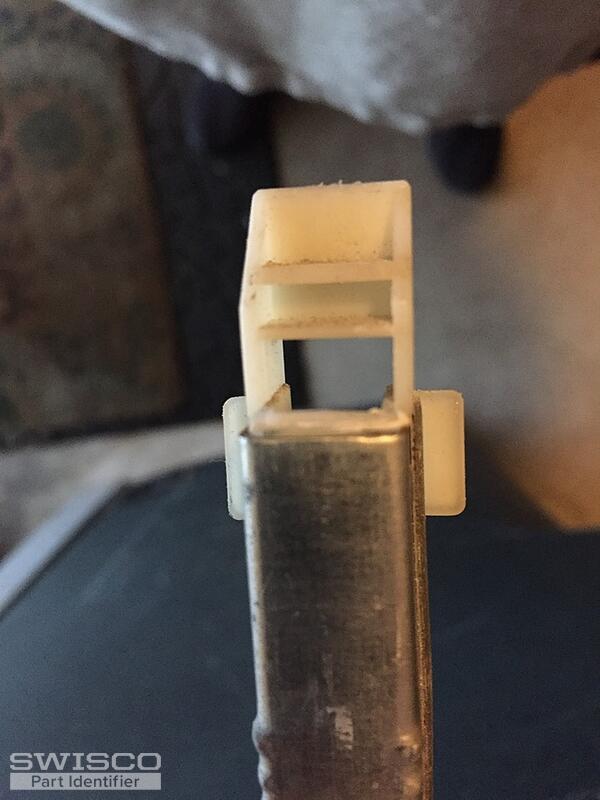

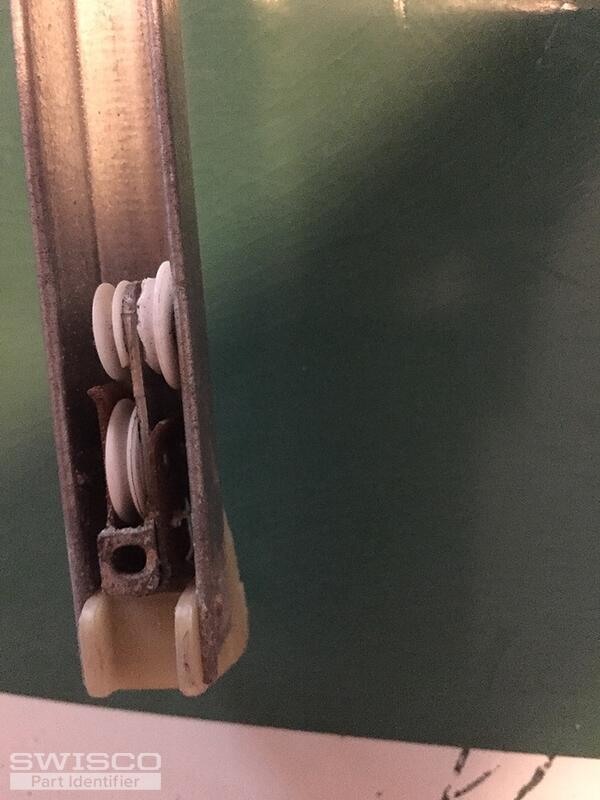

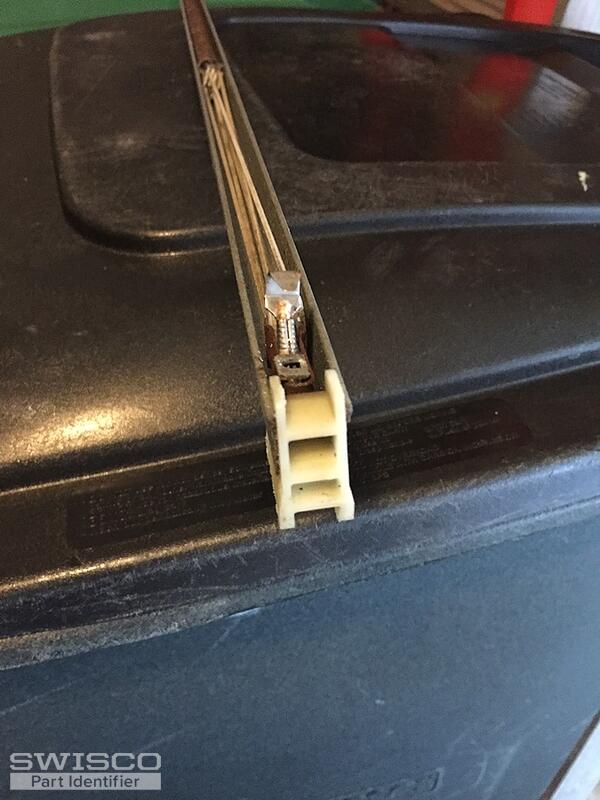

Are these better photos to give you a clearer picture?
Thumbnail of the uploaded file named IMG_1713 (2).jpg
Thumbnail of the uploaded file named IMG_1714.JPG
Thumbnail of the uploaded file named IMG_1715.JPG
Thumbnail of the uploaded file named IMG_1716.JPG
Thumbnail of the uploaded file named IMG_1718.JPG
Profile picture of Bob
Bob from SWISCO responded:

It sure is, thanks. This is an S395-35, with a stamp option of 3460. Let me know if you have any other questions.

A quick learner from Port St Lucie, FL says:
Thank you!
