Window Pivot Bar

Quick Learner
I’m trying to identify a window pivot bar.
Measurements:

Overall length: approximately 2-3/8”
Hole spacing: 3/4” center-to-center
Two mounting holes (one round, one slotted)
Flanged head with tapered end

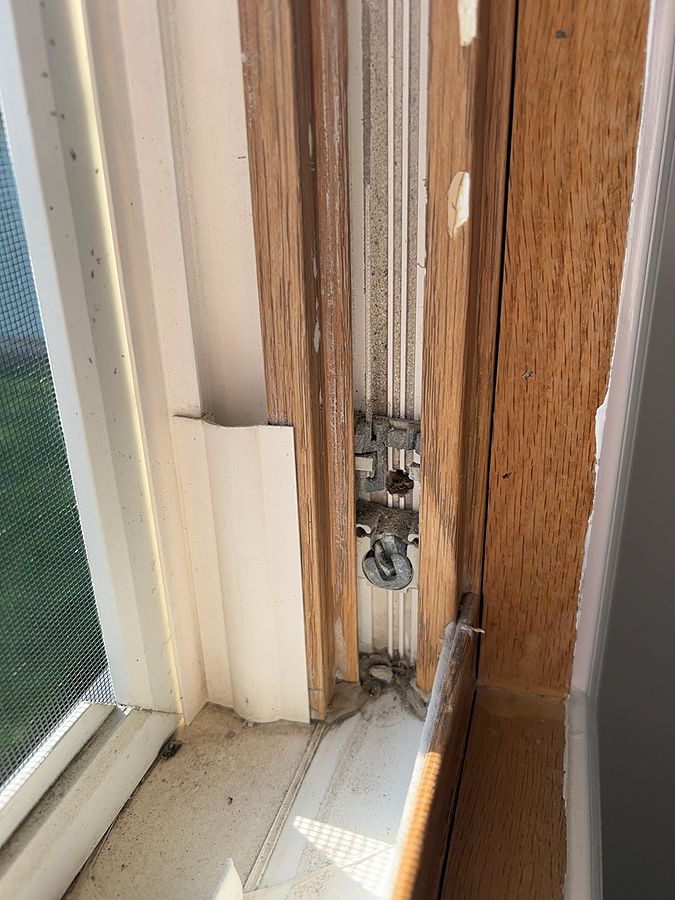

Attached are photos of the pivot bar, the sash where it mounts, and the pivot shoe in the jamb.
I cannot locate the window manufacturer.

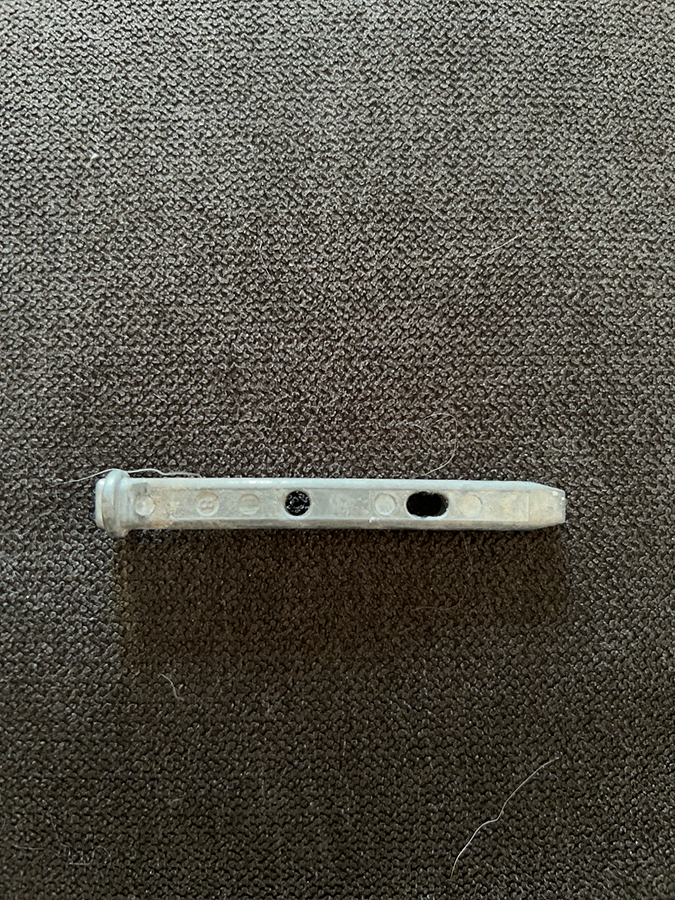

This is the intact pivot bar, the other snapped in half.
5 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. Start by comparing to the 26-030 Pivot Bar. While the overall length may differ, if the pin design and the distance between the pin and the holes matches, this could work for you. Please compare.

Detail of 26-030
Detail of 26-030
Alternate view of 26-030
Alternate view of 26-030
