Window Pivot Pin/Bar, stamped 14110

Home Owner from Cincinnati, Ohio

Jan 23, 2021 11:22 am

Hi,

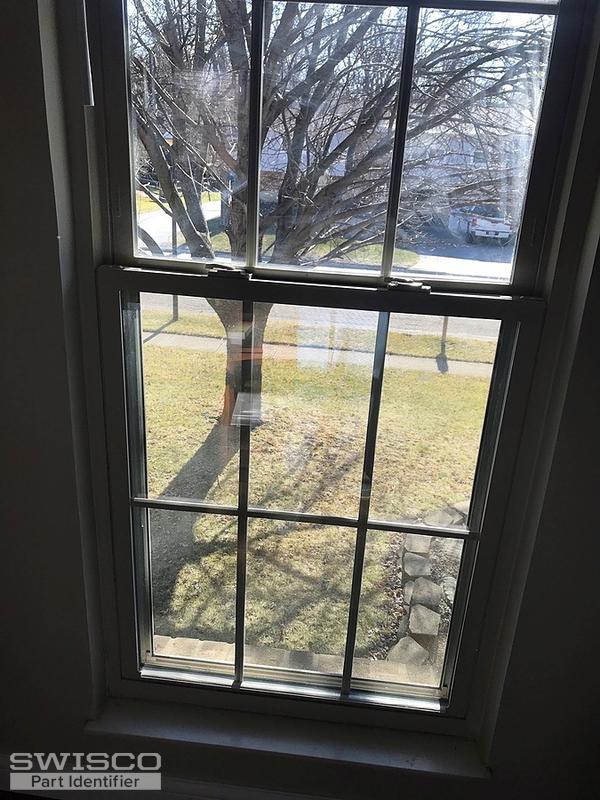

I broke the pivot pin on my double hung window and I need a replacement , but don't know what kind it is. I don't know what type of window it is either. The windows are 6 ft by 3 ft double hung.

4 user uploaded images

4 Replies

Home Owner from Cincinnati, Ohio

Jan 24, 2021 12:06 pm

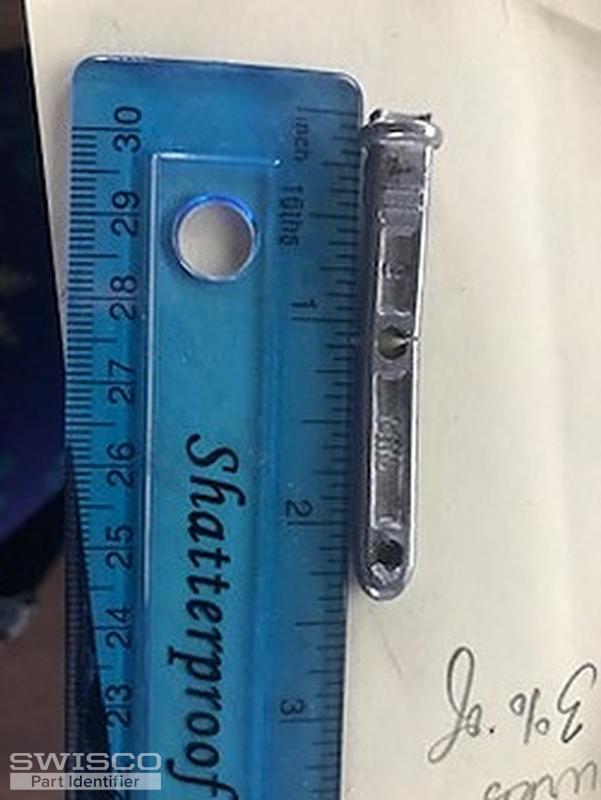

okay! So update. Alside windows A201 installed in 2011. The window pin is rounded on one end and just over 2-1/4 (almost 2.5") inches long with the first hole being just over 1 inch from the rounded end and then the second hole is exactly 1 inch from that. Please help me find a pin that I might be able to use. THanks! the number that is stamped on the pin is 14110.

1 user uploaded image

Casey from SWISCO

Jan 26, 2021 11:37 am

Hello,

We should be able to supply this pivot bar but we don't currently carry it in our inventory. We are working on bringing them in for you and will let you know as soon as they're available!

Casey from SWISCO

Feb 11, 2021 1:54 pm

Good news! The wait has paid off and our new 26-466 pivot bar is now available for purchase. We appreciate your patience and please let us know if you need anything else!
