Window Repair for old sliding window

Question

I need couple of things my window is a old sliding window

Need that broken piece also there is the holder metal that holds the bar I try to take it out but I couldn't . Do u guys have that peace and also how can I take it out . Second I need the top 2 of that white locked on top of window . Please give me a call so I can explain it better .

Thanks

Tom · Accepted Answer

Hello! Looks like you need a new tilt latch and pivot bar. Starting with the tilt latch in your second photo, I would look at our 26-243 and 26-244. These are similar in design to yours but I highly recommend comparing our dimensions to your measurements to confirm.

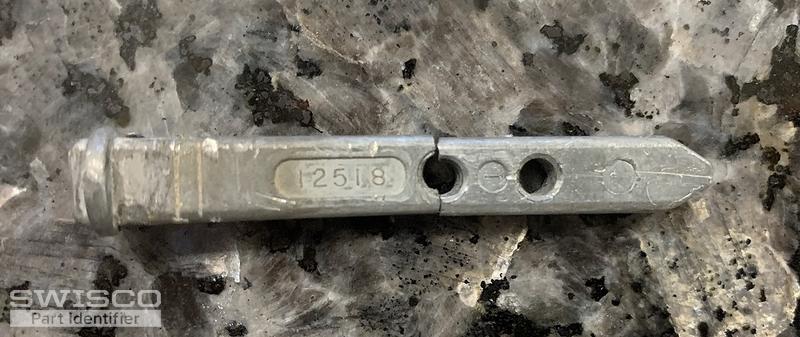

For the pivot bar, there could be a few different options. I would like you to get a hold of an undamaged version of this part and tell me the measurement from the center of the first screw hole to the tip that goes into the shoe. If you look at the example photo below, this measurement is given as 1-3/8".

343

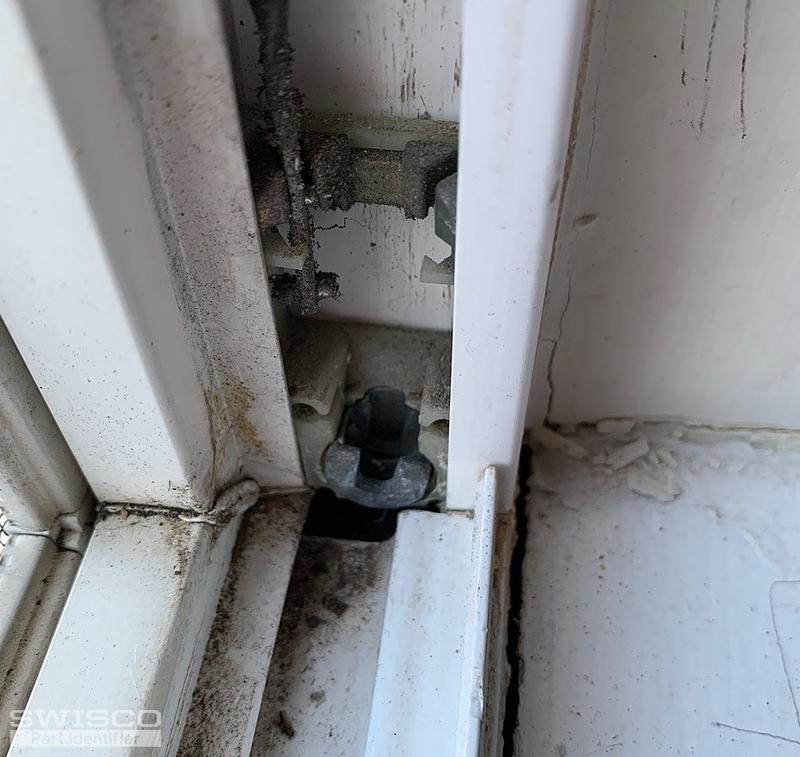

As for removal, it's quite simple. The pivot bar fits into a metal cam in the shoe. That metal cam is U shaped; the opening is open so that you can slide out the pivot bar. You'll have to rotate the pivot bar and cam in order to slip it out.
