Window Replacement Parts

Home Owner

May 25, 2025 7:34 pm

Hello,
There are 2 parts I'm trying to find replacements for.
The first is a channel balance with the marking "22F BSI RL". It is 22" long.

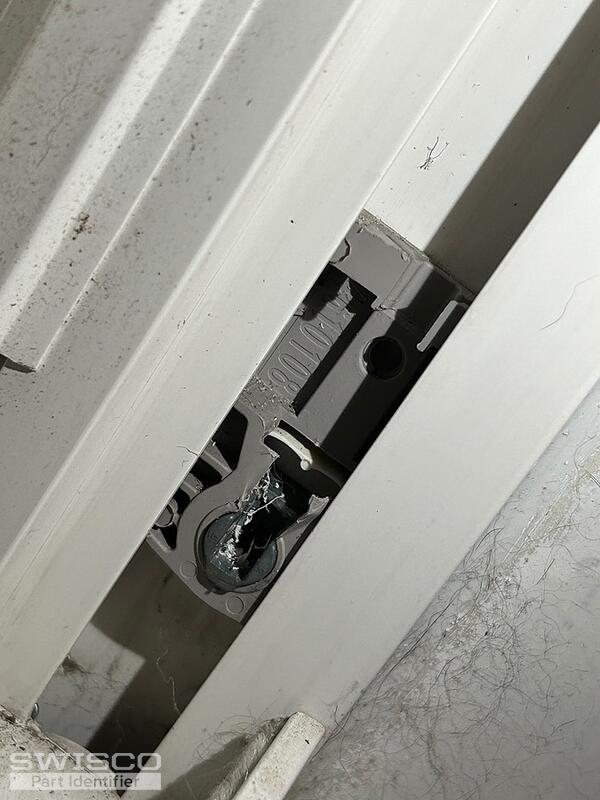

The second part is the shoe. This part has the marking "4610108".
The channel is 1.25" wide. Please let me know if you need any more information.

4 user uploaded images

4 Replies

Emily from SWISCO

May 29, 2025 11:25 am

Hello there!

Thanks for waiting during this busy season. Your balance appears to match the S770-22. This is designed to install at the top of the window with a screw, but it looks like your balance may use a clip of some kind. Could you show us a photo of the top of the balance? We'd also like to see the top of the window track.

As for the pivot shoe, the 15-135 looks like a good pick but review the specifications and see if you agree.

Alternate image for 15-135

Home Owner

May 29, 2025 3:17 pm

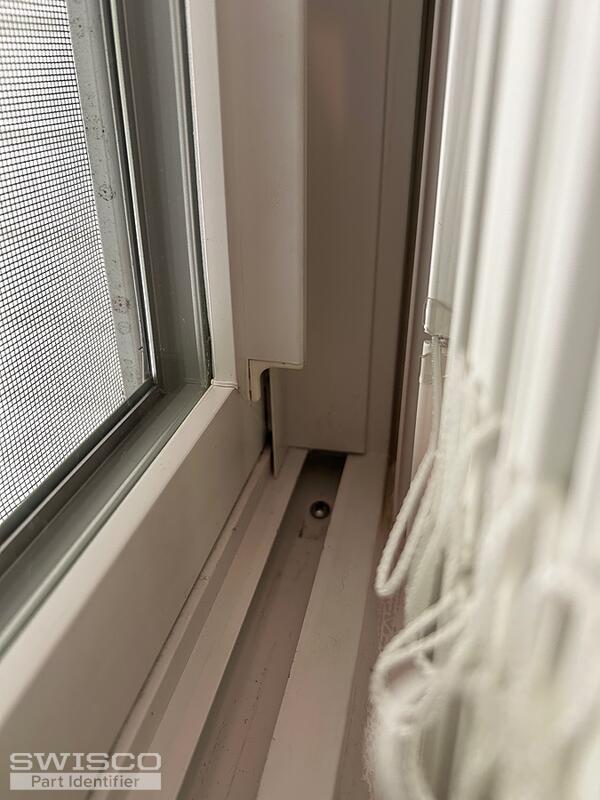

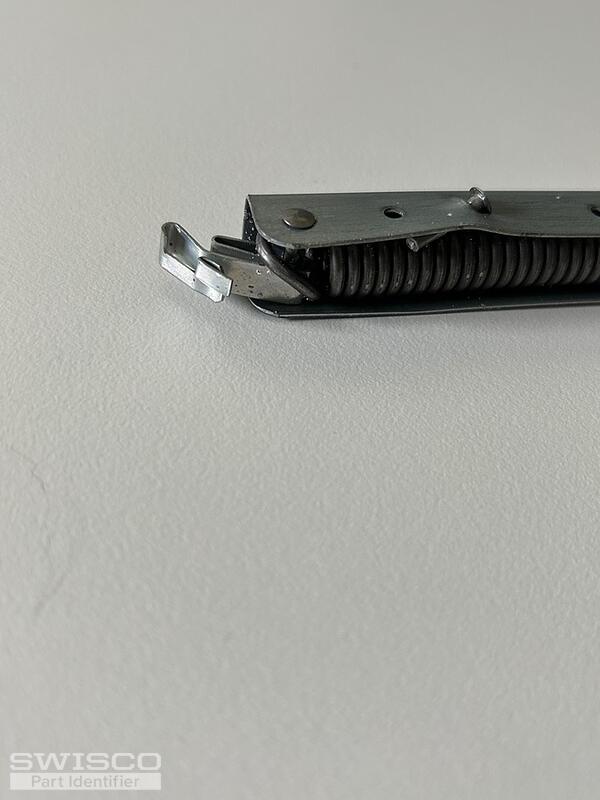

Thank you for the reply! I have attached photos of the clip on the balance and the window track that the balance was removed from. And yes, it was attached with the clip, but I'm not sure that I'd be able to find a matching clip. The window track covering at the top also doesn't remove easily to see what the clip hooked into. I would be fine with attaching the new balance with a screw as long as that's recommended.

2 user uploaded images

Emily from SWISCO

Jun 2, 2025 8:47 am

Thank you for the additional photo and information! We don't recommend drilling a new hole as it might damage the jamb. We can still help, but this must be a custom order since your old balance installs with an S-clip like the 19-029.

I'll email you a purchase link for (2) S770-22 balances with the 22F stamp and a rivet in the top hole. Note that the pivot shoe and S-clip aren't included in the link, so don't forget to add your needed quantity to your cart separately.

Please let me know if you have any questions!
