Home Owner from 32225

Nov 8, 2020 10:20 am

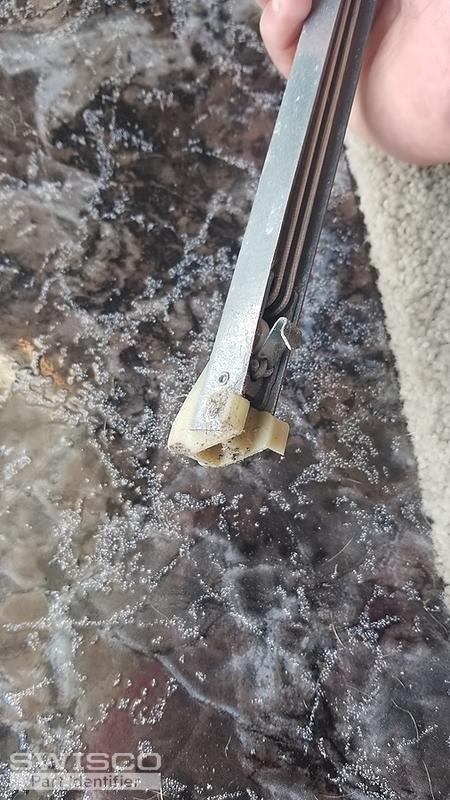

I need 12 total components (a pair each for 6 windows) that will replace the broken parts noted in the photos so that spring remains in tact to open the windows as necessary.

2 user uploaded images

4 Replies

Casey from SWISCO

Nov 11, 2020 11:11 am

Hello,

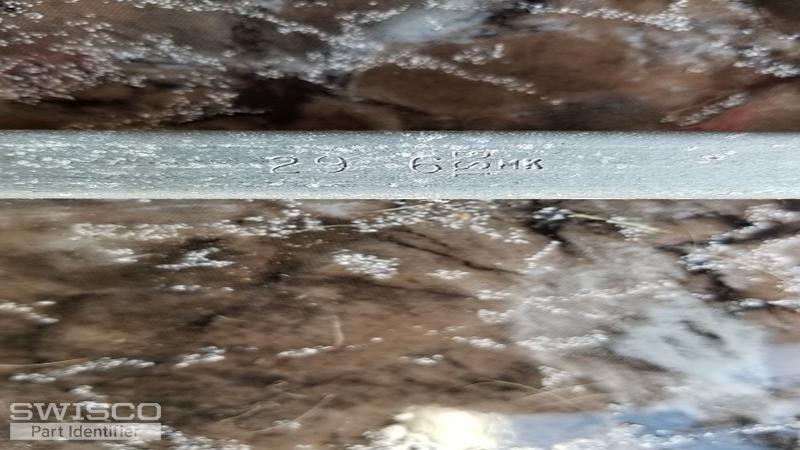

We'd be happy to help but we would need to see the balance fully removed from the window so that the bottom attachment is also visible, as well as the stamp code on the metal channel, to identify a possible replacement. Thank you!

Home Owner from 32225

Nov 15, 2020 9:11 am

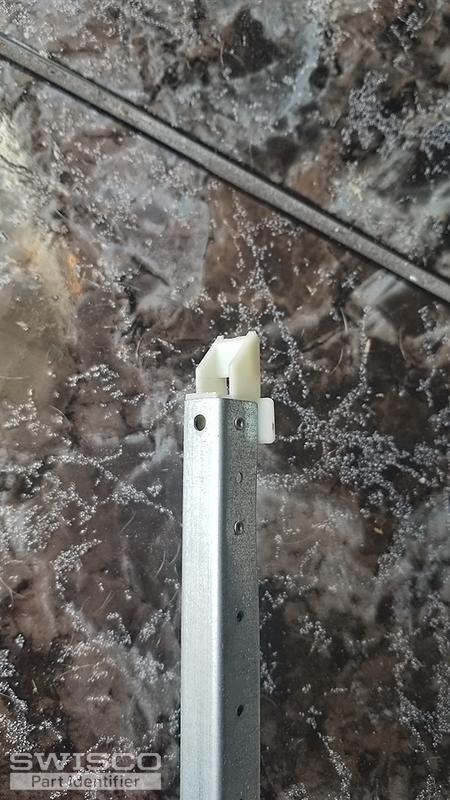

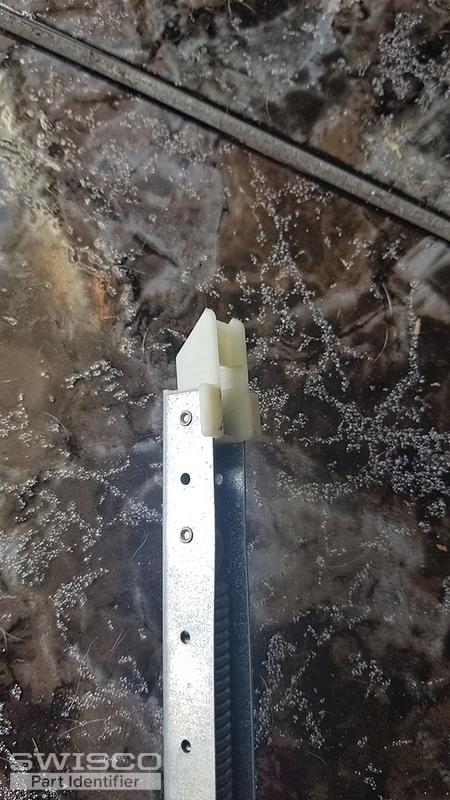

Thank you for your help on this, see attached:

5 user uploaded images

Casey from SWISCO

Nov 16, 2020 11:53 am

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2960 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
