Window Sash Balance

Home Owner from Lake Placid FL
Looking for a replacement window sash balance.  2940 is the only part number that I can find on the current one that I need replaced.  1/2" width.  For a non tilt window.
5 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. I am confident we can replace this channel balance, but that stamp is not a part code. It tells us the balance's strength. If you could remove the balance and send us photos of the nylon attachments on both ends, we'll do our best to help. Many thanks.

Home Owner from Lake Placid FL

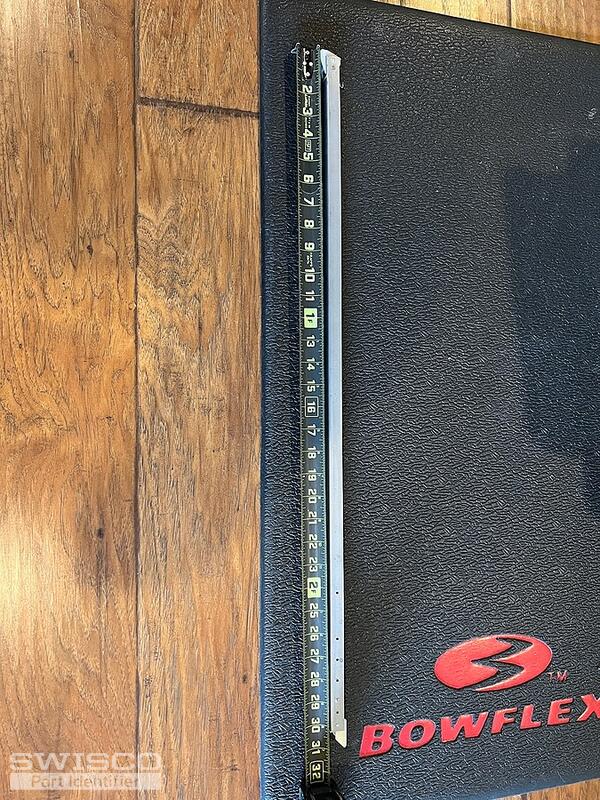

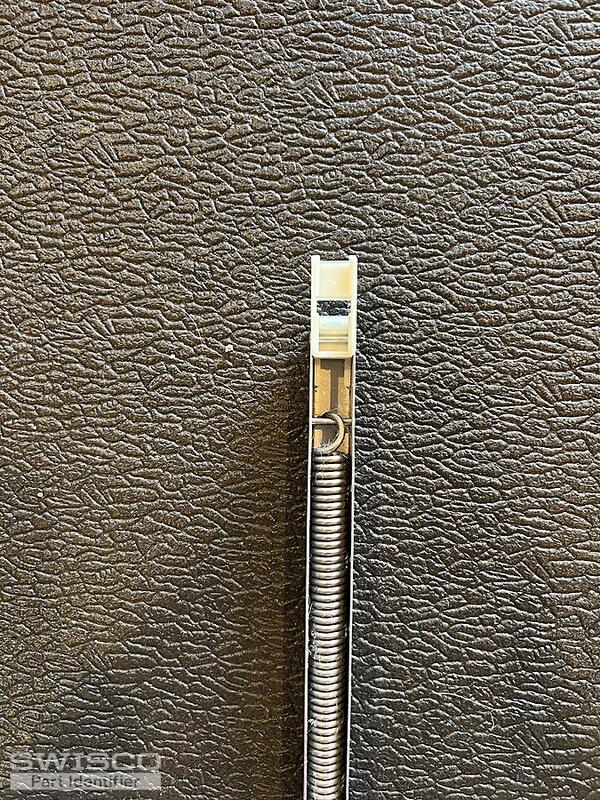

This is what I currently have
5 user uploaded images
Home Owner from Lake Placid FL

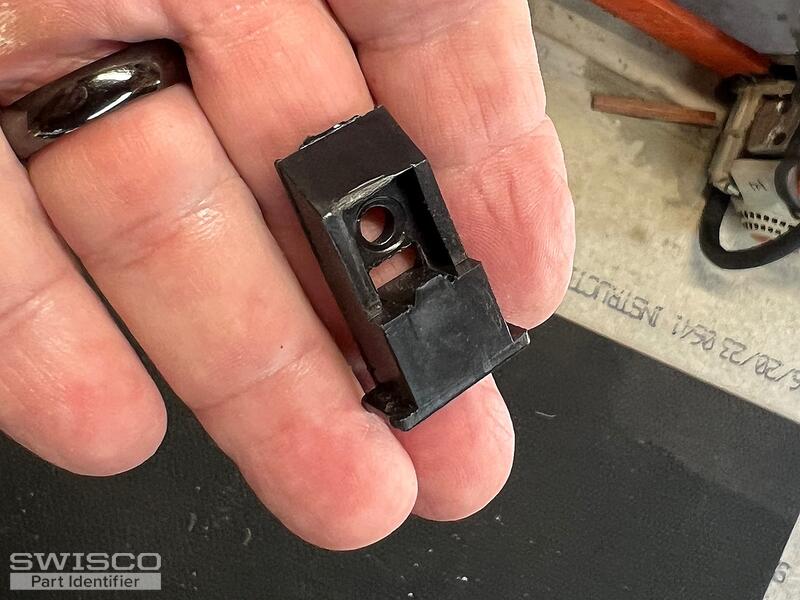

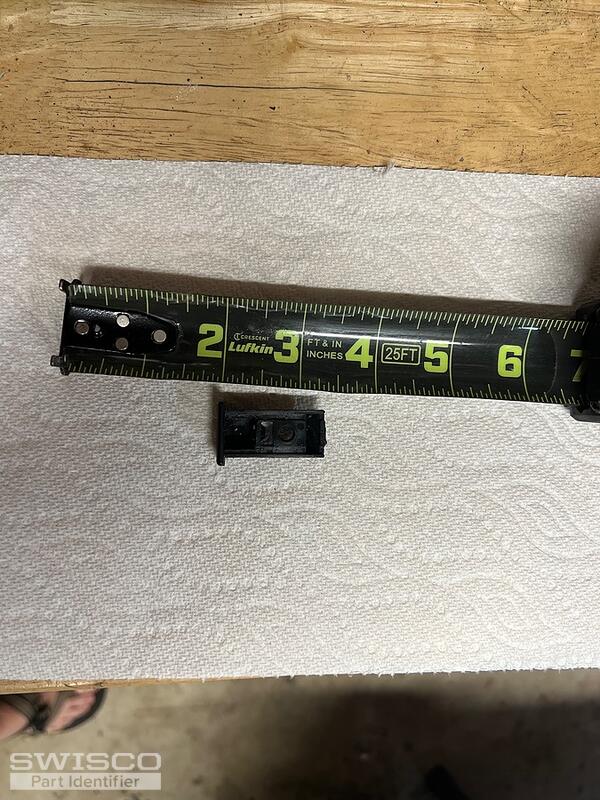

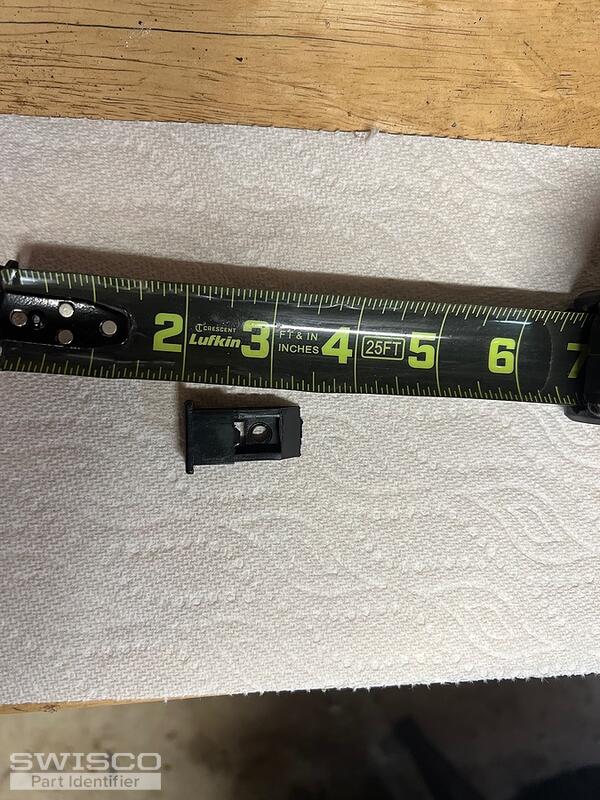

I'll need these sash guides as well
3 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for getting back to me. For the balances, start by comparing to either the S351-30 or S390-30. The only difference between these two channel balances is the depth of the bottom shoe, as shown below. Measure your old balance's shoe depth to see what matches best. For a stamp option choose 2940.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

I am afraid we don't have an exact match for this Top Sash Guide. It reminds me a little of the 18-201, so please start by comparing and seeing if this matches what you need.

Dimensions for 18-201
Dimensions for 18-201
Alternate view of 18-201
Alternate view of 18-201
