Window Sash Balancer

Quick Learner from Burbank Ca.

Feb 17, 2013 9:09 pm

Hello:

I need 2 replacement window sash balancers for my small Non-Tilt bathroom window. Attached are the images of the existing damaged balancer...

It seems to be 14 Inches long and with a 1/2 inch track. The top looks to be a "19-005" but I am unsure of the bottom & Series..

Please get back to me so I may place an order for the replacement 2 units.

Regard Pierre

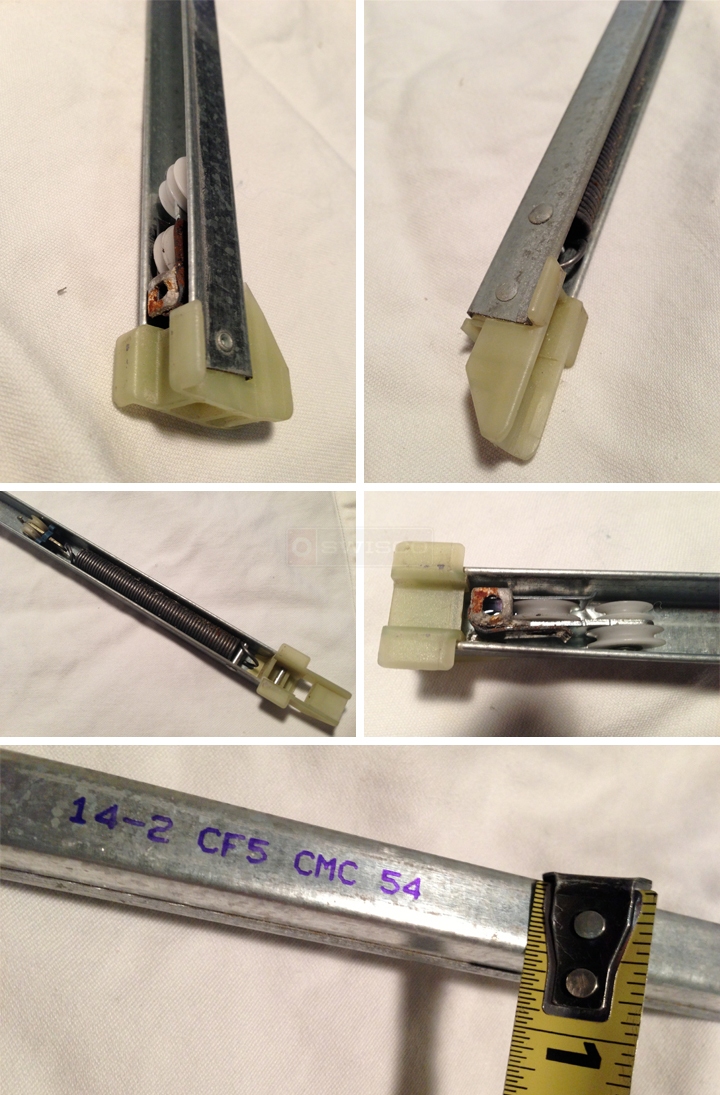

User submitted photos of a window balance.

6 Replies

Paul from SWISCO

Feb 19, 2013 8:57 am

Good morning, Pierre! These pictures are great. I think you're looking at a Series 385 here, though I'd like you to confirm that the length of the metal channel is 14". For a stamp that reads 14-2, I would think the metal channel length would actually be 15". Double check and let me know!

Quick Learner from Burbank Ca.

Feb 19, 2013 11:05 am

Hello there.
Thank you for the fast response,...
Your experience is correct.
The metal track is in fact 15" in length,.. !!!

I am in need of 2 balancers..
Please get back to me so I may place my order.

Regards Pierre..

Paul from SWISCO

Feb 19, 2013 12:36 pm

Great. In that case, our S385-15 looks like a good match. Let me know what you think.

Quick Learner from Burbank Ca

Feb 19, 2013 1:28 pm

Paul,…
What weight setting do I use?
It is a small vinyl type bathroom window 18 x 22 ish??
"1410" or "1420"
Thanks Pierre

Paul from SWISCO

Feb 19, 2013 1:43 pm

Considering your stamp is 14-2, I'd go with 1420. You might want to weigh your window sash to make sure that it meets the rating shown for that option, though, just in case.
