Window Sash Balancer Replacement

A home owner from Las Vegas says:
Hello! The balancers in my windows are pretty worn down. I am looking to replace them and wanting to be sure I order the correct part. I would appreciate help pointing me in the right direction. Thank you!
Thumbnail of the uploaded file named IMG_5757.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

We can help but we'll need you to remove an undamaged balance with the end fittings intact in order to determine a replacement. The video below will walk you through exactly what we'll need to see.

A home owner from Las Vegas says:
I have attached new photos as requested!

Thank you for your help.

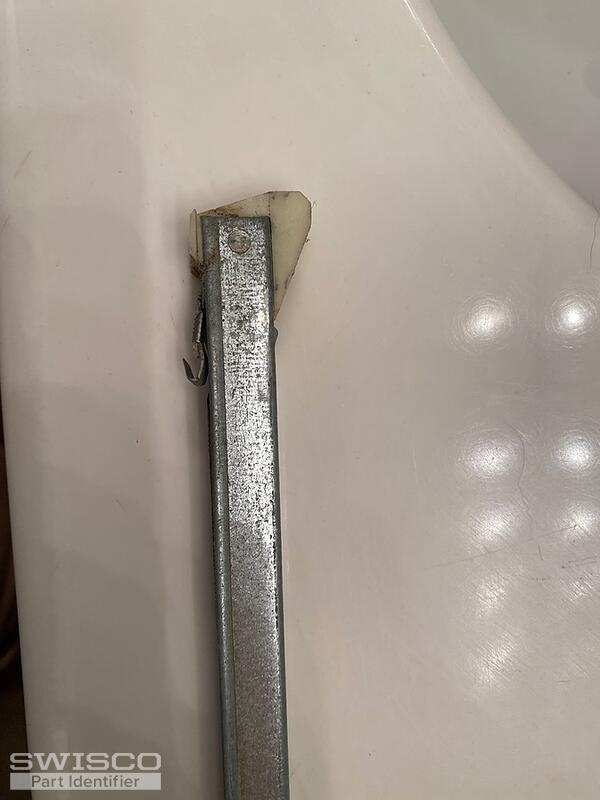

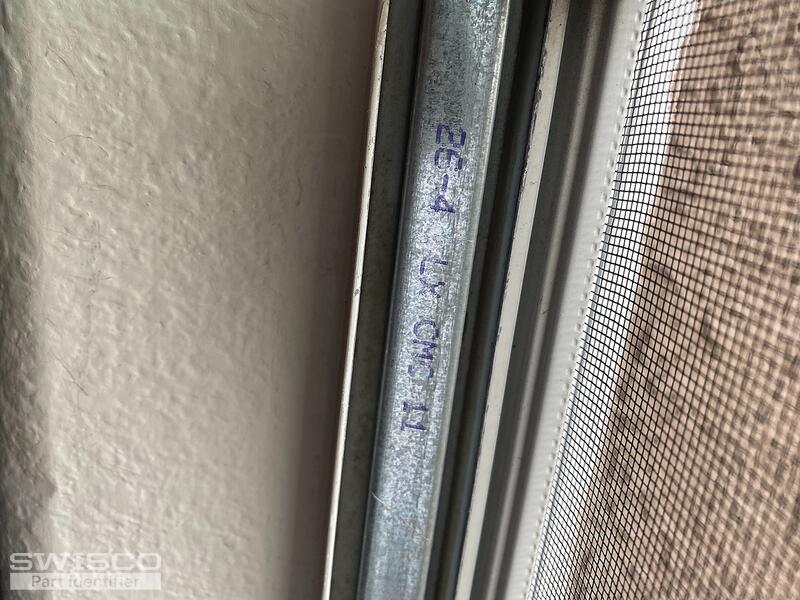

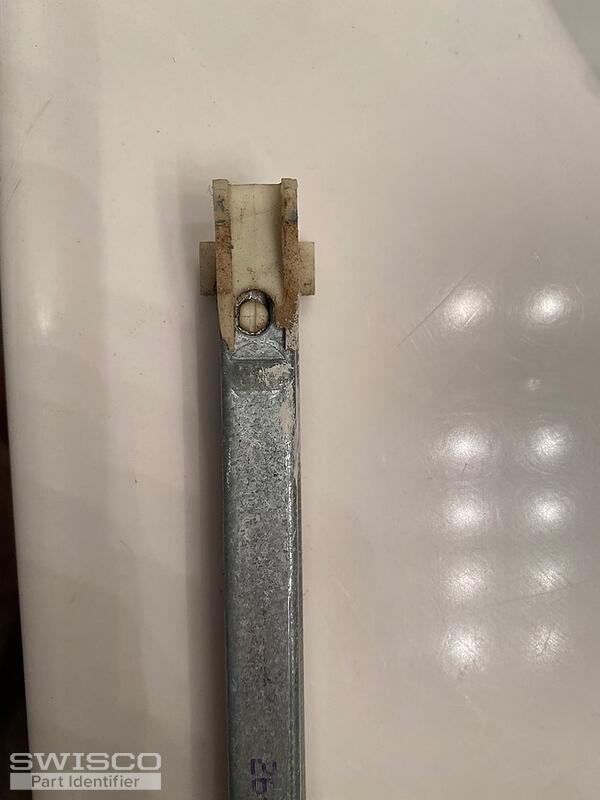

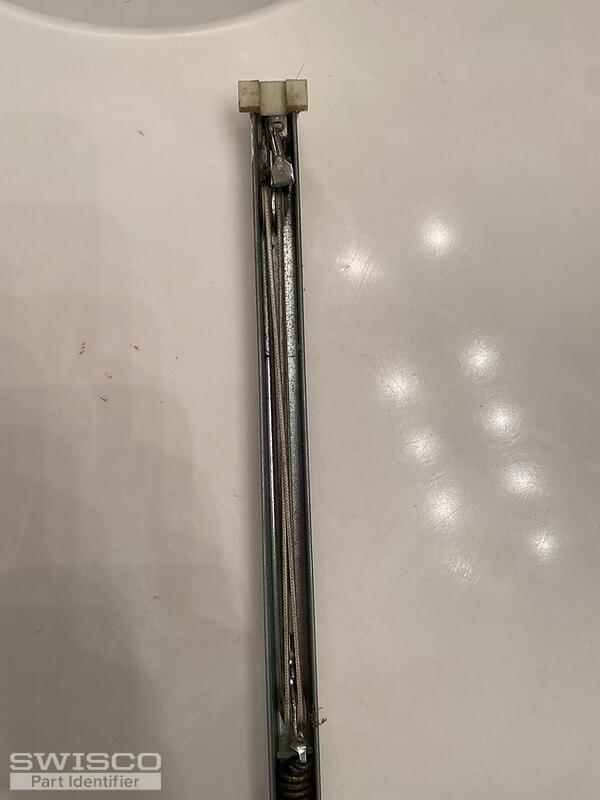

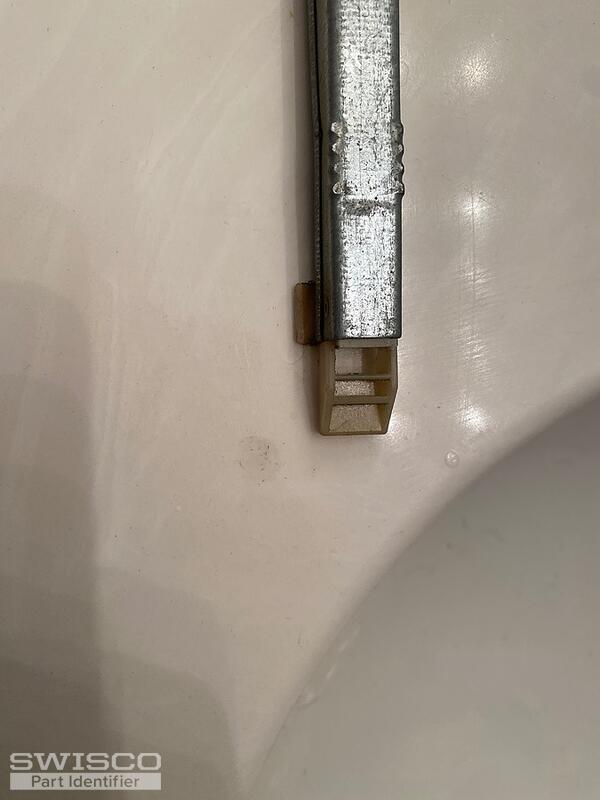

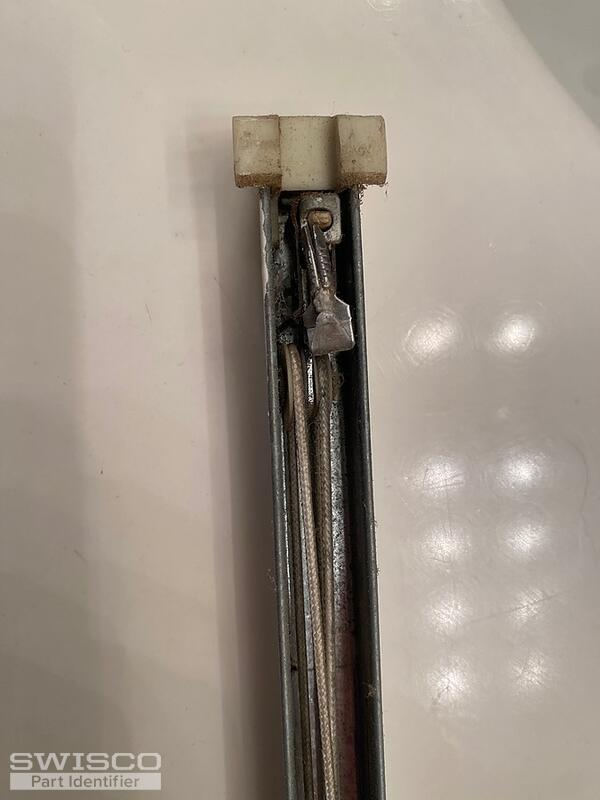

Thumbnail of the uploaded file named B2D2D2FB-2546-441E-BBE3-02B0840261B3.jpeg
Thumbnail of the uploaded file named F5289B36-80F9-4B60-AA47-D9EBD2B9A198.jpeg
Thumbnail of the uploaded file named 1A0FDBA7-60A8-454A-926C-D2DFE5136971.jpeg
Thumbnail of the uploaded file named 6FA9590F-E3EA-4F31-9CF5-4E71546D7C8E.jpeg
Thumbnail of the uploaded file named 8478CBA6-3E92-45BE-B4C6-CE36FBC65FCE.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Thanks for the additional pictures! This is a huge help. It appears you have either our S380-27 or S385-27 channel balance. The important difference between these two parts is the depth of the bottom shoe. The Series 380 comes attached with a 1" deep shoe and the Series 385 comes with a 1-3/32" shoe. You’ll need to measure as shown below to determine which one matches what you have now. You will also need to select the 2640 spring strength option.

Let me know if you have any questions!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
