Window Sash Balances

Home Owner from Waverly, Iowa

Aug 12, 2024 6:59 pm

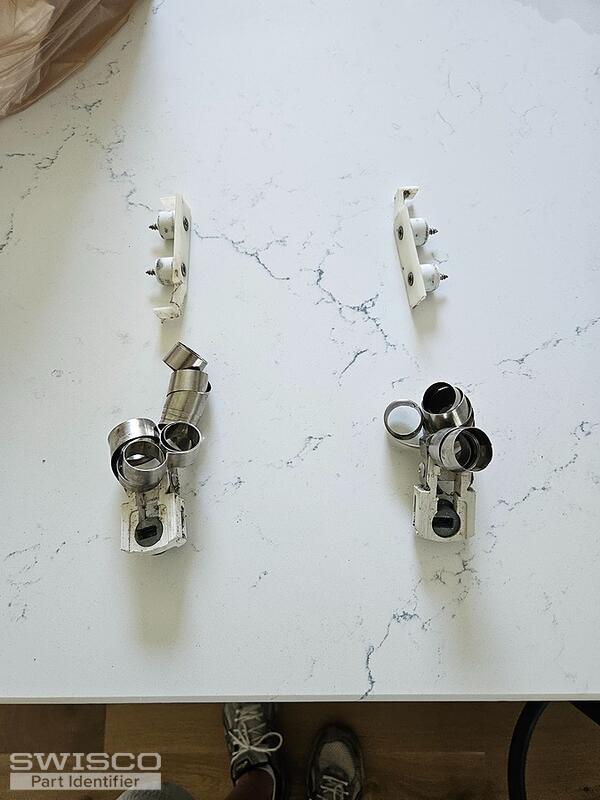

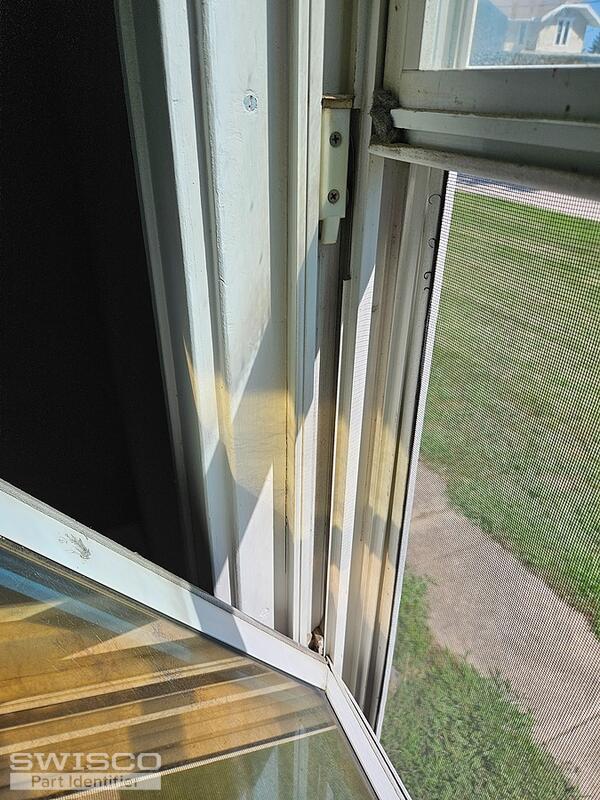

These two balances were broken in a double hung, tilt window; upper sash. I've looked everywhere on the windows and cannot find a manufacturer name, nor a part number anywhere. Hoping you can identify this part and help me to find replacements.

Thanks,
Bob

2 user uploaded images

10 Replies

Emily from SWISCO

Aug 14, 2024 2:50 pm

Hey there Bob.

This looks like an older version of the 15-180 shoe. The Series 190 are the compatible coil balances. Take a look at the specifications and let us know if you have any questions.

Home Owner from Waverly, Iowa

Aug 14, 2024 7:50 pm

Hey Emily,

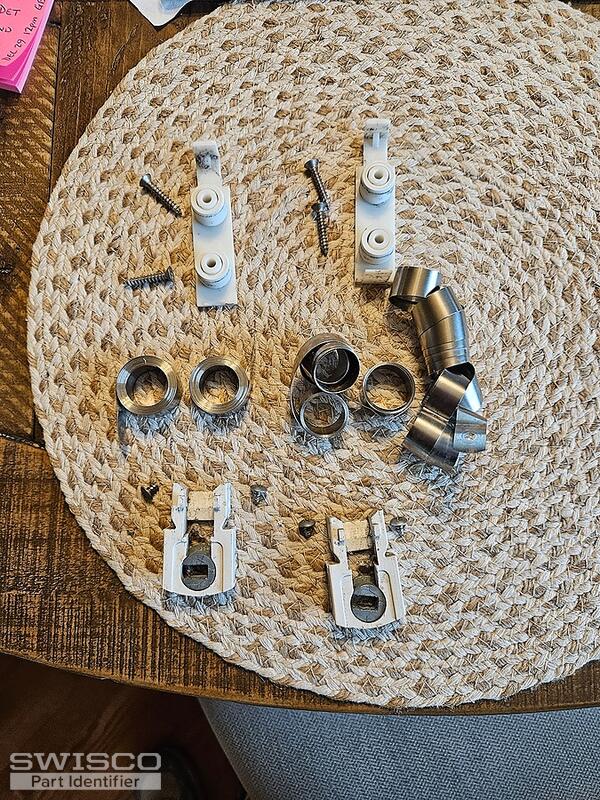

Thank you for the info. I clicked on the links you provided. I'm pretty sure the shoes are in good shape. It's the steel springs that I'm looking to replace. The "Series 190" link is asking that I choose a "balance stamp" from my original spring. There is no stamp anywhere on these springs. At a loss here. Can you help?

1 user uploaded image

Emily from SWISCO

Aug 15, 2024 7:57 am

Certainly. Since there aren't any stamps on the old springs, you'll have to weigh the window sash and divide the weight by the total number of springs in the window to determine the proper coil weights. Feel free to get back to us with the sash weight and we can calculate what you'd need from there.

Home Owner from Waverly, Iowa

Aug 16, 2024 9:27 am

Hey Emily,

The window sash weighs 18.6 lbs. I assume there would be two coils per side?
Let me know what to do next. Thanks so much for your help thus far!

Emily from SWISCO

Aug 16, 2024 10:31 am

No problem, I'm happy to help!

With this sash weight, we recommend using one S190-440 4-pound spring and one S190-540 5-pound spring on each side of the window. With 9 pounds of support per side, this would total 18 pounds of overall support. You can reuse your old double coil spring support and bushing if they're in good shape.

Let me know if you have any questions!

Home Owner from Waverly, Iowa

Aug 16, 2024 11:24 am

Awesome!! Thanks so much Emily!! I'll go ahead and order the 440's and 540's. Looks like the support and bushings are in good shape.

Emily from SWISCO

Aug 16, 2024 12:08 pm

You're very welcome! Good luck with the repair. I'll be here if you need anything else!

Home Owner from Waverly, Iowa

Aug 24, 2024 6:17 pm

Hey Emily,
Just wanted to let you know that I received the parts yesterday, and I repaired the window today and it's perfect!! Thank you for your help in getting me the right parts. You were fantastic!!

Sincerely,
Bob

Emily from SWISCO

Aug 26, 2024 7:57 am

Thank you for the update, Bob! This is great to hear, and I'm glad the repair went well. Please don't hesitate to reach out if you have any further hardware repairs!
