Window Sash Pivot Bars

A landlord from Dover, NH, US says:
February 22, 2023

Good morning!

I am looking for the L & R versions of the pictured pivot bar. Is that something you can source for me?

Thank you!

Faith

Thumbnail of the uploaded file named IMG_0412.jpg
Thumbnail of the uploaded file named IMG_0413.jpg
Thumbnail of the uploaded file named IMG_0414.jpg

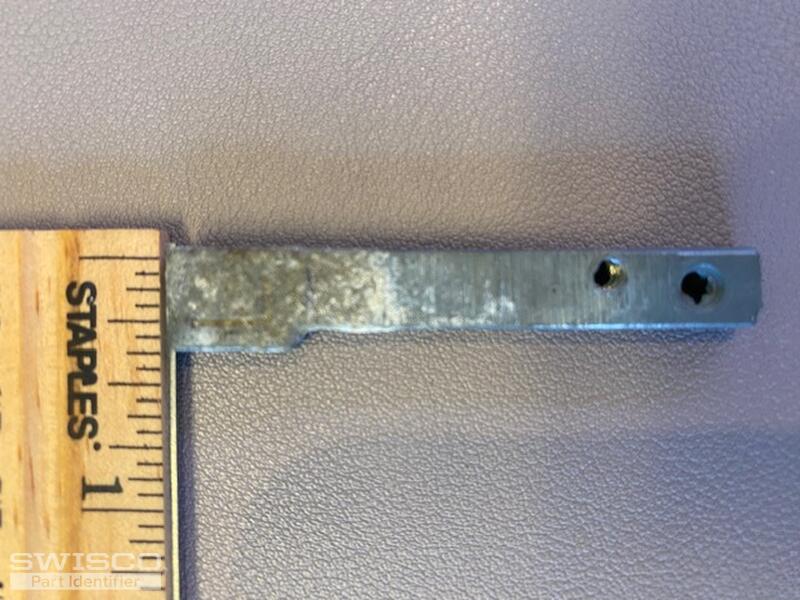

Thumbnail of the uploaded file named IMG_0415.jpg

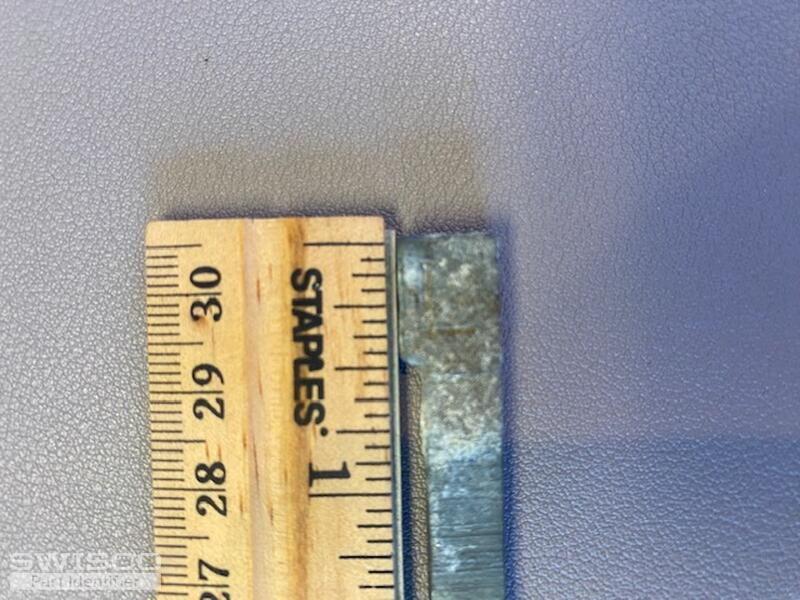

Thumbnail of the uploaded file named IMG_0416 (1).jpg
Profile picture of Jasmine
Jasmine from SWISCO responded:
February 23, 2023

Thanks for reaching out! I haven't seen this pivot bar in my experience but we may be able to recommend a suitable replacement. Although, it would not be an exact match.

To start, is any part of this pivot bar broken off? Also, may I please see a photo of the pivot shoe this pivot bar interacts with?
A landlord from Dover, NH, US says:
February 23, 2023
I will have my carpenter get photos tomorrow and then I will post them. Thank you!
A landlord from Dover, NH, US says:
February 24, 2023
Here are the photos you requested.
Profile picture of Jasmine
Jasmine from SWISCO responded:
February 27, 2023

The shoe in your window appears to be part 15-105 which is compatible with our 26-042 pivot bar.

This is not specified for right or left. Take a look at the measurements below and compare them to your original set to determine if this would be the right fit.

Alternate image for 26-042
Alternate image for 26-042
A landlord from Dover, NH, US says:
February 27, 2023
Good morning! Thank you for that!
The bar you sent me appears to be too long, unless that doesn't matter.
Please let me know.
Profile picture of Jasmine
Jasmine from SWISCO responded:
February 27, 2023

So long as the measurement for the installation matches and the pivot bar isn't sticking too far out of the window to connect to the pivot shoe, it should work fine as a replacement.

Unfortunately, it is the closest replacement recommendation we have.
Pivot Bar, 3"
Pivot Bar, 3"
26-042
$2.75
