Window Sash Tilt Latches

A professional from philadelphia says:
June 24, 2020

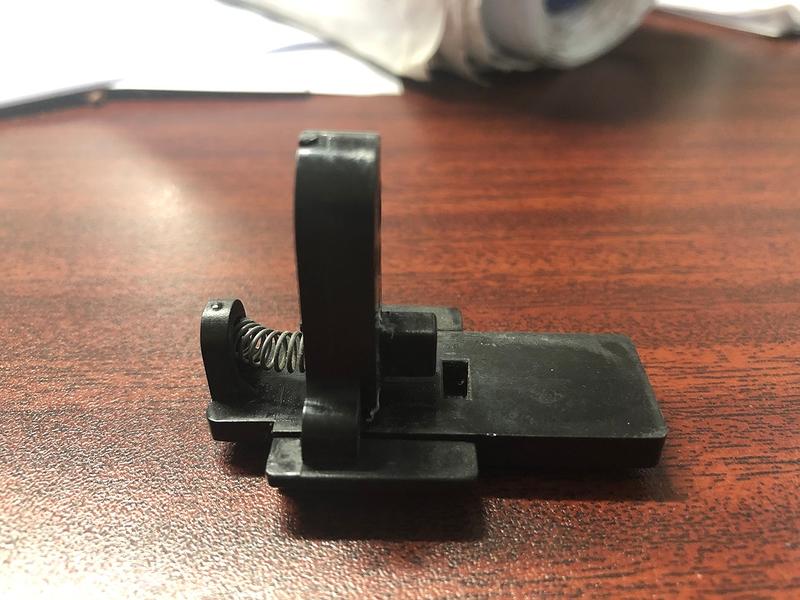

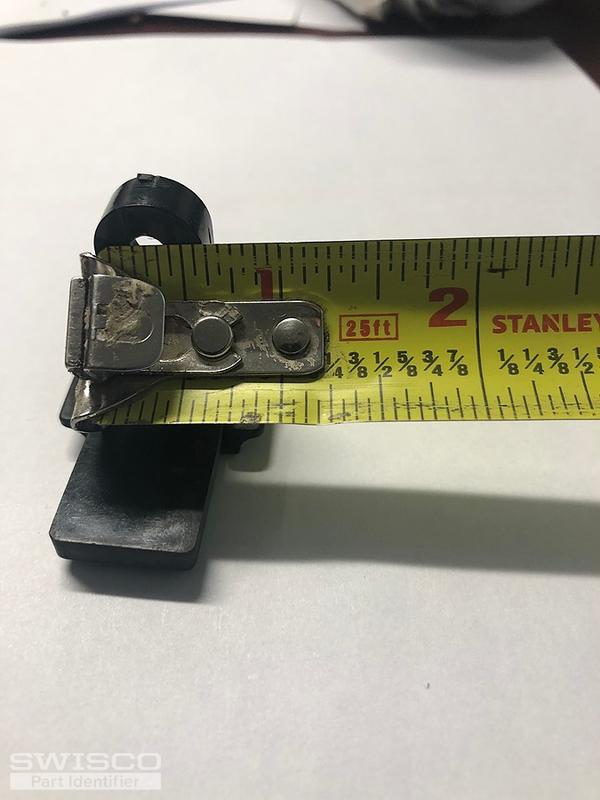

Hi Wanted to know if you guys can ID this Window Sash Tilt Latche
Thumbnail of the uploaded file named IMG_3175 (1).jpg
Thumbnail of the uploaded file named IMG_3174.jpg
Thumbnail of the uploaded file named IMG_3173.jpg
Thumbnail of the uploaded file named IMG_3176.jpg
Thumbnail of the uploaded file named IMG_3175.jpg
Profile picture of Tom
Tom from SWISCO responded:
June 29, 2020

Thank you for your patience during this busy season. Unfortunately, the manufacturer of your top tilt latches have discontinued them and offered no replacement. As far as I know, there is no exact match on the market.

We suggest removing the old tilt latch, reinstalling the top side corner screw to keep the sash together, and then installing top mounted tilt latches like our 26-193 and 26-194 on top. You can use a #6 pan head screw like 33-089. Just be careful not to drill into the glass. The video below will go into more detail as to how this can be done.
LH Rollyson Tilt Latch, 2-5/8"
LH Rollyson Tilt Latch, 2-5/8"
26-193
$2.27
RH Rollyson Tilt Latch, 2-5/8"
RH Rollyson Tilt Latch, 2-5/8"
26-194
$2.27
#6 x 3/4" Phillips Pan Head SS Screw
#6 x 3/4" Phillips Pan Head SS Screw
33-089
$0.21
Replace an Internal Latch with a Surface Mounted Latch [1080p]
Replace an Internal Latch with a Surface Mounted Latch [1080p]
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
Styles of Tilt Window Latches
Styles of Tilt Window Latches
GUIDE
READ >
