Window Sash Top Cam

Home Owner from Miramar, FL

Jan 14, 2017 4:16 pm

Hello, Can't seem to find a window Sash Cam part that matches these, the ones I have appear to be much "thinner" than anything I can find on line. My home is in south Florida, and I'm sure these are the absolute cheapest windows a builder could use. The window channel balances are marked with 2320 BSI (or BSL) with a small HM after. Welcome your thoughts!

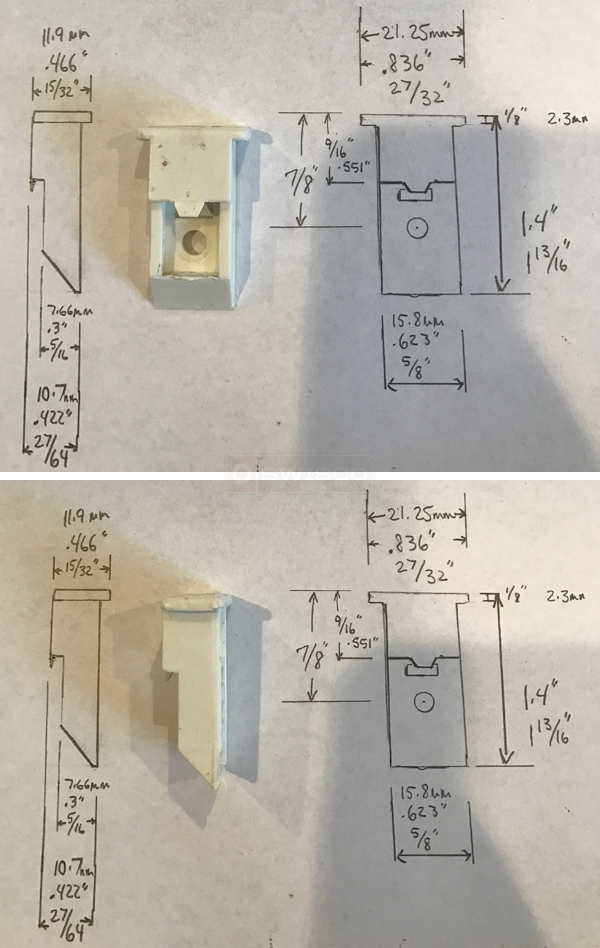

User submitted photos of a top sash guide.

3 Replies

Paul from SWISCO

Jan 19, 2017 10:10 am

Thanks for posting. The top sash guide appears to match our 18-166. See what you think. I'm afraid I can't confirm what balance you have based on the top sash guide alone, whoever. You may have our Series 385 but look it over to confirm.

Quick Learner from Miramar, FL

Jan 19, 2017 11:46 am

Thank you very much, I agree they are dimensionally similar (or at least close enough with measurement error and a piece of sandpaper!). I was concerned about the "open" box on the 18-166 piece v. the closed box on my piece. I suppose that is not structural, so I will go ahead and give it a try. Thanks!
