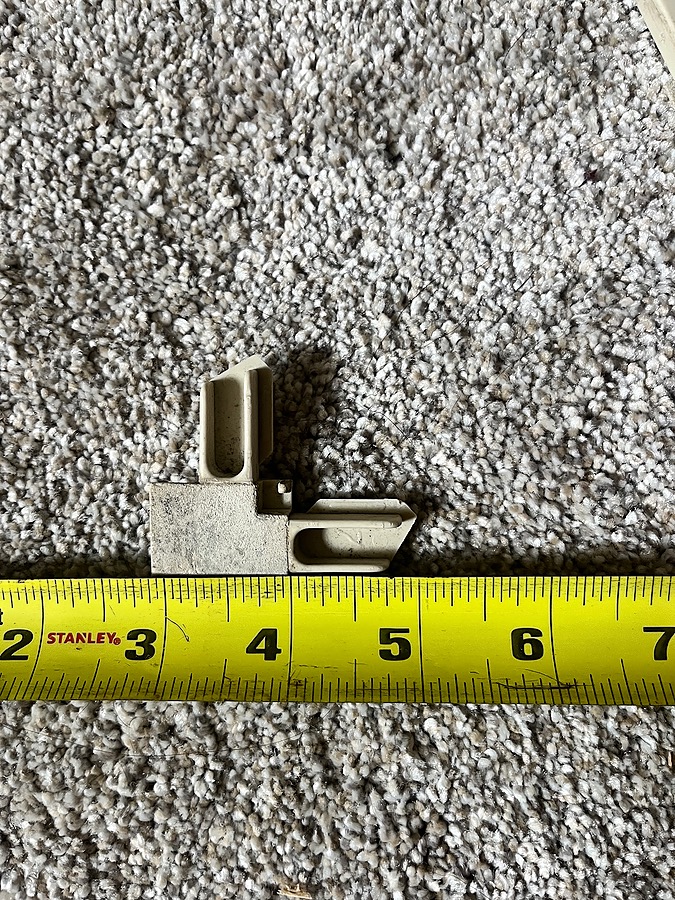

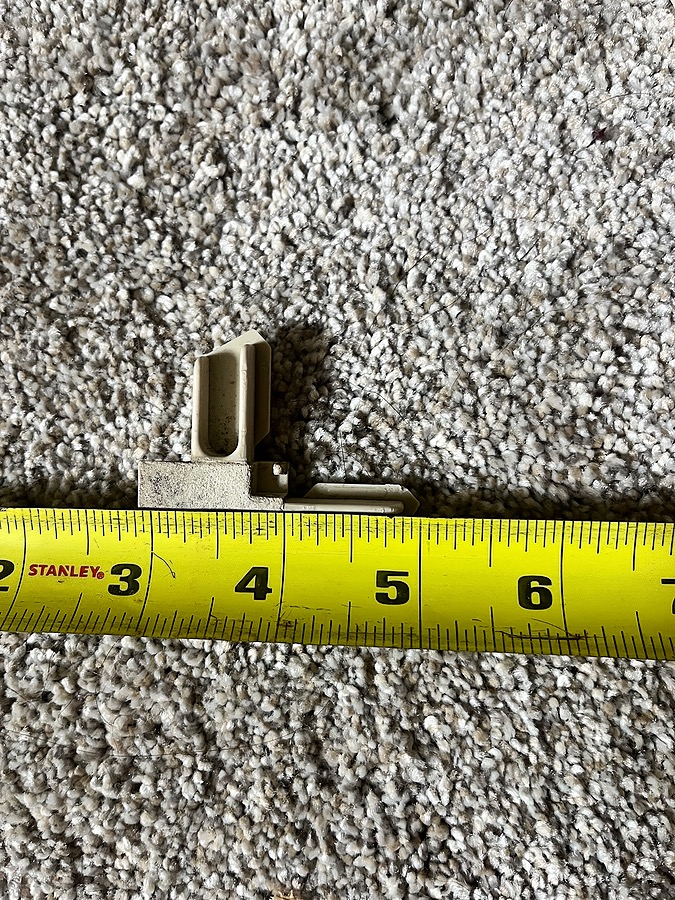

I am rebuilding my window screens and noticed some of the square cut corners are broken or in bad shape. I am having trouble confirming the correct size. The bottom pieces also have a wedge to hold them into place. Dimensions shown in images.
color is tan.
Window Screen Corners
Home Owner from Lafayette Indiana
Oct 2, 2026 3:08 pm
5 user uploaded images
6 Replies
Emily from SWISCO
Oct 6, 2026 9:38 am
Hello! Thank you for reaching out to us.
We're happy to look into this, but we will need you to confirm the written-out thickness of the screen frame. I'm afraid it's hard to garner accurate measurements from photos of a tape measure. Once we know that, we can determine whether we have a comparable option.
Home Owner from Lafayette Indiana
Oct 6, 2026 7:39 pm

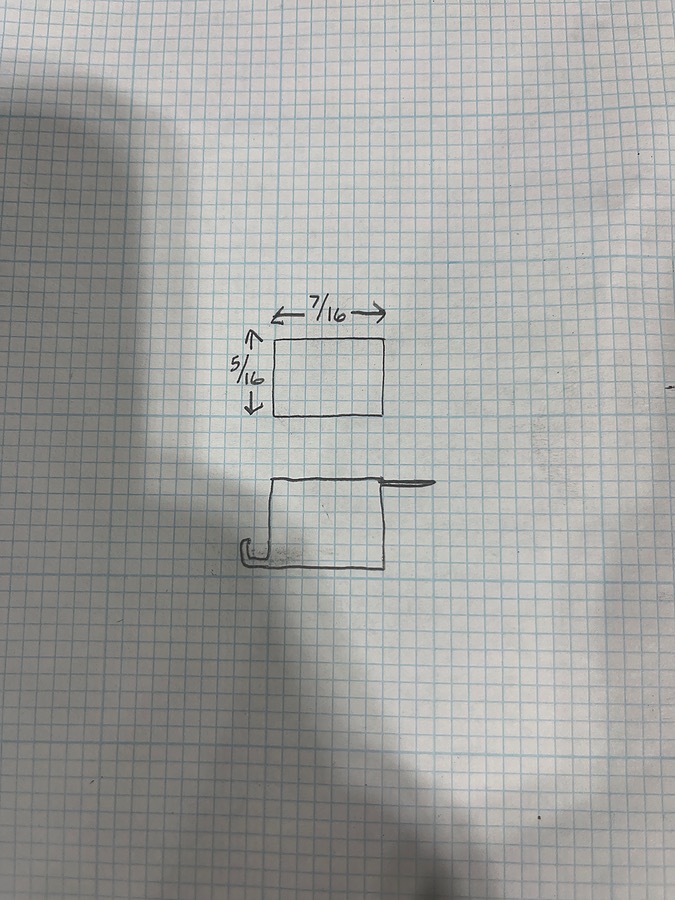

See dims in attachment. 7/16 x 5/16
1 user uploaded image
Dave Sr. from SWISCO
Oct 8, 2026 11:45 am
Hey there, maybe I can help. Looking at your photos and these dimensions, I think our 95-206 may be worth considering. This has the same kind of clip lip in the back, and is used on 3/8" thick x 3/4" wide screen frames. Look it over and see if you think you could use this for your application.
Home Owner from Lafayette Indiana
Oct 8, 2026 8:16 pm
3/4" wide seems to be a bit wide for my needs. Is this measuring outside to outside on the width of the frame? I measured the internal dimension and got 7/16.
Dave Sr. from SWISCO
Oct 9, 2026 11:26 am
The 95-206 is the closest corner we carry to the one you need. The measurements are shown below. You may need to trim or file the corner leg to fit your screen frame, but even then, we can't promise functionality. Keep in mind that altered items cannot be returned for a refund. In any case, our return policy can be found here.
Alternate image for 95-206
