Window Screen Knife Latch Replacement

A home owner from Maryland, US says:
September 1, 2022

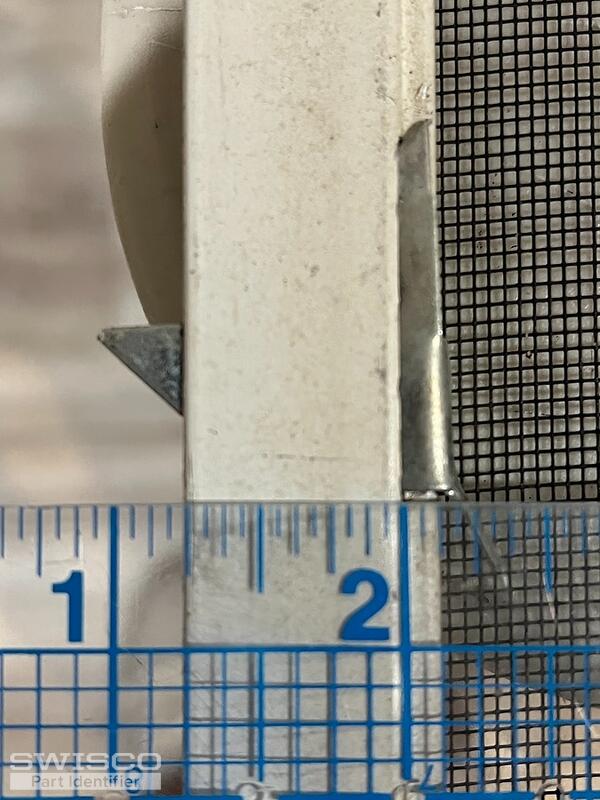

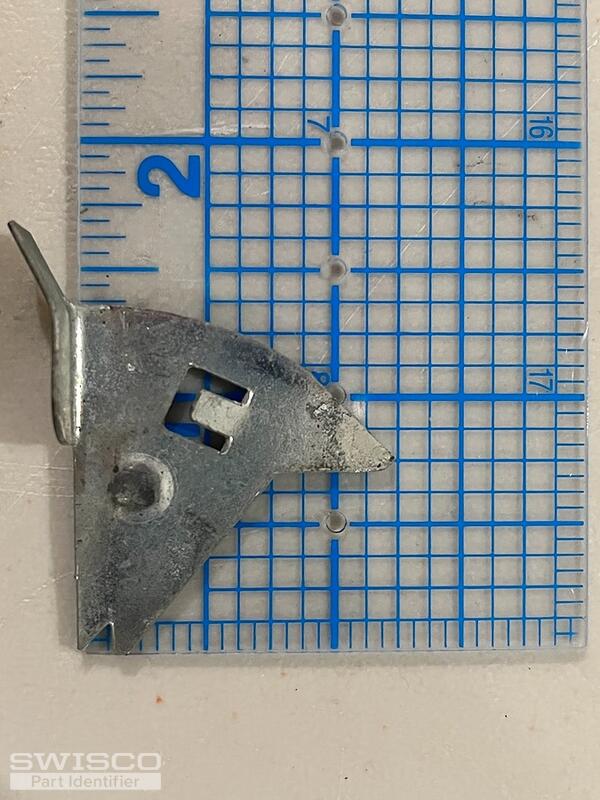

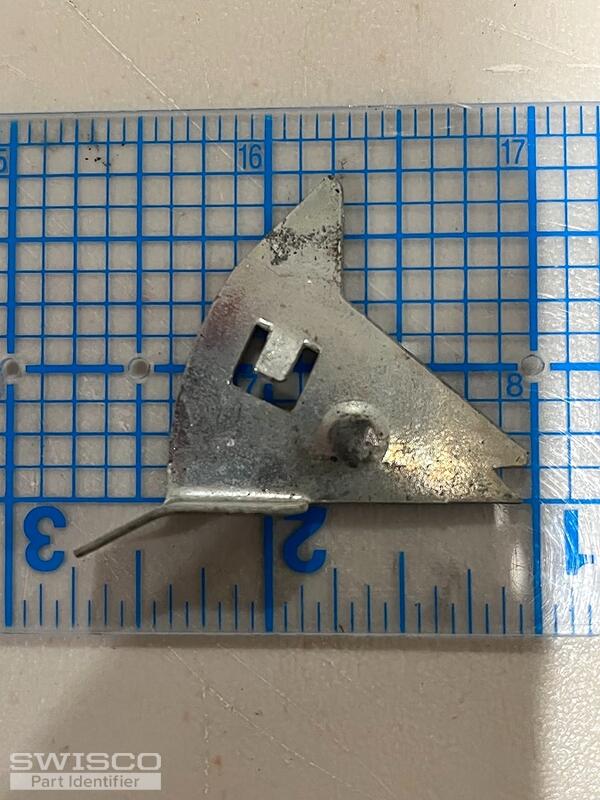

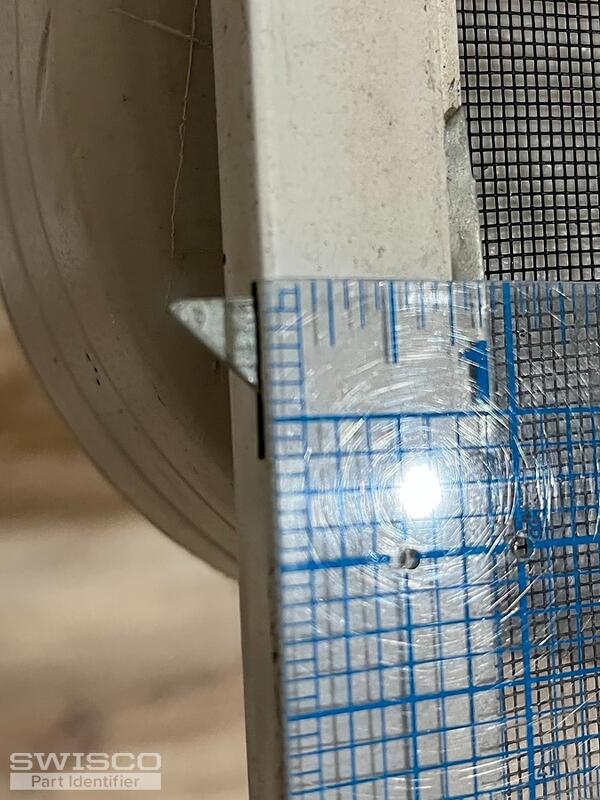

I'm looking to replace these parts, because most of them have rusted out. I'm also wondering if there is a specific removal tool. I have a thin blade that worked okay to remove this one, but it wasn't terribly easy. I suspect product 90-227 (Large Butterly Latch) will work, but only one dimension is shown in the product details.
Thumbnail of the uploaded file named IMG_5549.JPG
Thumbnail of the uploaded file named IMG_5547.JPG
Thumbnail of the uploaded file named IMG_5546.JPG
Thumbnail of the uploaded file named IMG_5545.JPG
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
September 7, 2022

To remove a knife latch  like this, what I usually do is take a very small flat blade screw driver and try to depress the clip on the side of the latch. You might also need to open up the cut out in the screen frame. The key is to just take your time so as to not to damage the screen frame.
Large Butterfly Latch, Pair
Large Butterfly Latch, Pair
90-227
$2.97
How to remove screen knife latches
How to remove screen knife latches
VIDEO
WATCH >
