Window Sliding

Hello,

We'd be happy to help but we would need to see your pivot shoe and coil springs removed from the window to confirm if we carry a suitable replacement. See the videos related on this page to help you through the process. Thank you!

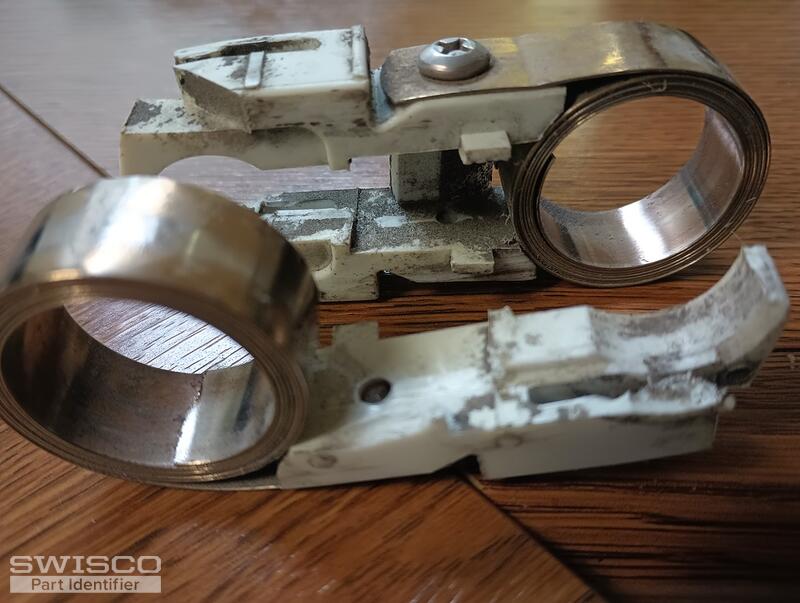

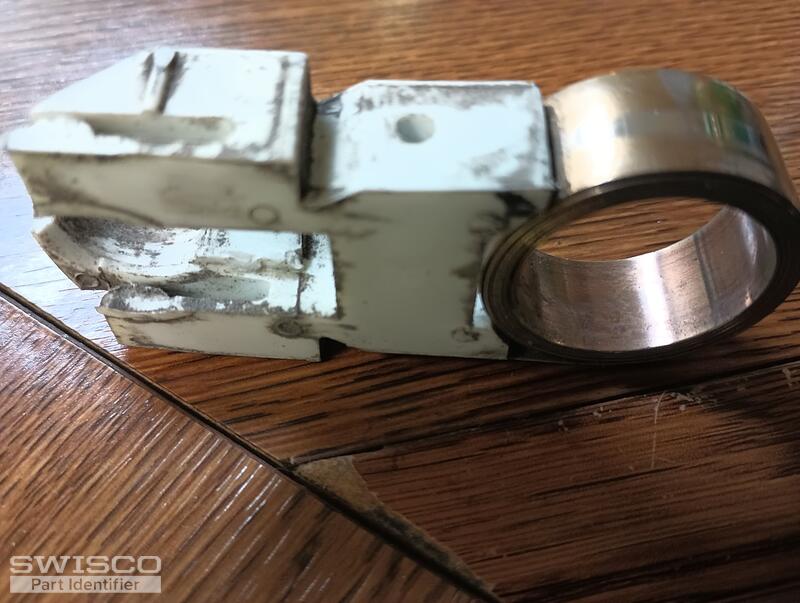

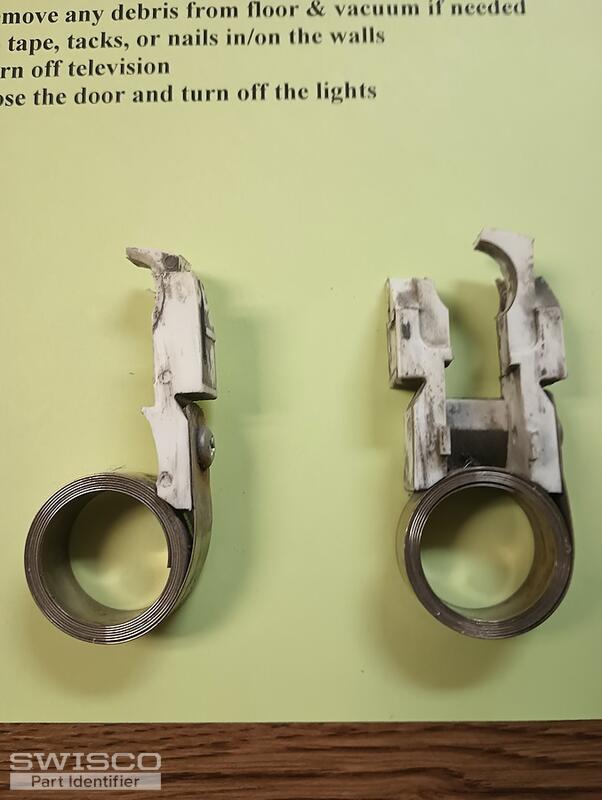

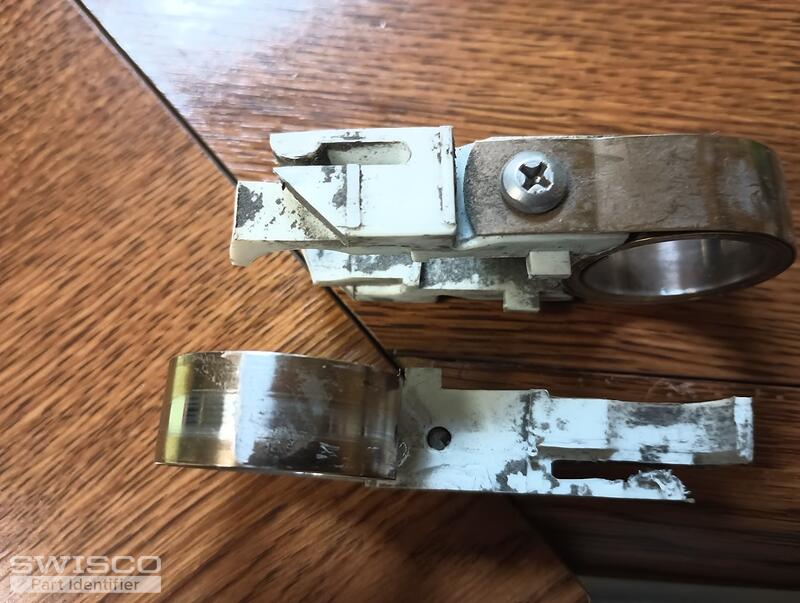

Thanks for getting back to us. Your pivot shoe resembles the 15-180 shown below, which uses the S190 coil springs and supports related on this page. There should be numbers stamped on your original coils that correspond to one of our strength options.

Alternate image for 15-180

Your 932 coil stamp would generally correlate to the S190-940, which would support a sash that weighs about 36 pounds if your window uses two coils on each side.
