Window Spiral Balance replacement (2003 Home)

Handy Person from Georgia

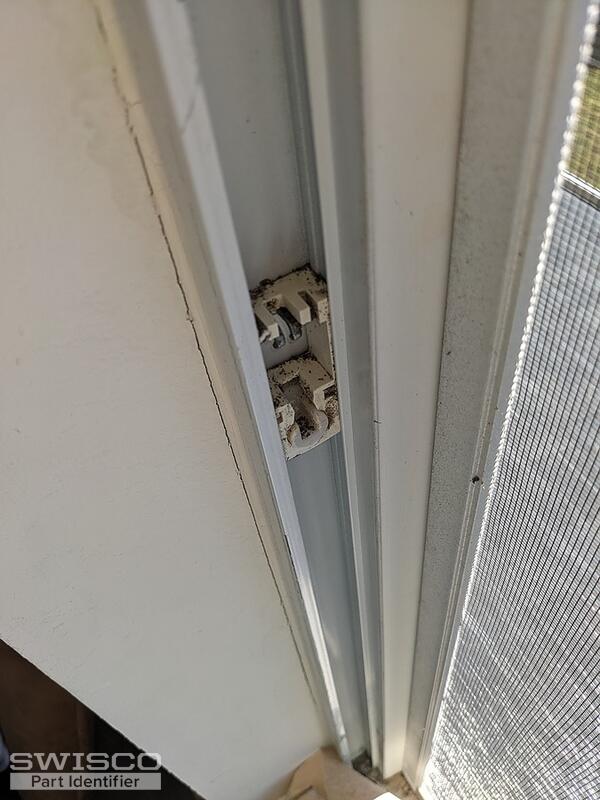

Looking for correct window spiral balance replacement for windows:
Spiral Tilt Balance specs:- Color: offwhite- Width: 7/16"- Tube Length: 28.5"
Window Sash spec:- Weight: 18.8 lbs- Length: 33 1/8 " (glass: 31")- Height: 29 5/8 " (glass: 26.5")
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hey there,

Thanks for posting! The spiral balances you have here can be replaced with the S900-29 Spiral Balance. You'll need to select either the red tip (supports 10 to 22lbs) or the green tip (supports 14 to 26lbs) for your 18.8lb sash.

If you are looking to replace the pivot shoe, you'll need to remove it and confirm the measurement for the width and thickness of the shoe.
